US280035.XD7: System 28 4'x5' (48"x60") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration

The System 28 Welding Table Series was created with Heavy Duty Applications in Mind.

All System 28 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.
Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

Specs and Features

of the System 28, 8.7
Imperial Series Welding Tables

Specs & Features
of the System 28, 8.7 Imperial Series
Welding Tables

Welding Table Specs and Features:

  • Overall Tabletop Size: 4' x 5' (48" x 60")
  • Borehole Diameter: Ø 28mm (1-1/10")
  • Welding Table Series: Professional Extreme 8.7 Series
  • Welding Table Material Thickness: Approx. 15/16" to 1-1/16"
  • Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
  • Table Surface Hardness: 450-850 Vickers
  • Official Siegmund Welding Table Part No.: US280035.XD7
  • Maximum Weight Load: 10,090 lbs. (Based on Even Distribution)
  • Approximate Table Weight: 1,450 lbs.
  1. Boreholes on the Surface are in a Diagonal Grid Configuration.
  2. Boreholes have a diameter of 28mm (1-1/10"), Boreholes have a 1/10" Radius.
  3. Radius 1/10" on the table edges and 1/4" on the corners.
  4. Height of table side is 7-7/8" - Borehole in Diagonal Grid.

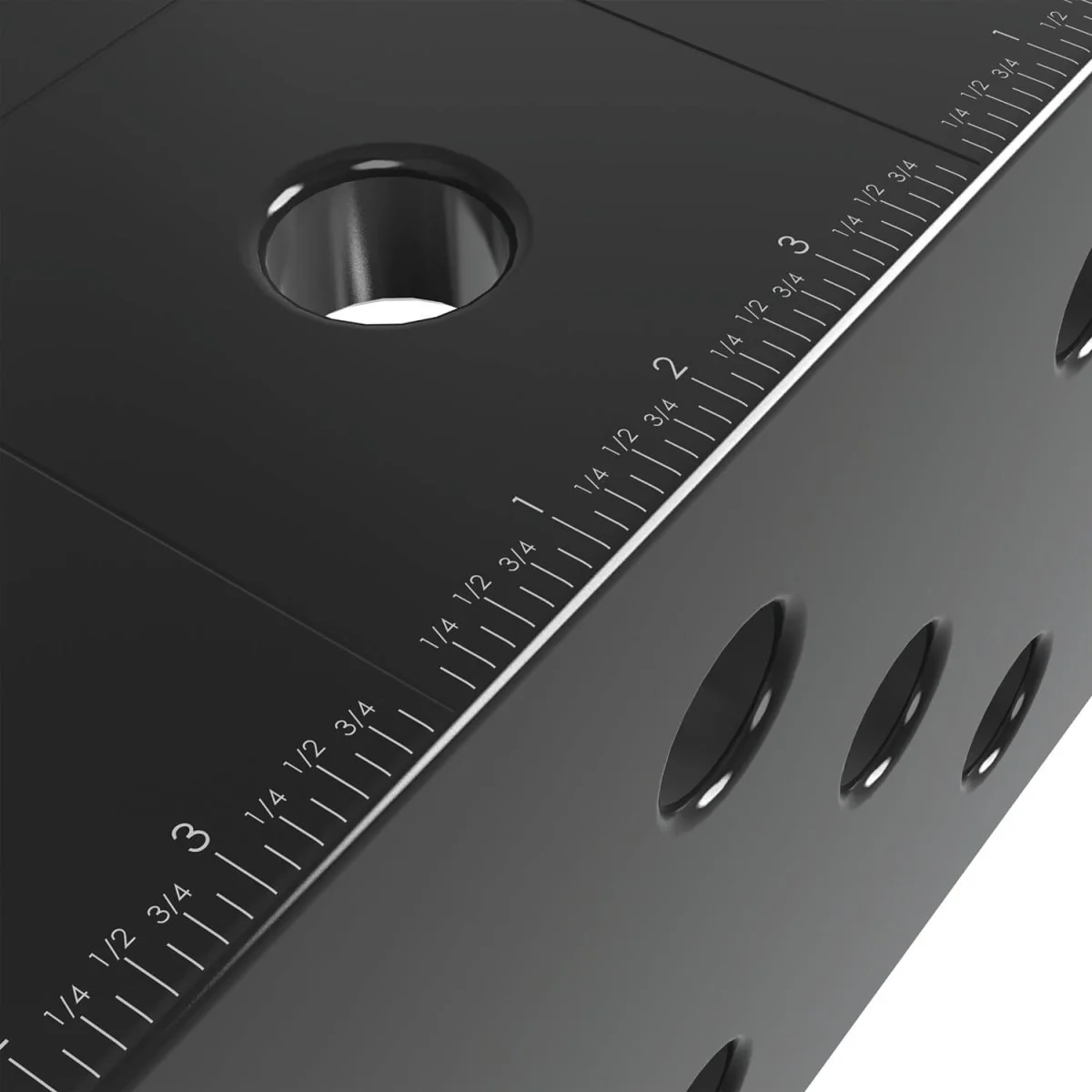

  5. INCH Scale Engraved on the Surface.

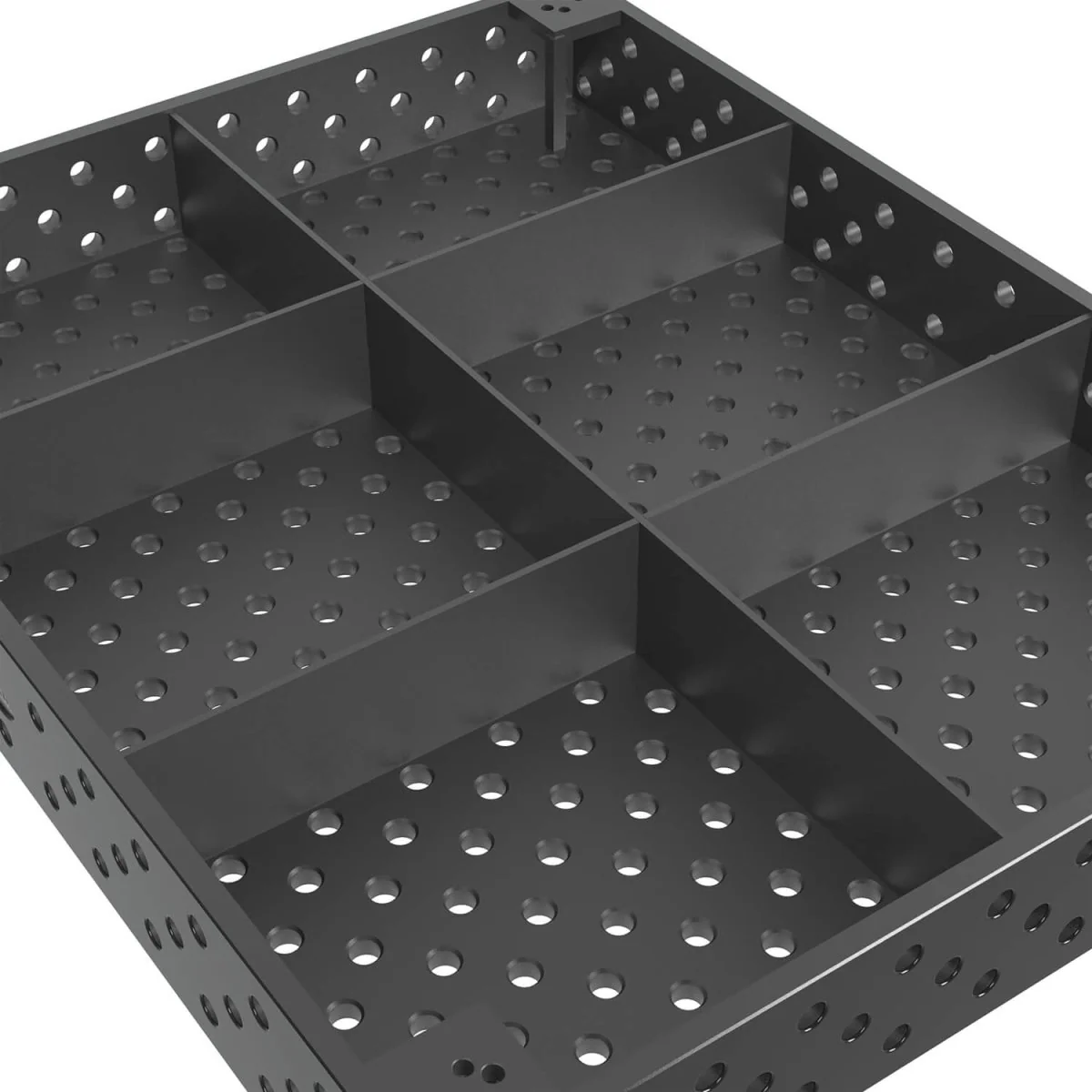

  6. Bottom of Structure has Reinforced Ribbing.

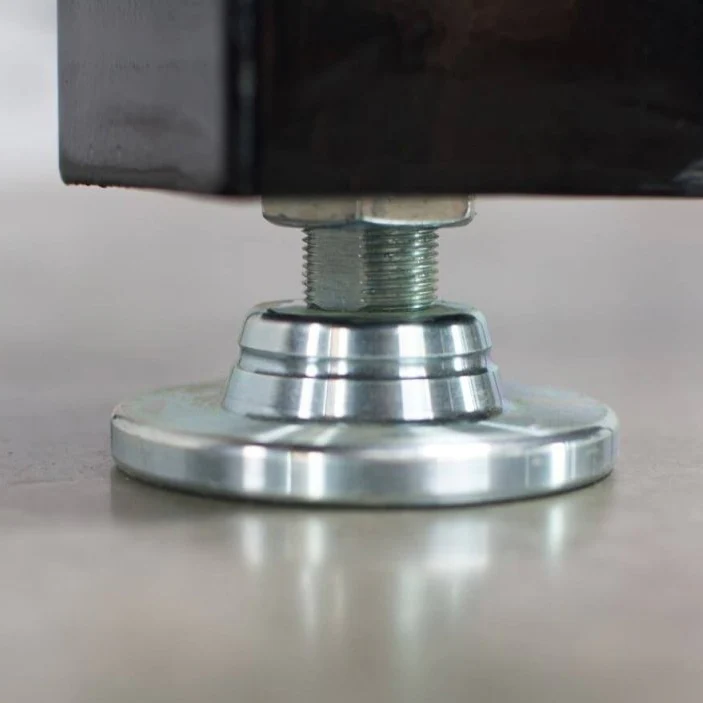

Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height

1. Standard Leg

US280858.X

4,400 lbs.

28"

36"

2. Height Adjustable Leg

US280877.XX

4,400 lbs.

22"-36"

30"-44"

3. Leg with Casters and
Locking Brakes

US280876.XX

1,760 lbs.

36"

36"

4. Height Adjustable Leg
with Casters and Locking Brakes

US280879.XX

1,760 lbs.

22"-30"

30"-38"
Select Table Legs
From $2,765.35

Original: $7,901.00

-65%
US280035.XD7: System 28 4'x5' (48"x60") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration—

$7,901.00

$2,765.35
