Specs and Features
of the System 28, 8.7 Imperial Series Welding Tables

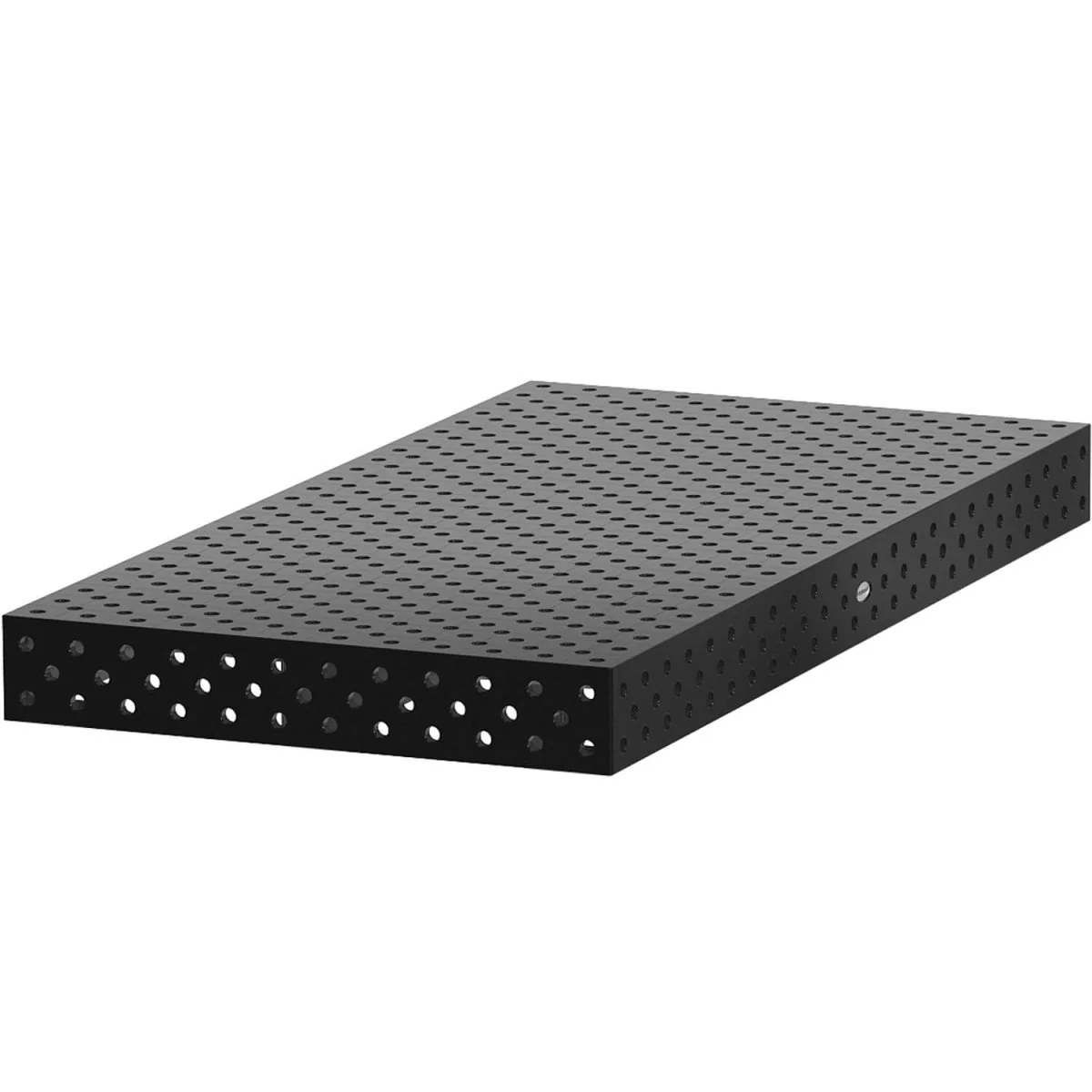

US280030.XD7: System 28 4'x8' (48"x96") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration
The System 28 Welding Table Series was created with Heavy Duty Applications in Mind.
All System 28 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.
Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.
Specs & Features
of the System 28, 8.7 Imperial Series
Welding Tables
Welding Table Specs and Features:
- Overall Tabletop Size: 4' x 8' (48" x 96")
- Borehole Diameter: Ø 28mm (1-1/10")
- Welding Table Series: Professional Extreme 8.7 Series
- Welding Table Material Thickness: Approx. 15/16" to 1-1/16"
- Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
- Table Surface Hardness: 450-850 Vickers
- Official Siegmund Welding Table Part No.: US280030.XD7
- Maximum Weight Load: 15,125 lbs. (Based on Even Distribution)
- Approximate Table Weight: 2,190 lbs.

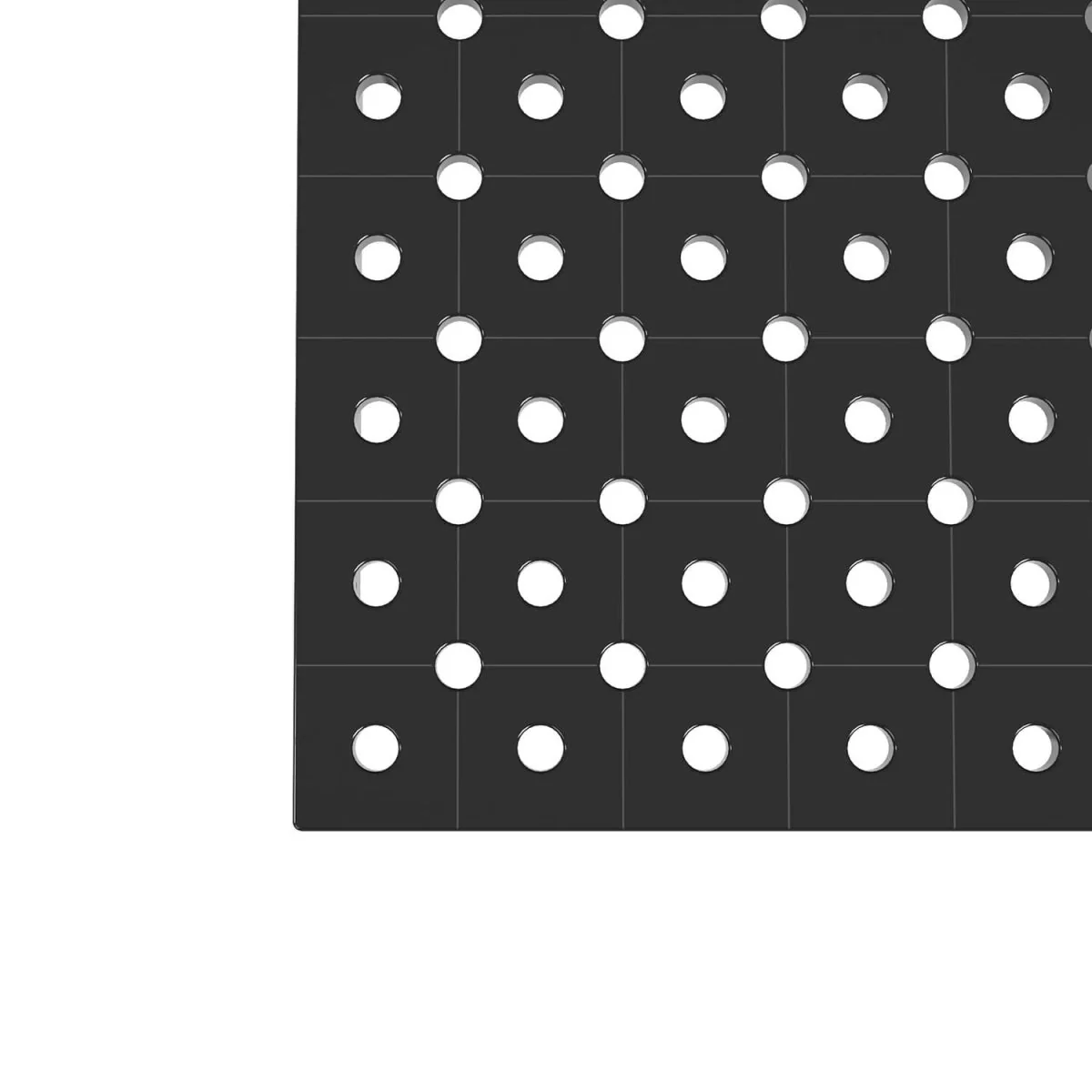

- Boreholes on the Surface are in a Diagonal Grid Configuration.
- Boreholes have a diameter of 28mm (1-1/10"), Boreholes have a 1/10" Radius.

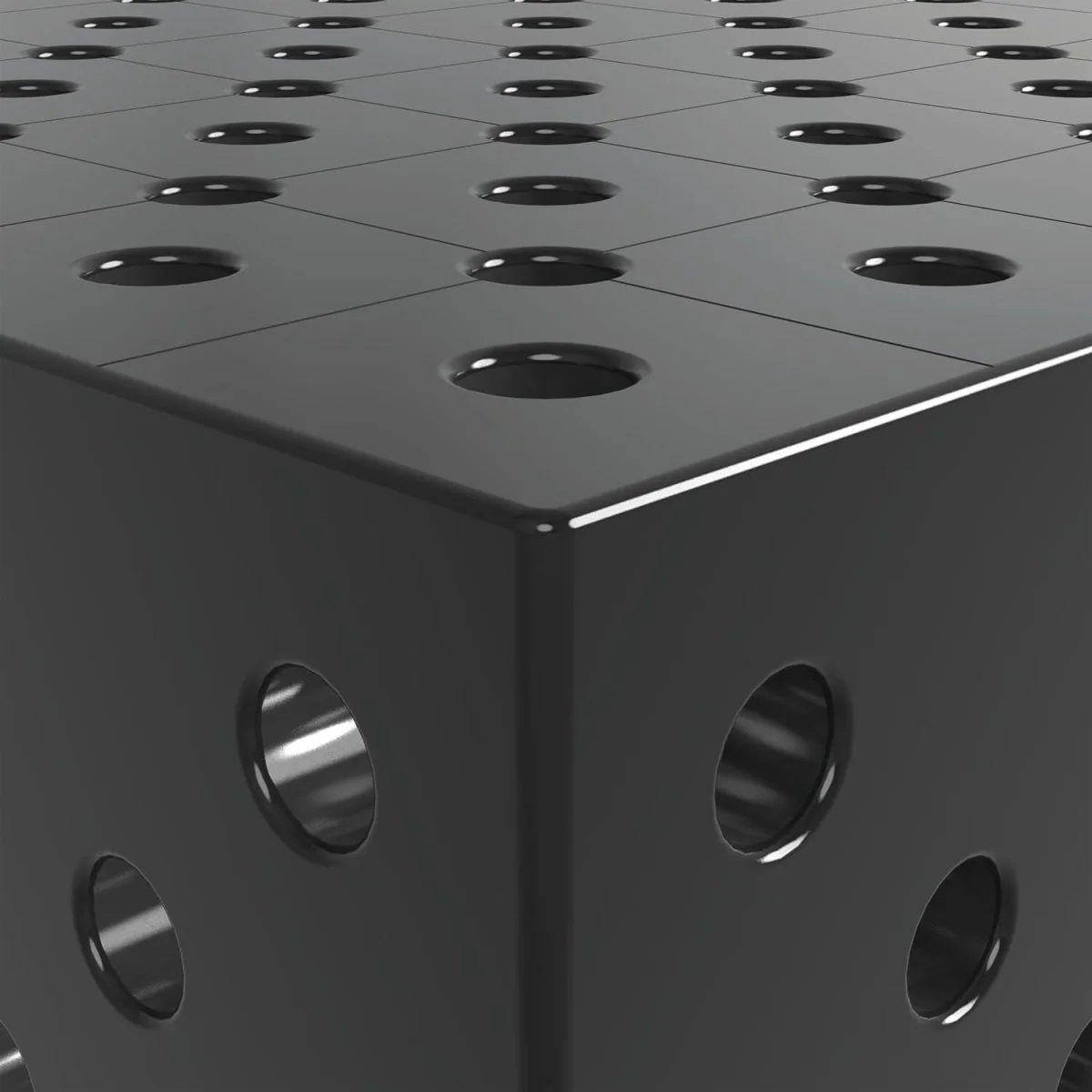

- Radius 1/10" on the table edges and 1/4" on the corners.
- Height of table side is 7-7/8" - Borehole in Diagonal Grid.

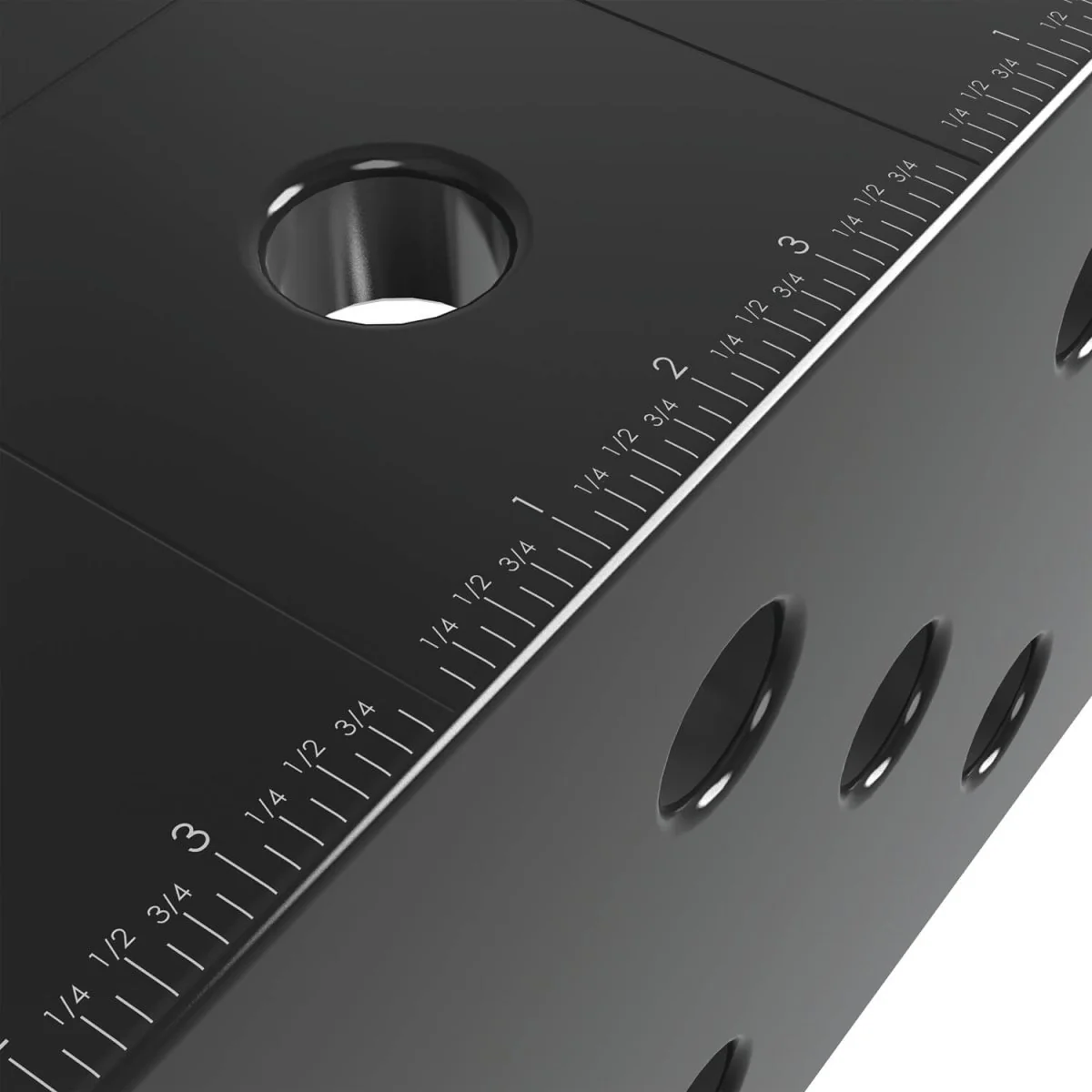

- INCH Scale Engraved on the Surface.

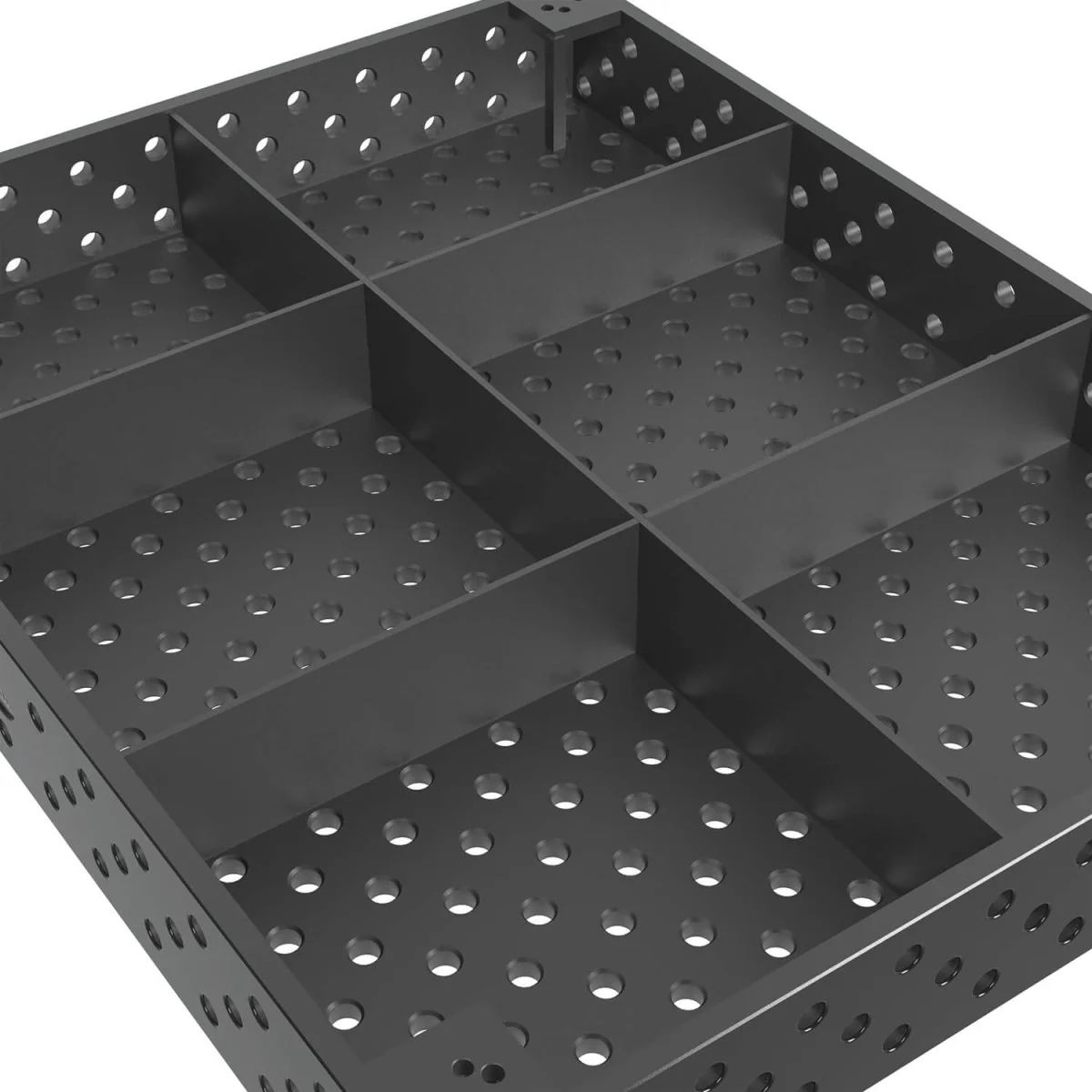

- Bottom of Structure has Reinforced Ribbing.
Siegmund Welding Table Leg Options Chart
| Leg Type | Item No. | Capacity Per Leg | Leg Height | Table Height |
| 1. Standard Leg | US280858.X | 4,400 lbs. | 28" | 36" |
| 2. Height Adjustable Leg | US280877.XX | 4,400 lbs. | 22"-36" | 30"-44" |
| 3. Leg with Casters and | US280876.XX | 1,760 lbs. | 36" | 36" |
| 4. Height Adjustable Leg | US280879.XX | 1,760 lbs. | 22"-30" | 30"-38" |
Select Table Legs
From $4,238.85
Original: $12,111.00
-65%US280030.XD7: System 28 4'x8' (48"x96") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration—
$12,111.00
$4,238.85Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The System 28 Welding Table Series was created with Heavy Duty Applications in Mind.
All System 28 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.
Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.
Specs and Features
of the System 28, 8.7 Imperial Series Welding Tables
Specs & Features
of the System 28, 8.7 Imperial Series
Welding Tables
Welding Table Specs and Features:
- Overall Tabletop Size: 4' x 8' (48" x 96")
- Borehole Diameter: Ø 28mm (1-1/10")
- Welding Table Series: Professional Extreme 8.7 Series
- Welding Table Material Thickness: Approx. 15/16" to 1-1/16"
- Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
- Table Surface Hardness: 450-850 Vickers
- Official Siegmund Welding Table Part No.: US280030.XD7
- Maximum Weight Load: 15,125 lbs. (Based on Even Distribution)
- Approximate Table Weight: 2,190 lbs.
- Boreholes on the Surface are in a Diagonal Grid Configuration.
- Boreholes have a diameter of 28mm (1-1/10"), Boreholes have a 1/10" Radius.
- Radius 1/10" on the table edges and 1/4" on the corners.
- Height of table side is 7-7/8" - Borehole in Diagonal Grid.
- INCH Scale Engraved on the Surface.
- Bottom of Structure has Reinforced Ribbing.
Siegmund Welding Table Leg Options Chart
| Leg Type | Item No. | Capacity Per Leg | Leg Height | Table Height |
| 1. Standard Leg | US280858.X | 4,400 lbs. | 28" | 36" |
| 2. Height Adjustable Leg | US280877.XX | 4,400 lbs. | 22"-36" | 30"-44" |
| 3. Leg with Casters and | US280876.XX | 1,760 lbs. | 36" | 36" |
| 4. Height Adjustable Leg | US280879.XX | 1,760 lbs. | 22"-30" | 30"-38" |
