Specs & Features
of the System 16, 8.7 Imperial Series
Welding Tables

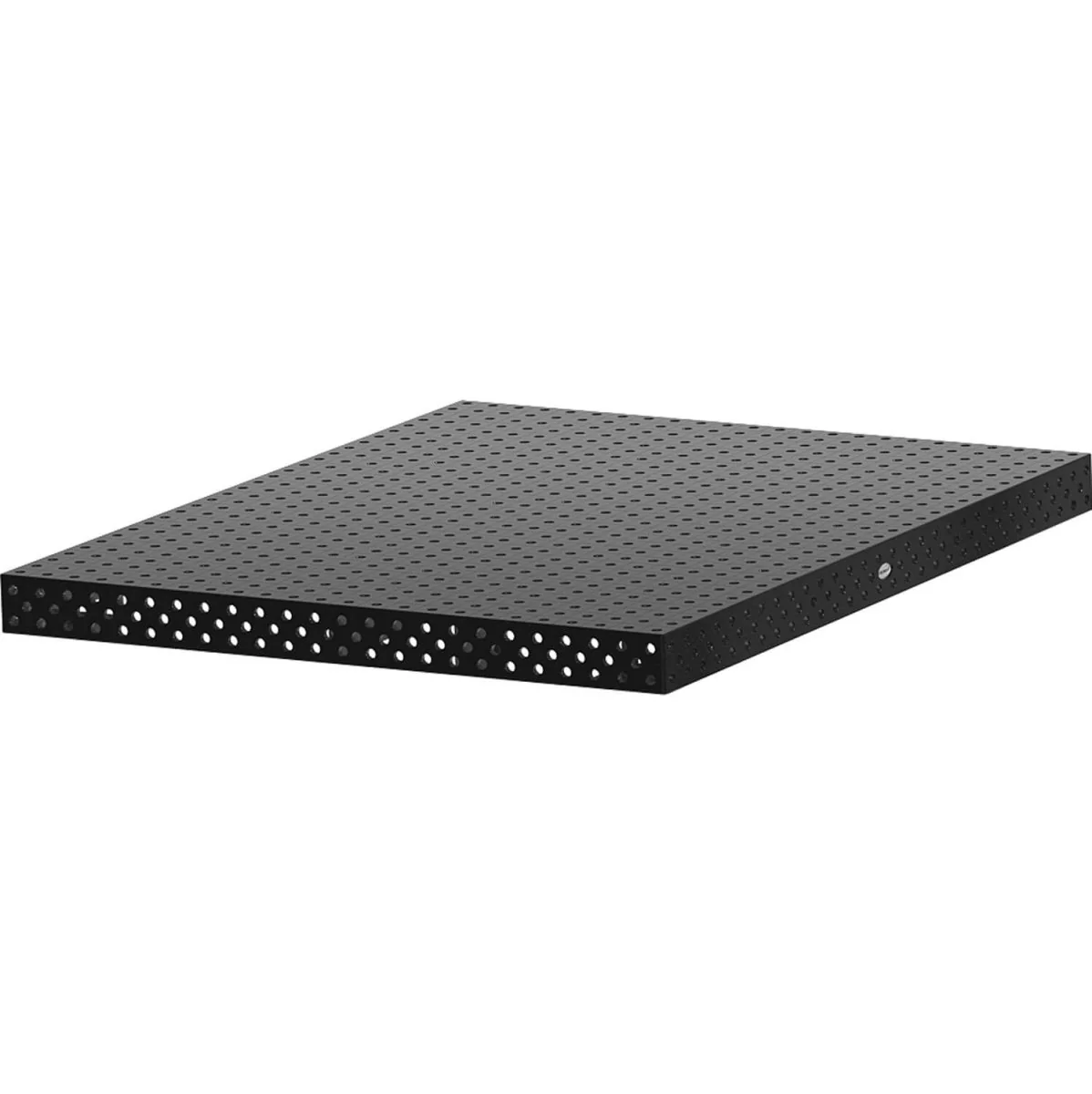

US160035.X7: System 16 4'x5' (48"x60") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration
The System 16 Welding Table Series
is the ideal choice for fine detail applications.
All System 16 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability. Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.
Welding Table Specs and Features:
- Overall Tabletop Size: 4' x 5' (48" x 60")
- Borehole Diameter: Ø 16mm (5/8")
- Welding Table Series: Professional Extreme 8.7 Series
- Welding Table Material Thickness: Approx. 7/16" to 1/2"
- Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
- Table Surface Hardness: 450-850 Vickers
- Official Siegmund Welding Table Part No.: US160035.X7
- Maximum Weight Load: 5,045 lbs. (Based on Even Distribution)
- Approximate Table Weight: 725 lbs.
- Boreholes on the Surface are a 2"x2" Inch Grid Configuration.
- Boreholes have a diameter of 16mm (5/8"), Boreholes have a 1/16" Radius.
- Radius 1/10" on the table edges and 1/4" on the corners.
- Height of table side is 3-5/16" - Borehole in Diagonal Grid.
- INCH Scale Engraved on the Surface.
- Bottom of Structure has Reinforced Ribbing.
Siegmund Welding Table Leg Options Chart
| Leg Type | Item No. | Capacity Per Leg | Leg Height | Table Height |
| 1. Standard Leg | US160858.X | 2,200 lbs. | 32" | 36" |
| 2. Height Adjustable Leg | US160877.1.XX | 2,200 lbs. | 22"-38" | 26"-42" |
| 3. Leg with Casters and | US160876.XX | 440 lbs. | 32" | 36" |
| 4. Height Adjustable Leg | US160879.1.XX | 440 lbs. | 24"-36" | 28"-40" |
Select Table Legs
From $5,919.00
US160035.X7: System 16 4'x5' (48"x60") Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration—
$5,919.00
