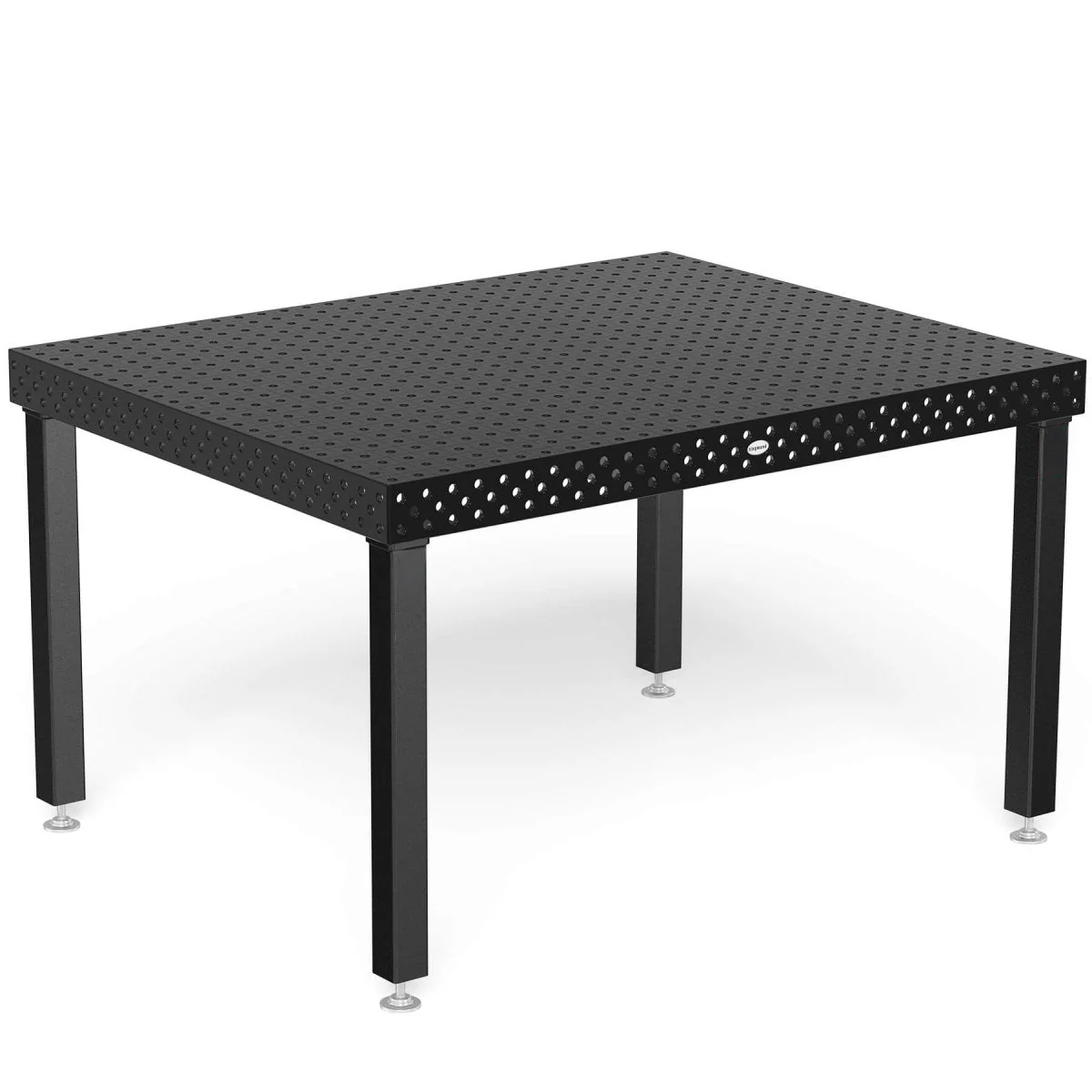

US160035.X7PL: System 16 4'x5' (48"x60") Siegmund Imperial PLUS Series (Inch) Welding Table with Plasma Nitration

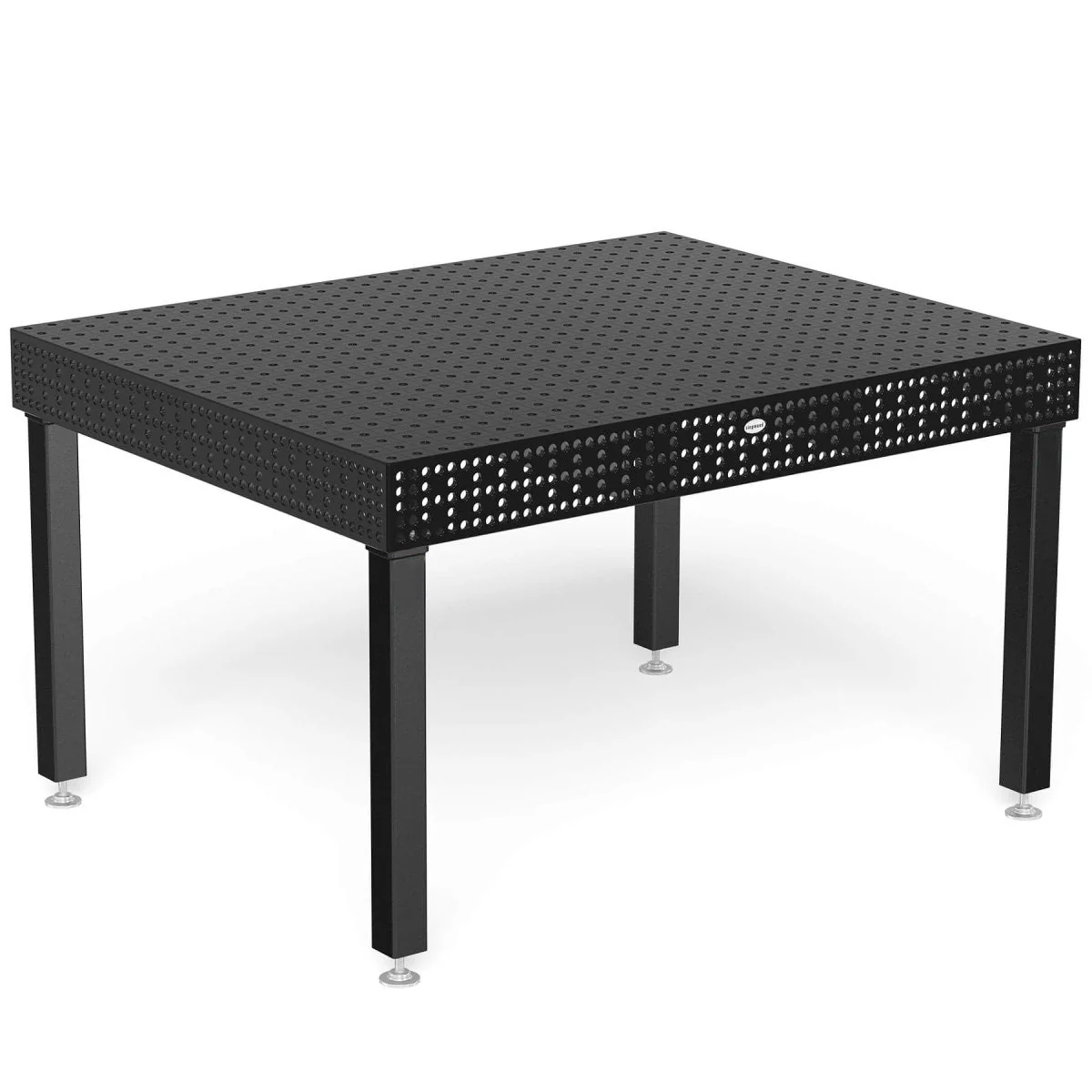

Product image 1

US160035.X7PL: System 16 4'x5' (48"x60") Siegmund Imperial PLUS Series (Inch) Welding Table with Plasma Nitration

The System 16 PLUS Series Welding Table
was created with Heavy Duty Applications in Mind.

All System 16 Professional Extreme Plus tables feature the latest upgrades in aesthetics, versatility, and durability. Our Double Hardened Tables are constructed from tough hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

Specs and Features

of the System 16, 8.7 PLUS Imperial Series Welding Tables

Specs & Features
of the System 16, 8.7 PLUS Imperial Series
Welding Tables

Welding Table Specs and Features:

  • Overall Tabletop Size: 4' x 5'
  • Borehole Diameter: Ø 16mm (5/8")
  • Welding Table Series: Professional Extreme 8.7 Series
  • Welding Table Material Thickness: Approx. 7/16" – 1/2"
  • Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
  • Table Surface Hardness: 280 – 340 Vickers
  • Official Siegmund Welding Table Part No.: US160035.X7PL
  • Maximum Weight Load: 5,000 lbs. (Based on Even Distribution)
  • Approximate Table Weight: 797 lbs
  1. Boreholes on the surface 2" x 2" grid.
  2. Boreholes have a diameter of 16mm, Boreholes have a 5/8" Radius.
  3. Boreholes on table side 3 rows with 1" spacing, 2 rows with 2" spacing
  4. Height of table side is 5-7/8" (Borehole in Diagonal Grid.)

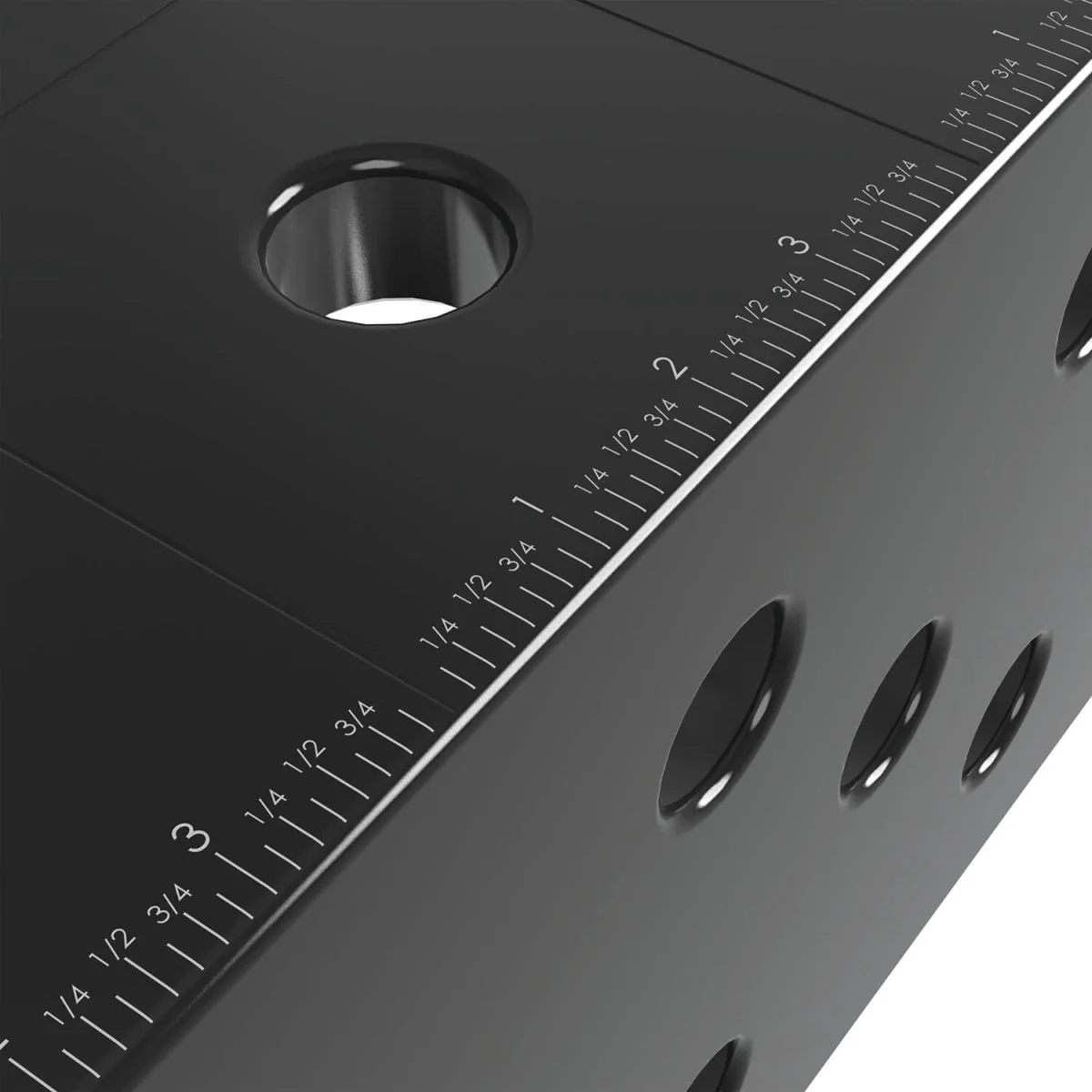

  5. INCH Scale Engraved on the Surface.
  6. Bottom of Structure has Reinforced Ribbing.

Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height

1. Standard Leg

US160853.X

2,200 lbs.

30"

36"

2. Alternative Height Leg

US160858.XX

2,200 lbs.

32"

38"

3. Height Adjustable Leg

US160877.1.XX

2,200 lbs.

22"-38"

28"-44"

4. Leg with Casters and
Locking Brakes

US160860.XX

440 lbs.

30"

36"

5. Height Adjustable Leg
with Casters and Locking Brakes

US160879.1.XX

440 lbs.

24"-36"

30"-42"
Select Table Legs
From $6,432.00
US160035.X7PL: System 16 4'x5' (48"x60") Siegmund Imperial PLUS Series (Inch) Welding Table with Plasma Nitration—
$6,432.00
