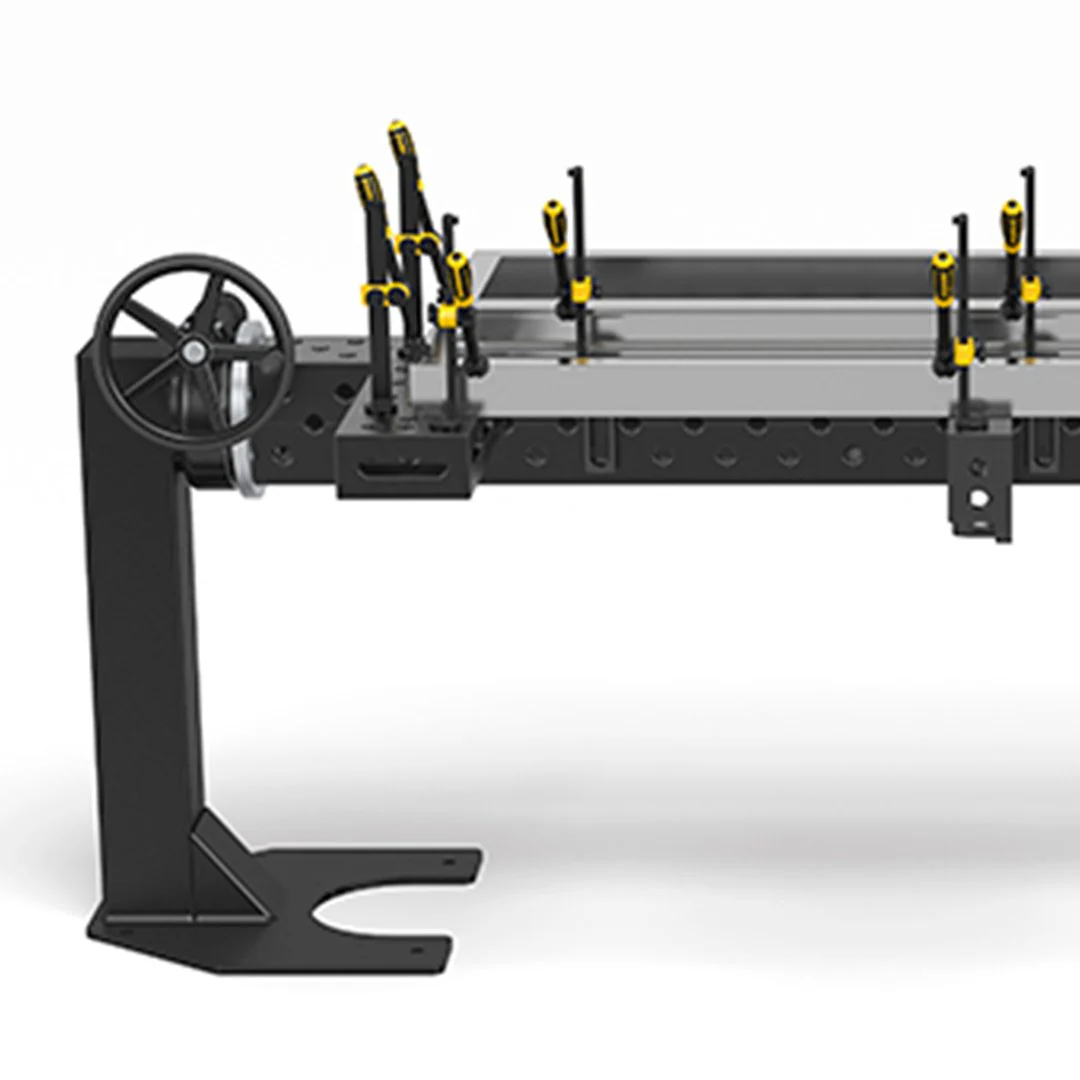

Item No. US6M050016: M-Positioner for System 16 Imperial (Inch) Series, Fixturing and U-Shape Square Sold Separately.
Item No. US6M050016: M-Positioner for System 16 Imperial (Inch) Series, Fixturing and U-Shape Square Sold Separately.
\n THE SIEGMUND SYSTEM 16 IMPERIAL SERIES M-POSITIONER IS IDEAL FOR ANY WELDING, ASSEMBLIY, AND MAINTENANCE TASK.
The Siegmund Positioner has an Infinitely Adjustable Vertical/Height Adjustment with Hydraulic Rotary and Tilt Functions. Made Specifically for Clamping of Components on Siegmund U-Squares.
THE SIEGMUND SYSTEM 16 IMPERIAL SERIES M-POSITIONER IS IDEAL FOR ANY WELDING, ASSEMBLIY, AND MAINTENANCE TASK.
The Siegmund Positioner has an Infinitely Adjustable Vertical/Height Adjustment with Hydraulic Rotary and Tilt Functions. Made Specifically for Clamping of Components on Siegmund U-Squares.
\n
PRODUCTIVITY
• Rapid Alignment of Workpieces.
• Optimum Ergonomic Positioning Offers Maximum Productivity.
• One Set-up for Rotating.
• Reduced Down Time.
\n
TECHNICAL CHARACTERISTICS
• Force Transmission through a Bearing with Integrated Gear.
• Drive Manually via Hand Wheel.
• Universal Flange for Clamping of Siegmund U-Squares. (U-Shapes Sold Separately)
\n
ERGONOMICS
• Convenient Access to Component Delivers Best Product Performance.
• Reduced Risk of Repetitive Strain Injury.
\n
IMPROVED QUALITY
• Improved Quality with Flexible Positioning (Flat Position).
• Improved Quality through Maximum Access.
\n
HEAVY-DUTY SQUARE U-SHAPES (SOLD SEPARATELY)
• A Multitude of Clamping Combination Options with Squares and Stops by the Five-Sided Bore Holes.
• Supports Squares up to 72\" in Length.
• Each Square is Connected with Connecting Bolts for a Secure Hold.
\n
\n
Specs and Features
of the M-Positioner for
System 16 Imperial (Inch) Series
Item No. US6M050016
\n \n
\n
Specs & Features
of the M-Positioner
for System 16
Imperial (Inch) Series
Item No. US6M050016
\n\n
\n
Welding Table Specs and Features:
Item No. US6M050016
- Weight Positioner Approx.: 243 lbs.
- Gear ratio: 1:73
- Axis of rotation: Horizontal
- Hand Wheel with Handle Ø 8\"
- Load Capacity: 1,100 lb.
- Turning Movement: 74 lbf·ft
- Max. Length Square U-Shape: 72\"
- Drive: Manual
- Square U-Shape Compatibility: System 16 Imperial Series
Working Height (A): 33-1/2\"
Tower Height (B): 37-5/8\"
Total Height (C): 42-5/8\"
Base Plate Width (D): 20\"
Base Plate Length (E): 15-3/4\"
\n
