Item No. MP 1500
Item No. MP 1500

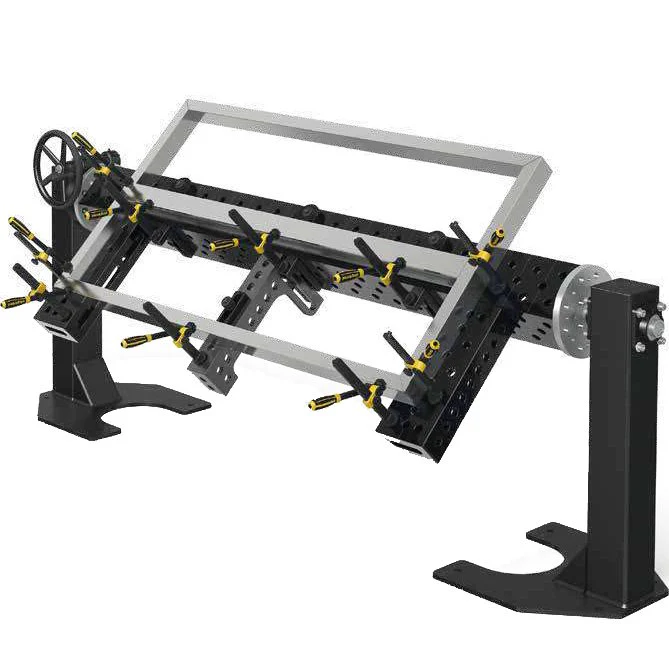

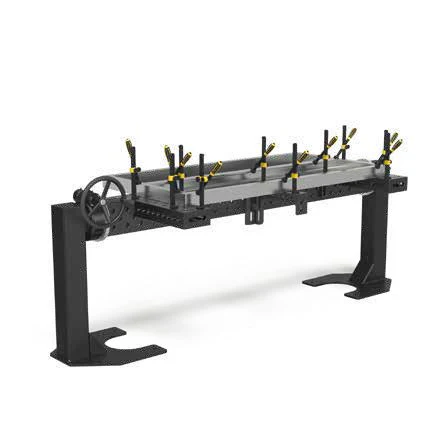

\n THE SIEGMUND M-POSITIONER
The Siegmund Positioner has an Infinitely Adjustable Vertical/Height Adjustment with Hydraulic Rotary and Tilt Functions. Made Specifically for Clamping of Components on Siegmund U-Squares.
THE SIEGMUND M-POSITIONER
IS IDEAL FOR ANY WELDING, ASSEMBLIY, AND MAINTENANCE TASK.
The Siegmund Positioner has an Infinitely Adjustable Vertical/Height Adjustment with Hydraulic Rotary and Tilt Functions. Made Specifically for Clamping of Components on Siegmund U-Squares.
\n
PRODUCTIVITY
• Rapid Alignment of Workpieces.
• Optimum Ergonomic Positioning Offers Maximum Productivity.
• One Set-up for Rotating.
• Reduced Down Time
\n
TECHNICAL CHARACTERISTICS
• Force Transmission through a Bearing with Integrated Gear.
• Drive Manually via Hand Wheel.
• Universal Flange for Clamping of Siegmund U-Squares. (U-Shapes Sold Separately)
\n
ERGONOMICS
• Convenient Access to Component Delivers Best Product Performance.
• Reduced Risk of Repetitive Strain Injury.
\n
QUALITY
• Improved Quality with Flexible Positioning (Flat Position).
• Improved Quality through Maximum Access.
\n
HEAVY-DUTY SQUARE U-SHAPES (SOLD SEPARATELY)
• A Multitude of Clamping Combination Options with Squares and Stops by the Five-Sided Bore Holes.
• Supports Squares up to 3,000 mm (118\") in Length.
• Each Square is Connected with Connecting Bolts for a Secure Hold.
\n
\n
Specs and Features
of the M-Positioner
Item No. 6M150016
\n \n
Specs & Features
of the Siegmund M-Positioner
\n
Welding Table Specs and Features:
Item No. 6M150016
- Weight Positioner Approx.: 396 lbs. (180 kg)
- Max. Load-Bearing Capacity: 3,306 lbs. (1,500 kg)
- Turning Moment: 900 Nm
- Control: Hand Wheel with Handle Ø 315 mm
- Drive: Manual
- Gear Ratio: 1:73
- Axis of Rotation: Horizontal
- Square U-Shape Compatibility: Only works with System 28 Metric Series Components.
- Max. Length of Square U-Shape: 3,000 mm (118\")
A - Working Height: 850 mm (33.5\")
B - Tower Height: 955 mm (37.4\")
C - Total Height: 1,140 mm (44.8\")
D - Base Plate Width: 600 mm (23.6\")
E - Base Plate Length: 600 mm (23.6\")
