Siegmund RP 3000 Roto-Positioner with 1,200mm Octagonal Welding Table Top (Plasma Nitrided)

\n

THE SIEGMUND
ROTO-POSITIONER IS IDEAL
FOR WELDING, ASSEMBLY, AND MAINTENANCE TASK.

The Siegmund Roto-Positioner is engineered for precision positioning and effortless manipulation of workpieces during welding, fabrication, and assembly tasks. Designed with an infinitely adjustable vertical lift, this unit offers a wide range of ergonomic positioning to reduce operator fatigue and improve accessibility at every angle.

\"\"
\n

SPECIFICATIONS

• Hydraulic Rotation of the Clamping Plate.
• Tilting Range up to 95° (Optional up to 140°).
• Hydraulic Height Adjustment and Tilt Function.
• Large Working Area, Low Design Height.

\"\"
\n

PRODUCTIVITY

• Rapid Alignment of Workpieces.
• Optimum Ergonomic Positioning Offers Maximum Productivity.
• One Set-up for Lifting, Tilting and Rotating.

\"\"
\n

ERGONOMICS

  • Optimal connection to the tabletop even while rotating.
  • The welding device is connected via a pin on the machine.
  • Rotatable ground connector included.
\"\"
\n

OCTAGONAL WELDING TABLE

  • Same clamping options as a Siegmund Professional Welding Table, due to its parallel hole pattern on all nine surfaces.
  • To connect the Octagonal Table with a positioner, an adapter plate is required.
  • Plasma Nitrided Surface.
\n
\n

Specs and Features

Siegmund RP 3000 Roto-Positioner with 1,200mm Octagonal Welding Table Top (Plasma Nitrided)

\n
\n

Specs & Features
of the Siegmund
Roto-Positioner

\n

Welding Table Specs and Features:
- Weight of Postitioner (w/out Table Top): Approx. 2,900 lbs. / 1,305 kg.
- Max. Load-Bearing Capacity*: 6,600 lbs. / 3,000 kg.
- Table Revolutions Per Minute (Hydraulic): 1.5 RPM
- Table Revolutions Per Minute (Electric): 0 - 2 RPM
- Max. Turning Moment Table: 1,960 Nm
- Tilt Angle: 95° (Alternatively 140°)
- Tilting Effect: 11,750 Nm
- Vertical Movement Range (inches): Min. 22.4\", Max. 51.1\"
- Vertical Movement Range (mm): Min. 790mm, Max. 1,620mm
- Horizontal Movement Range (inches): Min. 27.5\", Max. 59\"
- Horizontal Movement Range (mm): Min. 720mm, Max. 1,570mm
- Length: 78.7\" / 2,400mm
- Width: 70.8\" / 1,800mm
- Frame Width: 29.5\" / 930mm
- Clamping Plate Diameter: 31.5\" / 1,100mm Ø
Official Siegmund Part No.: 6R300016

1,200x200 Octagonal Table (Plasma Nitrided)
- Item No. 2-921200.P
- System: System 28
- Material: S355J2+N Steel
- Length: 19.5\" (497 mm)
- Width: 47.2\" (1,200 mm)
- Height: 7.8\" (200 mm)
- Material thickness: 0.98\" (25 mm)
- Weight: 6,613 lbs.
- Diameter: 51.1\" (1,299 mm)

\"\"
\"\"
\n
\n

Featured Welding Tables

Videos of Siegmund Welding Tables

\n
\n

Featured Siegmund Videos
of the Welding Tables

\n

Impact Test Standard Weld Table vs Siegmund Weld Table

\n

Why Our Welding Tables are Plasma Nitrided

\n

The Strength of a Siegmund Welding Table

\n

\"You Can Produce Everything...\"

\n
\n

This Month's

Featured Siegmund Welders

\n
\n

This Month's
Featured Siegmund Welders

Greg from Red Beard's Garage

Red Beard’s Garage is world famous and has over 430,000+ Youtube Subscribers!
Red Beard (Greg) and his team builds all types of Go-Karts and definitely have a blast doing it - so be sure to follow their channel on Youtube. Red Beard’s Garage solely trusts Quantum Machinery and Siegmund to supply and support all of their Welding Table and Fixturing needs!
(There is bound to be something that will “tickle your fancy”! )

\n
\n

Jeff Lutz (Lutz Race Cars) from Street Outlaws

Jeff Lutz (Lutzs Race Cars) from Street Outlaws is world famous and has over 850,000+ Instagram Followers and over 850,000+ Facebook Fans and is currently filming with his Siegmund table on the Discover Channel! When he received his Siegmund Welding Table and Accessories from us, he had nothing but the best things to say, \"Wow it is amazing!\" and after spending a few weeks with it, Jeff wrote on his instagram that his Siegmund Welding Table makes fixturing everything so much easier for him and his team!

\"\"
\"\"

Here is a video of Jeff Lutz in a drag race, for your own entertainment!

\n
\n

Contact a Siegmund Expert

Feel free to contact us today to place an order or let us know
if you have any questions about any Siegmund's Products.

\n
\n
\n
Contact a Siegmund Expert
Feel free to contact us today to place an order or let us know if you have any questions about any Siegmund's Products.
\n

Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.

Phone: (704)703-9400
Email: [email protected]

Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.

Phone: (704)703-9400      Email: [email protected]

If you would like for us to contact you, simply fill out the form below and one of our Siegmund Experts will be in contact with you shortly.

Thanks!
This field is required
This field is required
This field is required
This field is required
This field is required
This field is required
","image":["/images/weldingtablesandfixturesgear.shop/images/product/siegmund-rp-3000-roto-positioner-with-1-200mm-octagonal-welding-table-top-plasma-nitrided-1.png"],"sku":"siegmund-rp-3000-roto-positioner-with-1-200mm-octagonal-welding-table-top-plasma-nitrided","brand":{"@type":"Brand","name":"Siegmund Welding Tables"},"offers":{"@type":"AggregateOffer","lowPrice":46179.7,"highPrice":46179.7,"priceCurrency":"USD","availability":"https://schema.org/InStock","url":"https://weldingtablesandfixturesgear.shop/products/siegmund-rp-3000-roto-positioner-with-1-200mm-octagonal-welding-table-top-plasma-nitrided","offerCount":1}}
HomeStore

RP3000 Siegmund Roto-Positioner with 1,200mm Octagonal Welding Table Top (Plasma Nitrided)

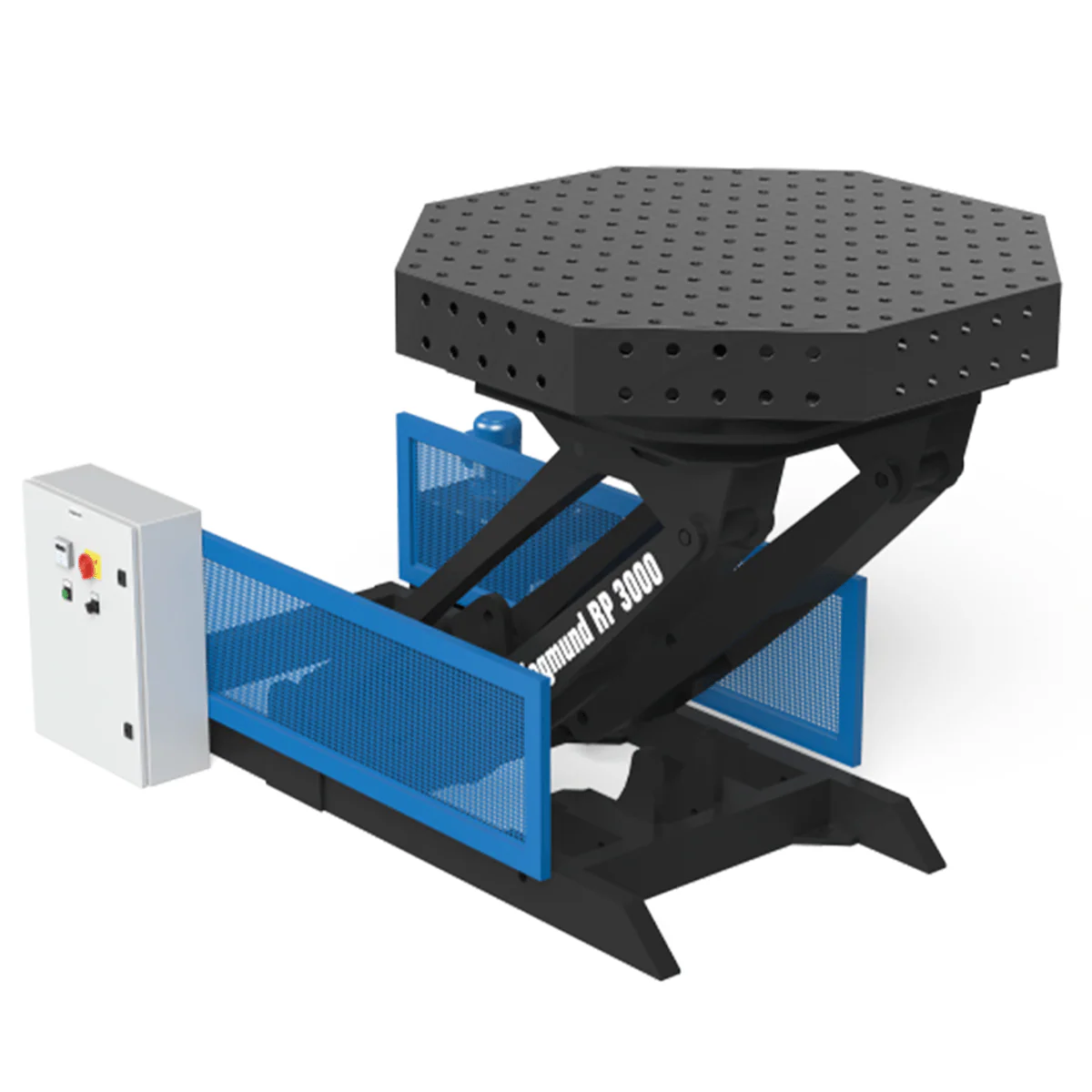

Product image 1
