USZP0020: Zero Point Clamping System (Nitrided)

\n

The Siegmund Imperial Zero Point Clamping System is the Ideal Choice for Your Introduction of Automation and Series Production.

Exchange Welding Fixtures Easily and flexibly. Change Your Reused Welding Fixture in a Few Simple Steps with Siegmund's Zero point Clamping System. The Perforated Plate Can Be Aligned on the Welding Table With the Zero Point Clamping System. The Centering Is Done via the Sockets.

\"\"
\n
\n

Specs and Features

of the Zero Point Pneumatic
Clamping System (Nitrided)

Item No. USZP0020

\n
\n
\n

Specs & Features

of the Zero Point Pneumatic
Clamping System (Nitrided)

Item No. USZP0020

\n
Height: 1-3/4\"
\nDiameter: 4-15/16\"
Weight: 7.47 lbs.
Actuation via Open-End Wrench SW 50\n
Max. Holding Force: 450 lbf
- Release of the Clamping Bolt using Compressed Air (approx. 7,5 bar),
- incl. USZP0021: Universal banjo screw
Zero Point Clamping System Layout
\"\"
Zero Point Clamping System Versions
\"\"

MECHANICAL VERSION

  • The Mechanical Variant Is Clamped or Opened Using an Open jaw Wrench.
\"\"

PNEUMATIC VERSION

  • The Pneumatic Variant, the Clamping Bolt Is Loosened Using Compressed Air. (Without the Supply of Compressed Air, the Bolt Is Clamped.)
\"\"
\n

QUICK FIXTURE CHANGE

  • \nSimply Remove and Replace the Complete Perforated Plate and Fixture Assembly and
    Replace     With Another.\n
  • The Basis of the System Is the Siegmund Welding Table
  • At Least 4 Clamping Modules Are Required Per Perforated Plate
  • The Perforated Plate Is Clamped and Centered Using Balls
\"\"
\n

PRODUCE IN SERIES

  • Switch Quickly Between Recurring Fixtures
  • Minimization of Non-productive Welding Times
  • Suitable for Use With and Without Welding Robots
\"\"
\n

SIMPLE USAGE

  • The Modules of the Zero Point Clamping System Are Centered and Fastened in the Borehole
  • The Perforated Plate Is Fastened Using Clamping Bolts via the Zero Point Clamping System.
\"\"
\n

PERCISE ZEROING

  • The Perforated Plate Can Be Aligned on the Welding Table With the Zero Point Clamping System.
  • The Centering Is Done via the Sockets.
\"\"
\n

MAXIMUM EFFICIENCY

  • In Combination With the New Clamping System, Recurring Welding Devices Can Be Manufactured With High Accuracy and Low downtimes.
  • If a Robot Program Already Exists, in combination with the new clamping system, recurring welding devices can be manufactured with high accuracy and low downtime From a Minimal Set-up Time of Your Device.
\n
\n

System 16 Accessory Sets

The Most Popular Siegmund Accessory Bundles

\n
\n

System 16
Series Accessory Sets
The Most Popular Siegmund Accessory Bundles

Sold out

Sold out

Sold out

Sold out

Sold out
\"\"
\n
\n

Featured Welding Table

Videos of Siegmund Imperial Series

\n
\n

Featured Siegmund Videos
of the System 16
Welding Tables

\n

Impact Test Standard Weld Table vs Siegmund Weld Table

\n

Why Our Welding Tables are Plasma Nitrided

\n

The Strength of a Siegmund Welding Table

\n

\"You Can Produce Everything...\"

\n
\n

This Month's

Featured Siegmund Welders

\n
\n

This Month's
Featured Siegmund Welders

Greg from Red Beard's Garage

Red Beard’s Garage is world famous and has over 430,000+ Youtube Subscribers!
Red Beard (Greg) and his team builds all types of Go-Karts and definitely have a blast doing it - so be sure to follow their channel on Youtube. Red Beard’s Garage solely trusts Quantum Machinery and Siegmund to supply and support all of their Welding Table and Fixturing needs!
(There is bound to be something that will “tickle your fancy”! )

\n
\n

Jeff Lutz (Lutz Race Cars) from Street Outlaws

Jeff Lutz (Lutzs Race Cars) from Street Outlaws is world famous and has over 580,000+ Instagram Followers and over 467,000+ Facebook Fans and is currently filming with his Siegmund table on the Discover Channel! When he received his Siegmund Welding Table and Accessories from us, he had nothing but the best things to say, \"Wow it is amazing!\" and after spending a few weeks with it, Jeff wrote on his instagram that his Siegmund Welding Table makes fixturing everything so much easier for him and his team!

\"\"
\"\"

Here is a video of Jeff Lutz in a drag race, for your own entertainment!

\n
\n

Contact a Siegmund Expert

Feel free to contact us today to place an order or let us know
if you have any questions about any Siegmund's Products.

\n
\n
\n
Contact a Siegmund Expert
Feel free to contact us today to place an order or let us know if you have any questions about any Siegmund's Products.
\n

Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.

Phone: (704)703-9400
Email: [email protected]

Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.

Phone: (704)703-9400      Email: [email protected]

If you would like for us to contact you, simply fill out the form below and one of our Siegmund Experts will be in contact with you shortly.

Thanks!
This field is required
This field is required
This field is required
This field is required
This field is required
This field is required
","image":["/images/weldingtablesandfixturesgear.shop/images/product/uszp0020-zero-point-pmeumatic-clamping-system-nitrided-1.png"],"sku":"uszp0020-zero-point-pmeumatic-clamping-system-nitrided","brand":{"@type":"Brand","name":"Siegmund Welding Tables"},"offers":{"@type":"AggregateOffer","lowPrice":166.95,"highPrice":166.95,"priceCurrency":"USD","availability":"https://schema.org/InStock","url":"https://weldingtablesandfixturesgear.shop/products/uszp0020-zero-point-pmeumatic-clamping-system-nitrided","offerCount":1}}
HomeStore

USZP0020: Zero Point Pmeumatic Clamping System (Nitrided)

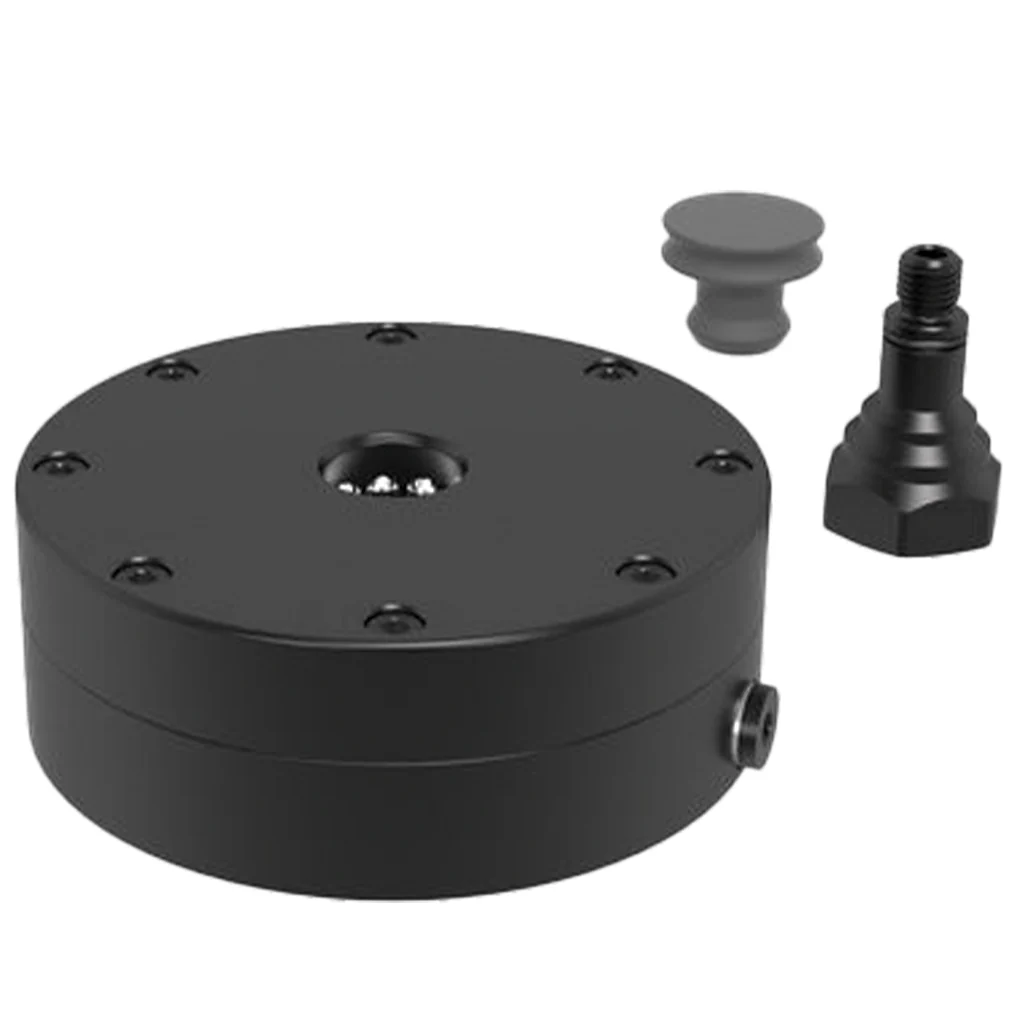

Product image 1
