Specs and Features
of the System 28 Basic
Imperial Series Welding Tables

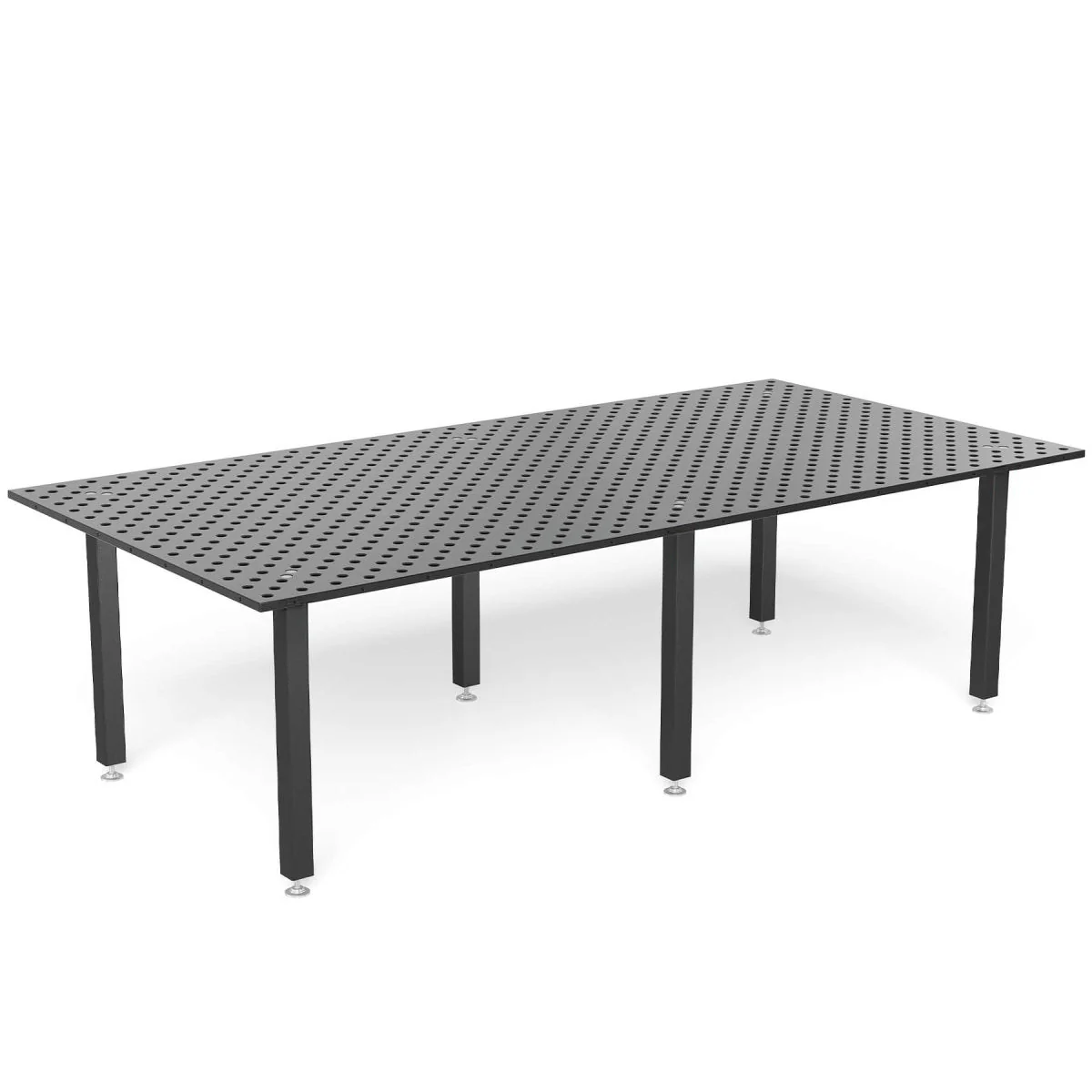

US281040.XD7: System 28 5'x10' (60"x120") Siegmund Imperial "BASIC" Series (Inch) Welding Table with Plasma Nitration
The System 28 Basic Welding Table Series was created with Heavy Duty Applications in Mind.
All System 28 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability. Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.
Specs & Features
of the System 28, 8.7 Imperial Series
Welding Tables
Welding Table Specs and Features:
- Overall Tabletop Size: 5' x 10' (60" x 120")
- Borehole Diameter: Ø 28mm (1-1/10")
- Welding Table Series: System 28 Basic Imperial Series
- Welding Table Material Thickness: Approx. 15/16" to 1-1/16"
- Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
- Table Surface Hardness: 450-850 Vickers
- Official Siegmund Welding Table Part No.: US281040.XD7
- Maximum Weight Load: 6,855 lbs. (Based on Even Distribution)
- Approximate Table Weight: 2,223 lbs.
- 5/16"x45" chamfer for table mounting.
- Boreholes 28mm (1-1/10"), Boreholes 7/64"x45.
- Radius 1/10" on table edges and 1/4" corners.
- Without side panel.
- Boreholes on the Surface are in a Diagonal Grid.
- M12 thread on 4 sides every 7-7/8".
Siegmund Welding Table Leg Options Chart
| Leg Type | Item No. | Capacity Per Leg | Leg Height | Table Height |
| 1. Standard Leg | US161856 | 2,200 lbs. | 34-1/2" | 36" |
| 2. Height Adjustable Leg | US160877.XX | 2,200 lbs. | 22"-38" | 22"-38" |
| 3. Leg with Casters and | US161855 | 440 lbs. | 34-1/2" | 36" |
| 4. Height Adjustable Leg | US160879.XX | 440 lbs. | 24"-36" | 28"-40" |
Select Table Legs
From $3,333.75
Original: $9,525.00
-65%US281040.XD7: System 28 5'x10' (60"x120") Siegmund Imperial "BASIC" Series (Inch) Welding Table with Plasma Nitration—
$9,525.00
$3,333.75Product Information
