NEW HANDWHEEL DESIGN

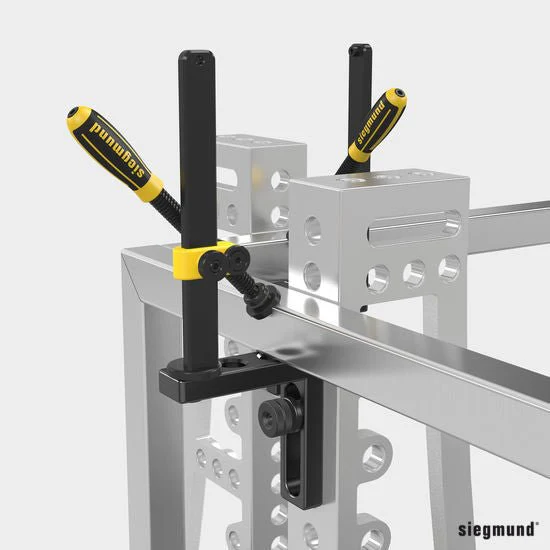

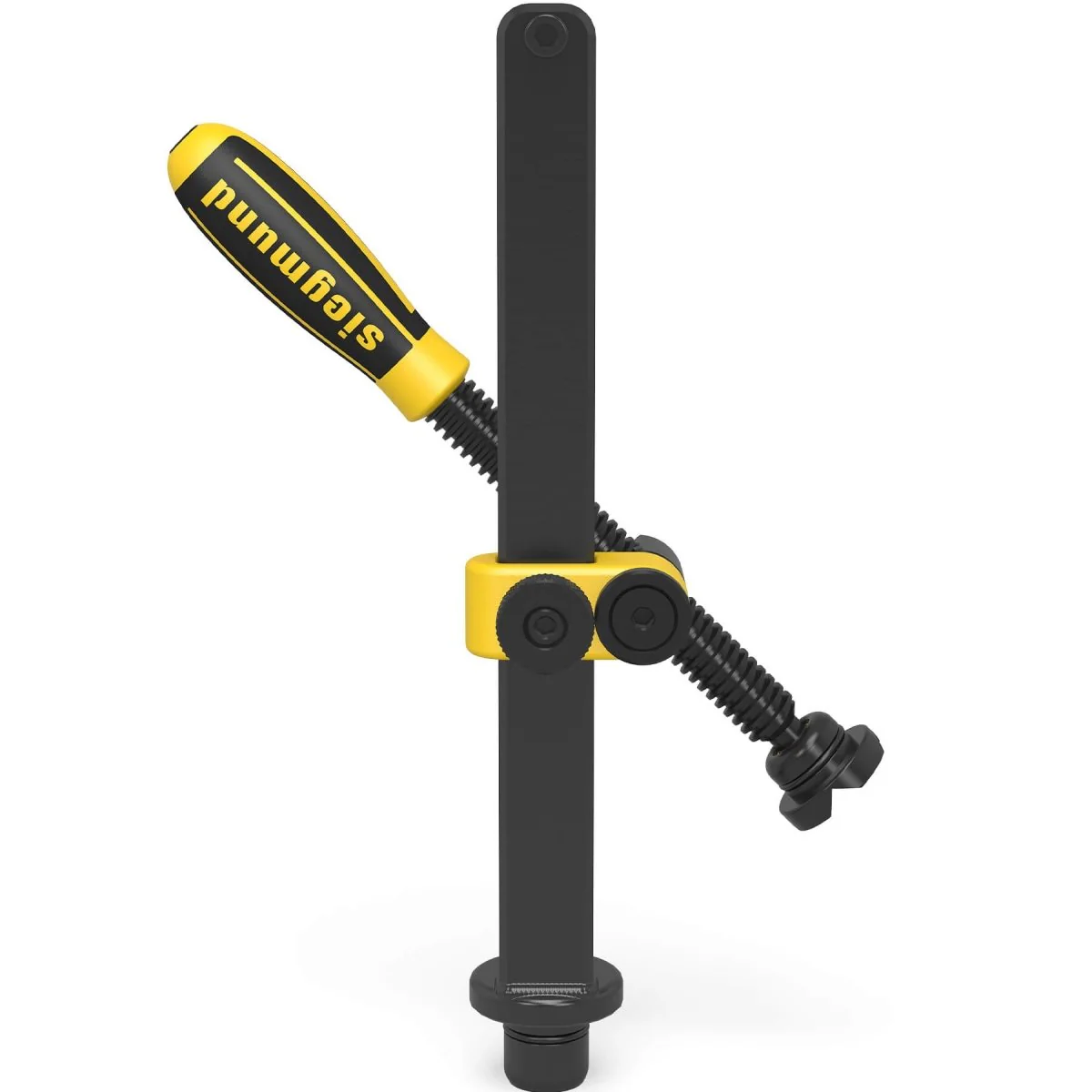

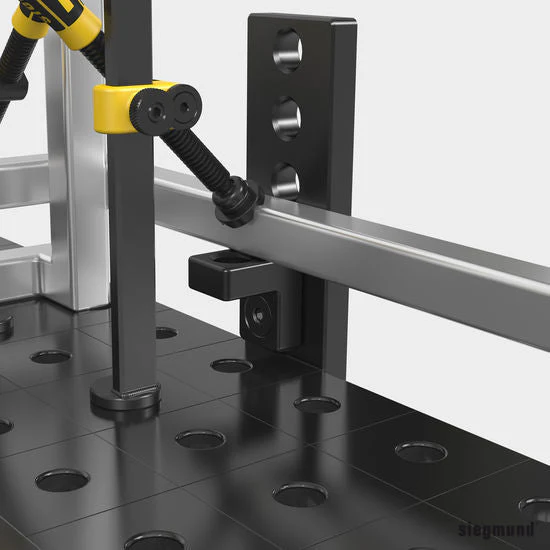

\n The System 28 45°/90° Professional Screw Clamp Enables Fast, Powerful, and Effortless Clamping.
The Siegmund Professional Screw Clamp 45°/90° replaces conventional 45° or 90° screw clamps. This Screw Clamp sets new standards because of its infinitely variable rotatability from 0°- 360°.
The System 28 45°/90° Professional Screw Clamp Enables Fast, Powerful, and Effortless Clamping.
The Siegmund Professional Screw Clamp 45°/90° replaces conventional 45° or 90° screw clamps. This Screw Clamp sets new standards because of its infinitely variable rotatability from 0°- 360°.
\n
NEW HANDWHEEL DESIGN
- With the New Handwheel on the Cast Iron Cross, the Height can be Adjusted Within Seconds.
- The Grip Design Allows the Adjusted Height to be Locked in Place.
- Due to the Hexagon Socket Insert, Located at the Top of the Handle, the Force of the Clamp can be Adjusted Precisely by a Torque-Limiting Wrench.
\n
VARIOUS PRISMS AVAILABLE (ADDITIONAL PRISMS ARE OPTIONAL)
- The Interchangeable and Compact Prism Allows for Optimal Grip.
- An Array of Prisms from Steel to Nitried can be used for Any Unique Job.
- Additional Prisms that can be used are the US280660.E, US280658.E, US280659.PA, US280657.1.N, US280660, and US280660.PA (Additional Prisms are Optional).
\n
REINFORCED BARS
- The Dimensions of the Flat Bar in use are 1.18\"x0.55\"
- The Vertical Bar is Reinforced with Harden Tool Steel.
\n
HEAVY-DUTY DESIGN
- A Long Lifetime and Efficiency is Guaranteed by its High-Quality Nitrided Material.
- The Friction Placed Design Allows Any Piece to be Held in Place Tightly.
- The Clamp can be Adapted and Placed in Any System 28 Imperial Borehole Located on Siegmund Welding Tables or Stops.
\n
Specs and Features
of the System 28 Imperial Series
45°/90° Professional Screw Clamp
Item No. US280630.N
\n
Specs and Features
of the System 28 Imperial Series
45°/90° Professional Screw Clamp
Item No. US280630.N
Height: 12-3/16\"
Finish: Nitrided
Weight: 5.07 lbs.
Stepless Rotation: 0°- 360°
Ball Diameter Spindle: 5/8\"
Max. Holding Force: 1,125 lbs.
\n
