US280516: Fast Clamping Bolt with Handle (Burnished)

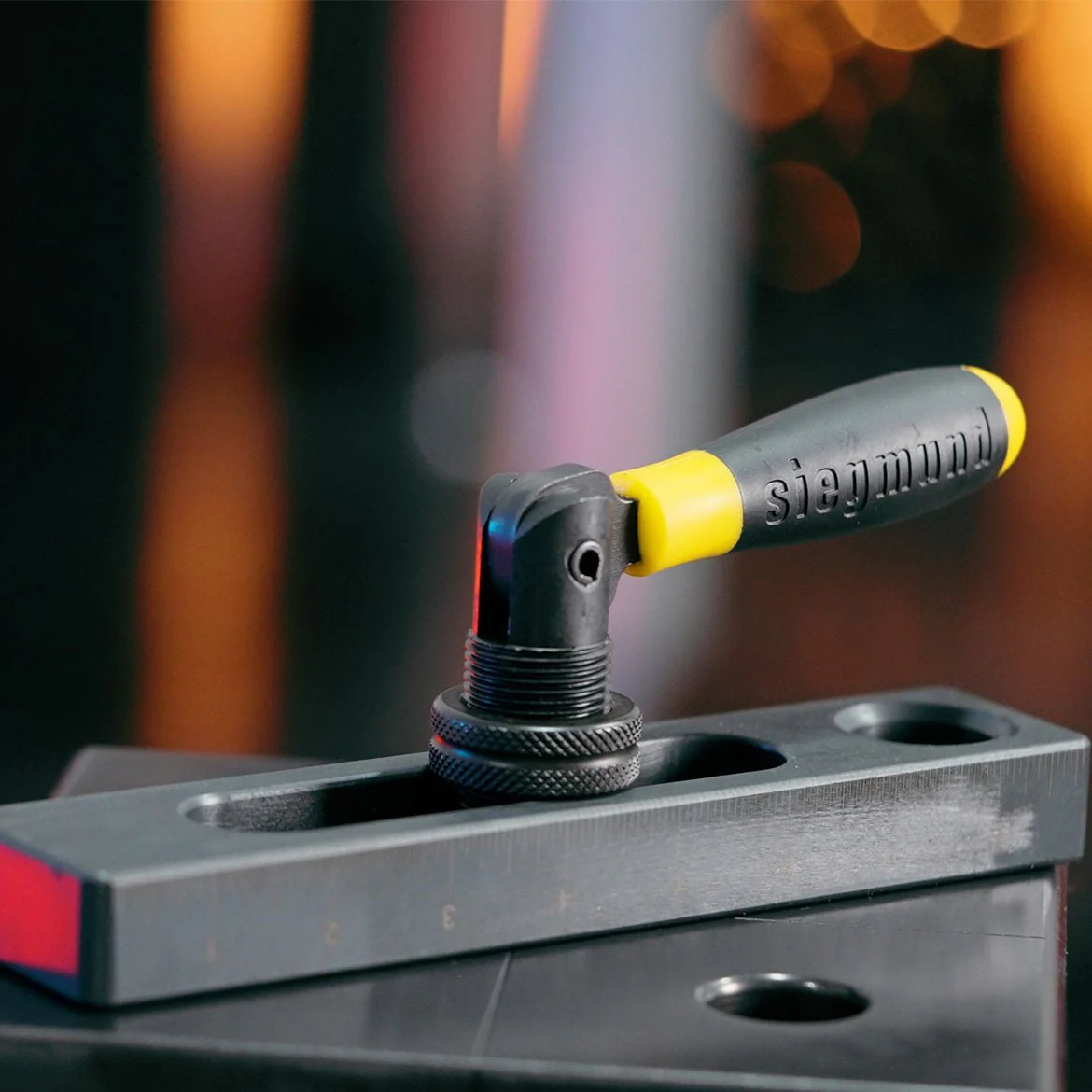

The Siegmund Fast Clamping Bolt with Handle is designed for quick, secure connection of two Siegmund components on System 28 Imperial welding tables. Its burnished finish provides durability while maintaining smooth operation during repeated clamping cycles.

NEW THIMBLE DESIGN

  • With the New Thimble the Height can be Adjusted Within Seconds.
  • The Grip Design Allows the Adjusted Height to be Locked in Place.

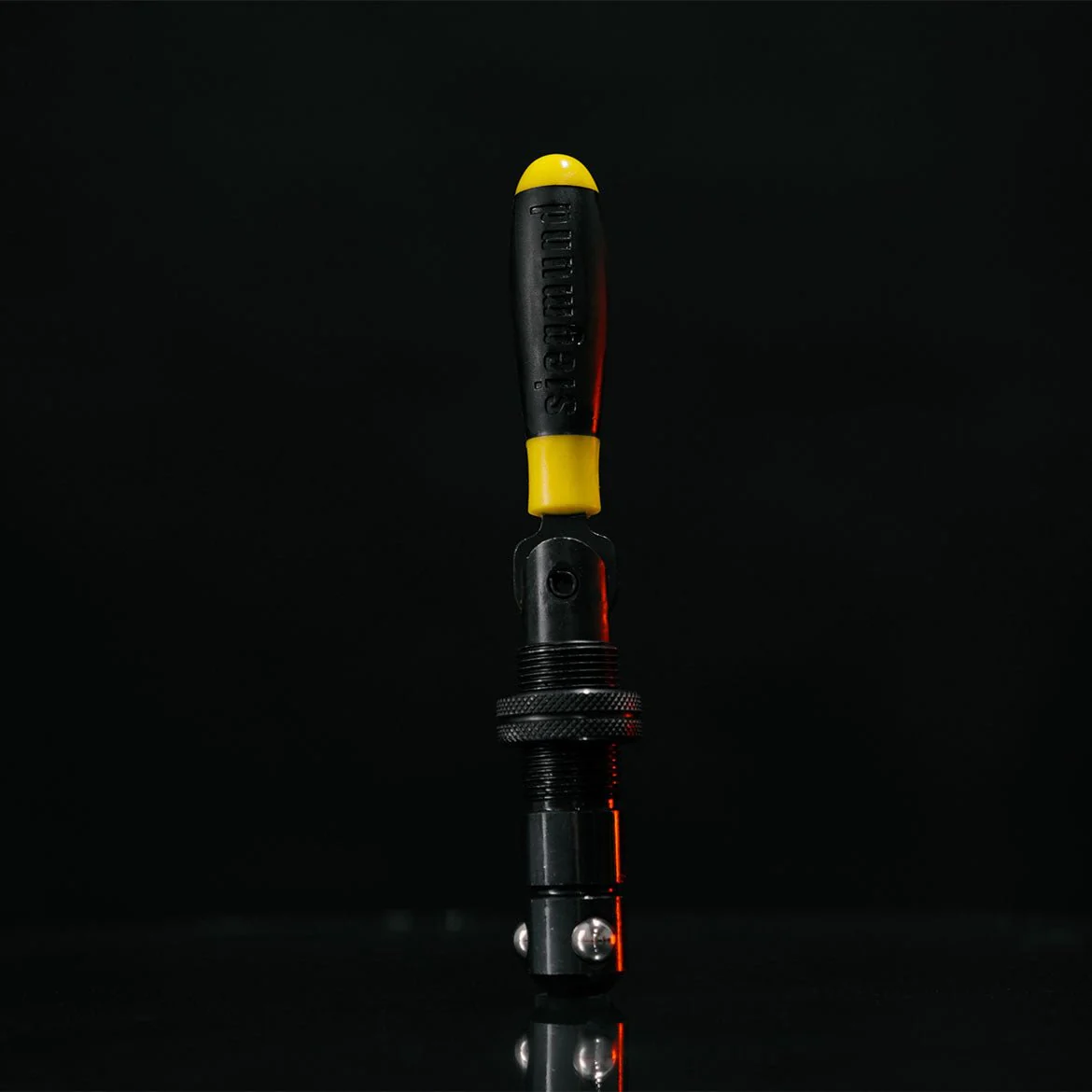

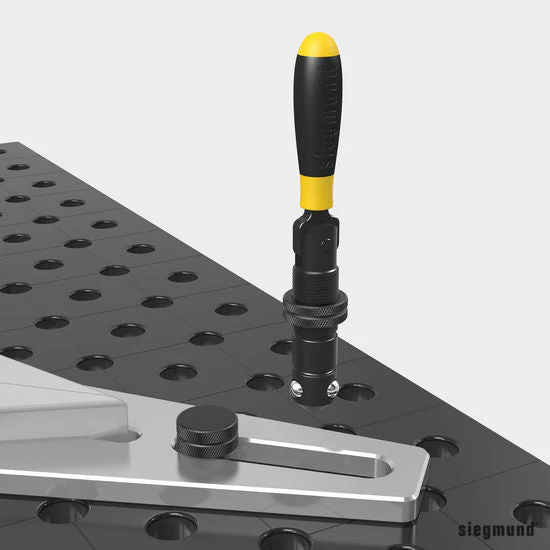

EASY-TO-USE BALL BEARINGS

  • It Features Especially Large Balls, which Protect the Bevel of the Bore Holes.
  • The Fourth Ball Located in the Center, Reduces Internal Friction and Strengthens the Power of the Handwheel.
  • Specifically Made for System 28 Bore Holes, both Welding Tables and Stops.

SECURE CONNECTIONS

  • Laser Cut Profiles of Varying Thickness can Easily be Clamped.
  • For Clamping up to 2 Siegmund Components.
  • This Bolt MUST NOT be used for Connecting Tables and U-shaped Squares!

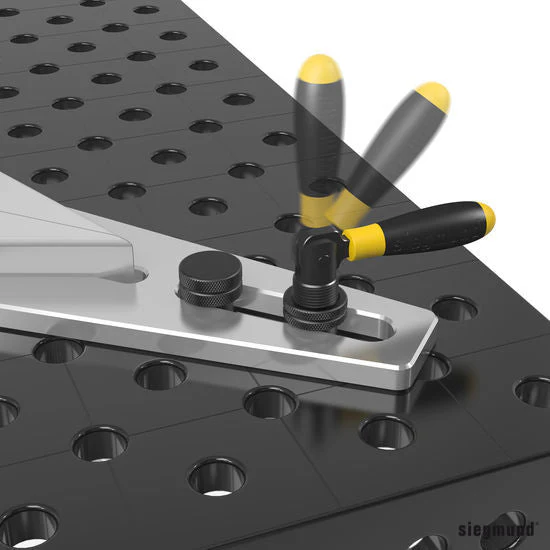

EFFORTLESS HANDLE

  • Due to its Well-Engineered Mechanism it can be Fixed and Released by Hand within Seconds.
  • The Position of the Handle is Adjustable Between 1.3" and 2.4"

Specs and Features
of the System 28 Imperial Series
 Fast Clamping Bolt With Handle
Item No. US280516

Specs and Features
of the System 28 Imperial Series
 Fast Clamping Bolt With Handle
Item No. US280516

Length: 9-1/14"

Clamping Range: 1-5/16" to 2-3/8"

Weight: 1.4 lbs.

Diameter: 1-1/10"

Finish: Burnished

Tensile Force: 5,600 lbs.f.

Shearing Force: 49,400 lbs.f

System 28 Imperial Series
Accessory Sets

System 28
Imperial Series Accessory Sets

Sold out

Sold out

Sold out

Sold out

Sold out
$44.45

Original: $127.00

-65%
US280516: Fast Clamping Bolt with Handle (Burnished)—

$127.00

$44.45
