NEW SCREW TOP DESIGN
\n The System 28 Fast Clamping Bolt Enables Fast, Powerful, and Effortless Support.
The Bolt Without Triple Slot is Particularly Suitable for Clamping Aluminum Profiles and is Also Still Compatible with the Entire Siegmund Range. The Fast Clamping Bolt with Twistlock is the Ideal Connecting Element Between Siegmund Components.
The System 28 Fast Clamping Bolt Enables Fast, Powerful, and Effortless Support.
The Bolt Without Triple Slot is Particularly Suitable for Clamping Aluminum Profiles and is Also Still Compatible with the Entire Siegmund Range. The Fast Clamping Bolt with Twistlock is the Ideal Connecting Element Between Siegmund Components.
\n
NEW SCREW TOP DESIGN

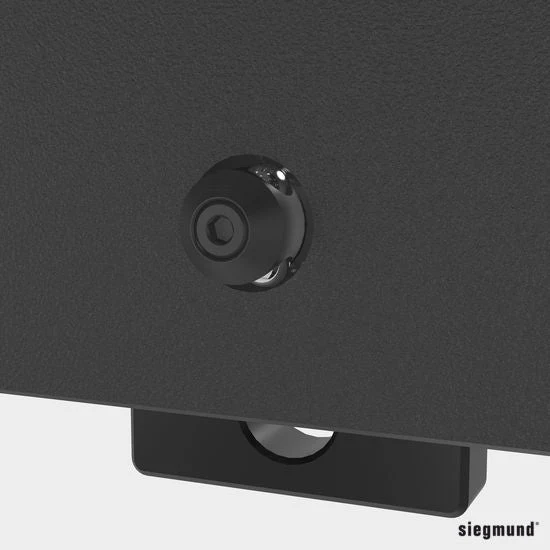

- Due to the Hexagon Socket Insert, Located at the Top of the Bolt, the Force of the Bolt can be Adjusted Precisely by a Torque-Limiting Wrench.
- \nThe Grip Design Allows the Bolt to be Locked in Place in Seconds.\n
\n
EASY-TO-USE BALL BEARINGS

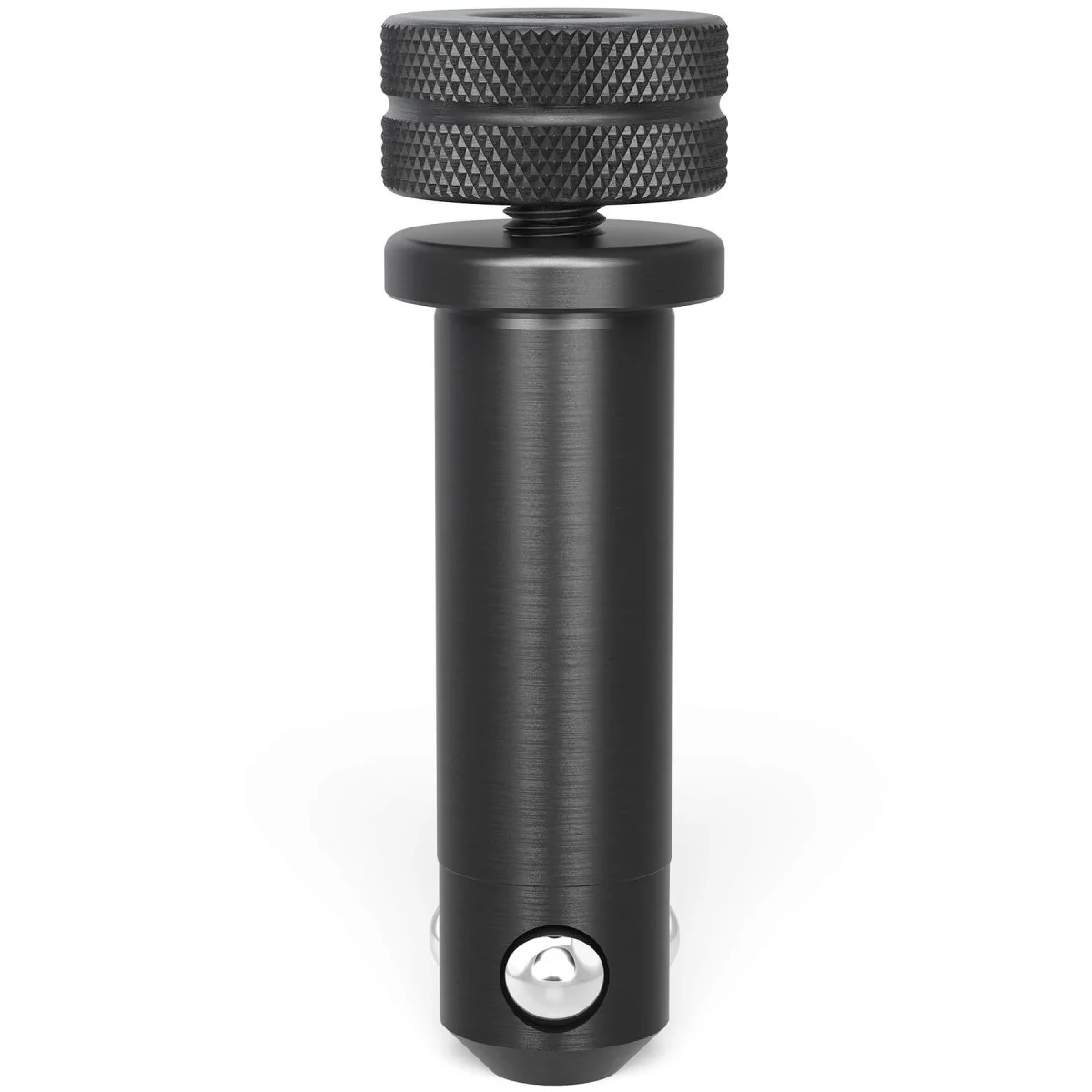

- It Features Especially Large Balls, which Protect the Bevel of the Bore Holes.
- The Fourth Ball Located in the Center, Reduces Internal Friction and Strengthens the Power of the Handwheel.
- Specifically Made for System 28 Bore Holes, both Welding Tables and Stops.
\n
SECURE CONNECTIONS

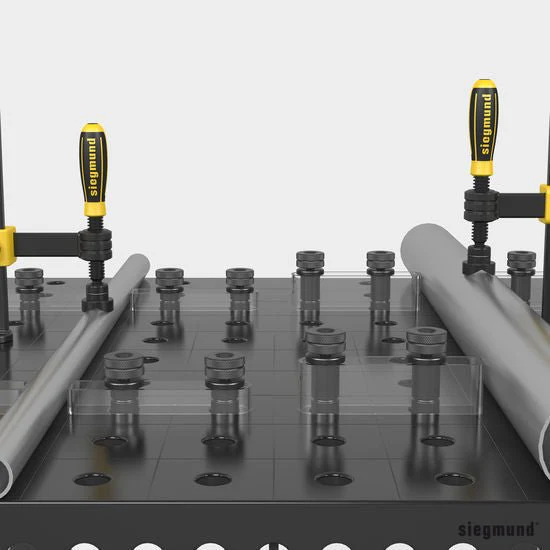

- Laser Cut Profiles of Varying Thickness can Easily be Clamped.
- For Clamping up to 3 Siegmund Components.
- This Bolt MUST NOT be used for Connecting Tables and U-shaped Squares!
\n
HEAVY-DUTY DESIGN
- A Long Lifetime and Efficiency is Guaranteed by its High-Quality Material.
- The Overall Design Allows Any Piece to be Held in Place Tightly.
\n
Specs and Features
of the System 28 Imperial Series
Fast Clamping Bolt Without Triple Slot
Item No. US280513
\n
Specs and Features
of the System 28 Imperial Series
Fast Clamping Bolt Without Triple Slot
Item No. US280513
Tensile Force: 25 kN
Material: Burnished
Length: 120 mm (4.72\")
Diameter: 28 mm (1.10\")
Shearing Force: 220 kN
Weight: 1.43 lbs. (0.65kg)
Tightening Torque Steel: 25 Nm
Tightening Torque Aluminum: 10 Nm
\n
