US280040.XD8PL: Siegmund 5'x10' (60"x120") 8.8 Plus Series System 28 Imperial Welding Table

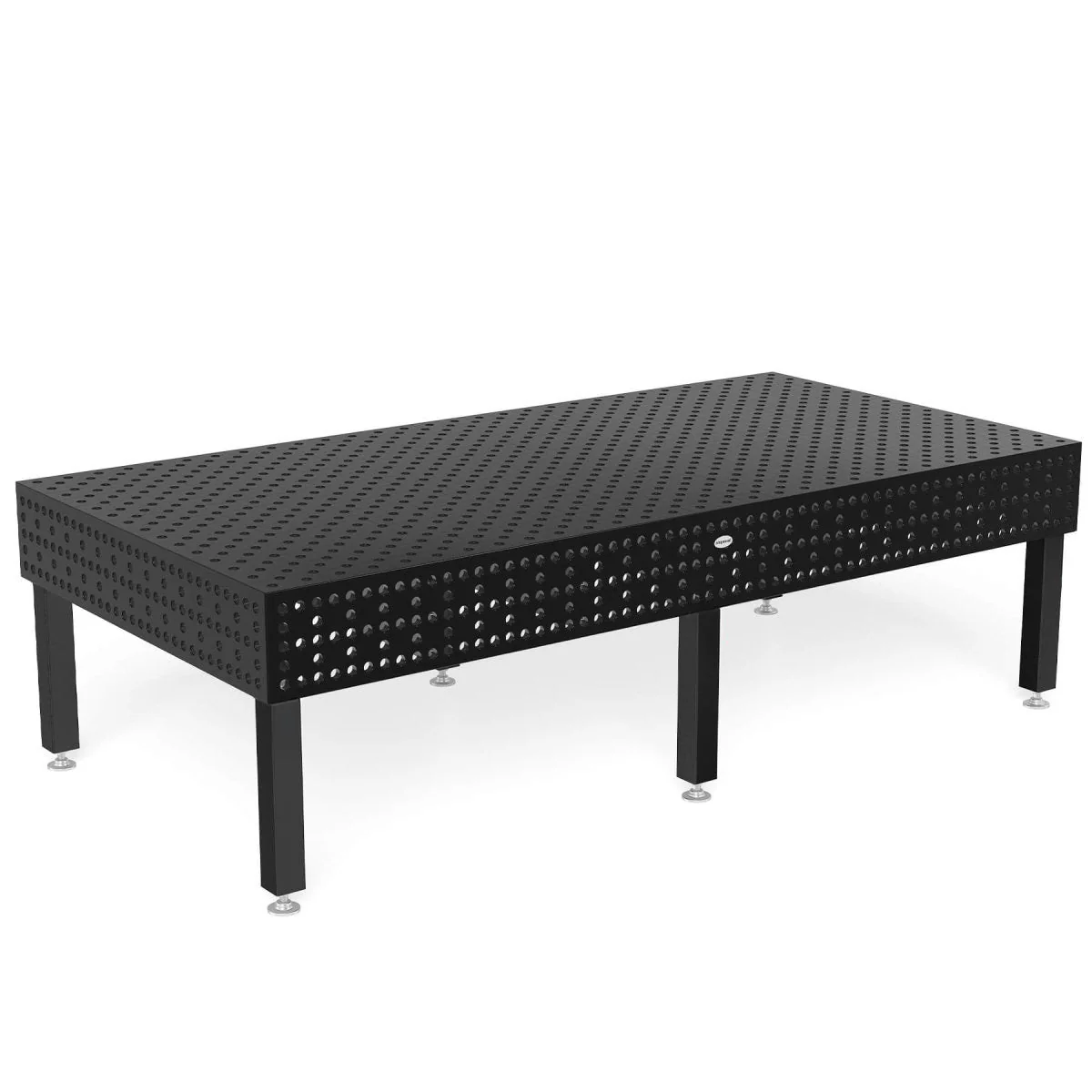

Product image 1

US280040.XD8PL: Siegmund 5'x10' (60"x120") 8.8 Plus Series System 28 Imperial Welding Table

The System 28 Welding Table Series was created with Heavy Duty Applications in Mind.

All System 28 Professional Extreme Plus tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from tough hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

Specs and Features

of the System 28, 8.8
Imperial Series Welding Tables

Specs & Features
of the System 28, 8.8 Imperial Series
Welding Tables

Welding Table Specs and Features:

  • Overall Tabletop Size: 5' x 10' (60" x 120")
  • Borehole Diameter: Ø 28mm (1-1/10")
  • Welding Table Series: Professional Extreme PLUS 8.8 Series
  • Welding Table Material Thickness: Approx. 15/16" to 1-1/16"
  • Welding Table Material Type and Finish: Professional Extreme 8.8 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
  • Table Surface Hardness: 500 – 900 Vickers
  • Official Siegmund Welding Table Part No.: US280040.XD8PL
  • Maximum Weight Load: 22,400 lbs. (Based on Even Distribution)
  • Approximate Table Weight: 3,758 lbs
  1. Boreholes on the Surface are in a Diagonal Grid Configuration.
  2. Boreholes have a diameter of 28mm (1-1/10"), Boreholes have a 1/10" Radius.
  3. Radius 1/10" on the table edges and 1/4" on the corners.
  4. Height of table side is 11-3/4" - Borehole in Diagonal Grid.
  5. INCH Scale Engraved on the Surface.
  6. Bottom of Structure has Reinforced Ribbing.

Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height

1. Standard Leg

US280853.X

6,600 lbs.

24"

36"

2. Alternative Height Leg

US280858.XX

4,400 lbs.

28"

40"

3. Height Adjustable Leg

US280877.XX

4,400 lbs.

22"-36"

34"-48"

4. Leg with Casters and
Locking Brakes

US280860.XX

1,760 lbs.

24"

36"

5. Height Adjustable Leg
with Casters and Locking Brakes

US280879.XX

1,760 lbs.

22"-30"

34"-42"
Select Table Legs
From $21,993.00
US280040.XD8PL: Siegmund 5'x10' (60"x120") 8.8 Plus Series System 28 Imperial Welding Table—
$21,993.00
