The System 16 Welding Table Series was created with Heavy Duty Applications in Mind.

All System 16 Professional Extreme Plus tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from tough hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

Items Included in Bundle #US168340.X7PL.25

for the Siegmund System 16 Imperial Series Welding Tables
(65 Piece Bundle)

Weight of Bundle: 1,823 lbs.

Get started right with your new welding table, or easily extend the capabilities of your current welding tables by purchasing a Set of Tooling dedicated to System 16 Bore Holed Siegmund 8.7 Series Welding Tables.

Items Included in Bundle #US168340.X7PL.25

for the Siegmund System 16 Imperial Series Welding Tables
(65 Piece Bundle)

Weight of Bundle: 1,823 lbs.

Accessories Included in
Set #5
for the Siegmund System 16 Welding Tables
(117 Pieces)

Total Weight of Set: 245 lbs.

Get started right with your new welding table, or easily extend the capabilities of your current welding tables by purchasing a Set of Tooling dedicated to 16mm (0.63\") Bore Holed Siegmund Welding Tables.

$\"\"$

US160040.X7PL
Quantity: 1
Siegmund System 16 8.7 5'x10' PLUS Welding Table
(Plasma Nitrided)

$\"\"$

US160610
Quantity: 8
Professional Screw Clamp (Nitrided)

$\"\"$

US160630
Quantity: 8
45°/90° Professional Screw Clamp (Burnished)

$\"\"$

US160511
Quantity: 28
Fast Clamping Bolt without Double Slot (Burnished)

$\"\"$

US160108.N
Quantity: 4
1\" X Stop and Clamping Square (Nitrided)

$\"\"$

US160110.N
Quantity: 4
3.56\" L Stop and Clamping Square

$\"\"$

US160162.N
Quantity: 4
12\" G Stop and Clamping Square (Nitrided)

$\"\"$

US160134.N
Quantity: 1
GK Left Stop And Clamping Square (Nitrided)

$\"\"$

US160136.N
Quantity: 1
GK Right Stop And Clamping Square (Nitrided)

$\"\"$

US163999
Quantity: 1
Maintenance Set

Specs and Features

of the System 16, 8.7 PLUS Imperial Series
Welding Tables

Specs & Features
of the System 16, 8.7 PLUS Imperial Series
Welding Tables

Welding Table Specs and Features:

\nOverall Tabletop Size: 5' x 10' (60\"x120\")
\nBorehole Diameter: Ø 16mm (5/8\")
\nWelding Table Series: Professional Extreme 8.7 PLUS Series
\nWelding Table Material Thickness: Approx. 7/16\" – 1/2\"
\nWelding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
\nTable Surface Hardness: 280 – 340 Vickers
\nOfficial Siegmund Welding Table Part No.: US160040.X7PL
\nMaximum Weight Load: 7,040 lbs. (Based on Even Distribution)
\nApproximate Table Weight: 1,926 lbs.

Boreholes on the surface 2\" x 2\" grid.
Boreholes have a diameter of 16mm, Boreholes have a 5/8\" Radius.
Boreholes on table side 3 rows with 1\" spacing, 2 rows with 2\" spacing
Height of table side is 7/16\" - 1/2\" - Borehole in Diagonal Grid.
INCH Scale Engraved on the Surface.
Bottom of Structure has Reinforced Ribbing.

Siegmund Welding Table Leg Options Chart

Leg Type	Item No.	Capacity Per Leg	Leg Height	Table Height
1. Standard Leg	US160853.X	2,200 lbs.	30\"	36\"
2. Alternative Height Leg	US160858.XX	2,200 lbs.	32\"	38\"
3. Height Adjustable Leg	US160877.1.XX	2,200 lbs.	22\"-38\"	28\"-44\"
4. Leg with Casters and Locking Brakes	US160860.XX	440 lbs.	30\"	36\"
5. Height Adjustable Leg with Casters and Locking Brakes	US160879.1.XX	440 lbs.	24\"-36\"	30\"-42\"

","image":["/images/weldingtablesandfixturesgear.shop/images/product/us168340-x7pl-25-siegmund-5x10-60x120-8-7-plus-series-system-16-imperial-welding-table-65-piece-bundle-2026-special-promotion-1.jpg"],"sku":"us168340-x7pl-25-siegmund-5x10-60x120-8-7-plus-series-system-16-imperial-welding-table-65-piece-bundle-2026-special-promotion","brand":{"@type":"Brand","name":"Siegmund Welding Tables"},"offers":{"@type":"AggregateOffer","lowPrice":6097,"highPrice":6470.8,"priceCurrency":"USD","availability":"https://schema.org/InStock","url":"https://weldingtablesandfixturesgear.shop/products/us168340-x7pl-25-siegmund-5x10-60x120-8-7-plus-series-system-16-imperial-welding-table-65-piece-bundle-2026-special-promotion","offerCount":5}}

Home Store

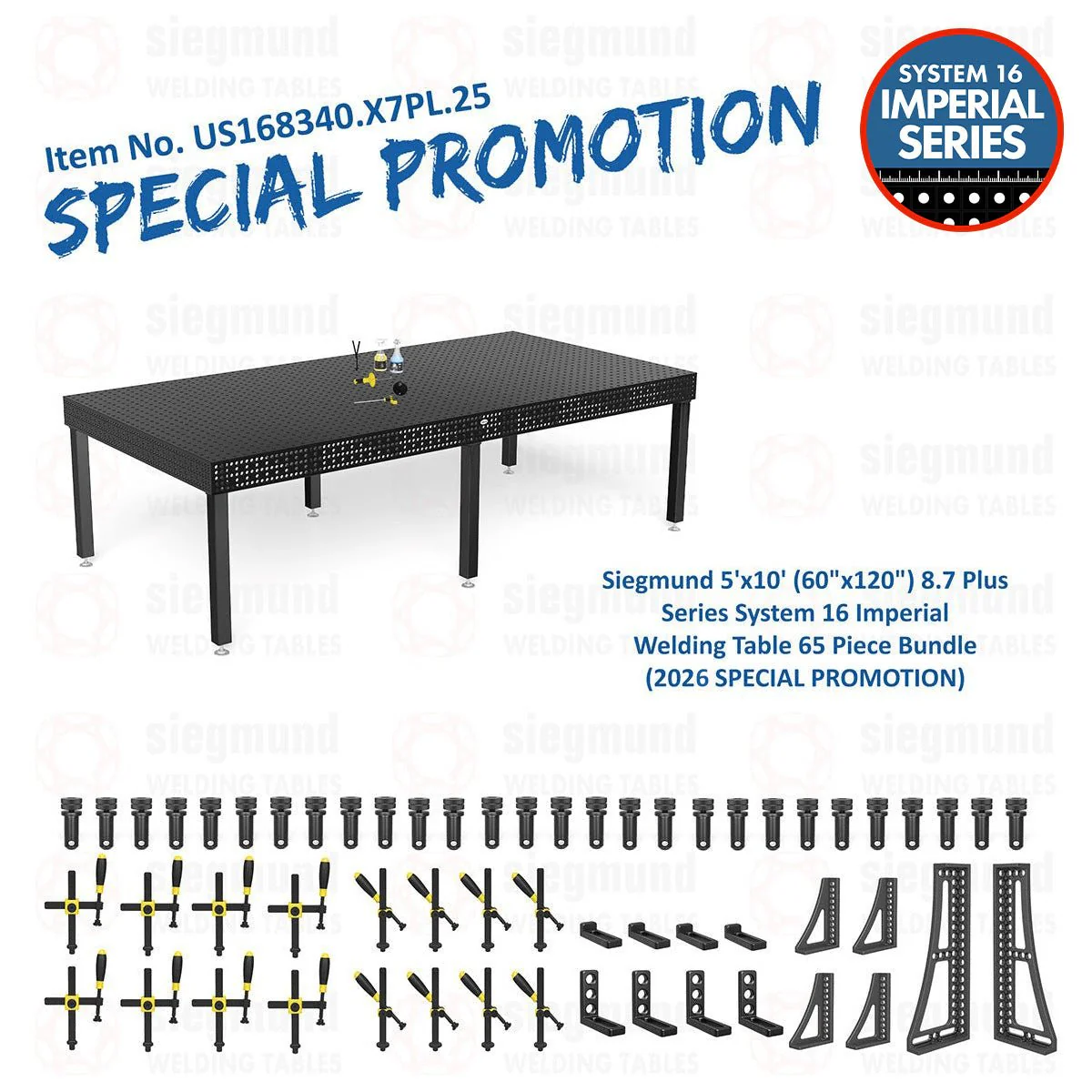

US168340.X7PL.25: Siegmund 5'x10' (60"x120") 8.7 Plus Series System 16 Imperial Welding Table 65 Piece Bundle (2026 SPECIAL PROMOTION)

US168340.X7PL.25: Siegmund 5'x10' (60"x120") 8.7 Plus Series System 16 Imperial Welding Table 65 Piece Bundle (2026 SPECIAL PROMOTION)

The System 16 Welding Table Series was created with Heavy Duty Applications in Mind.

All System 16 Professional Extreme Plus tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from tough hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

Items Included in Bundle #US168340.X7PL.25

for the Siegmund System 16 Imperial Series Welding Tables
(65 Piece Bundle)

Weight of Bundle: 1,823 lbs.

Items Included in Bundle #US168340.X7PL.25

for the Siegmund System 16 Imperial Series Welding Tables
(65 Piece Bundle)

Weight of Bundle: 1,823 lbs.

Accessories Included in
Set #5
for the Siegmund System 16 Welding Tables
(117 Pieces)

US160040.X7PL
Quantity: 1
Siegmund System 16 8.7 5'x10' PLUS Welding Table
(Plasma Nitrided)

US160610
Quantity: 8
Professional Screw Clamp (Nitrided)

US160630
Quantity: 8
45°/90° Professional Screw Clamp (Burnished)

US160511
Quantity: 28
Fast Clamping Bolt without Double Slot (Burnished)

US160108.N
Quantity: 4
1" X Stop and Clamping Square (Nitrided)

US160110.N
Quantity: 4
3.56" L Stop and Clamping Square

US160162.N
Quantity: 4
12" G Stop and Clamping Square (Nitrided)

US160134.N
Quantity: 1
GK Left Stop And Clamping Square (Nitrided)

US160136.N
Quantity: 1
GK Right Stop And Clamping Square (Nitrided)

US163999
Quantity: 1
Maintenance Set

Specs and Features

of the System 16, 8.7 PLUS Imperial Series
Welding Tables

Specs & Features
of the System 16, 8.7 PLUS Imperial Series
Welding Tables

Welding Table Specs and Features:

Overall Tabletop Size: 5' x 10' (60"x120")
Borehole Diameter: Ø 16mm (5/8")
Welding Table Series: Professional Extreme 8.7 PLUS Series
Welding Table Material Thickness: Approx. 7/16" – 1/2"
Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
Table Surface Hardness: 280 – 340 Vickers
Official Siegmund Welding Table Part No.: US160040.X7PL
Maximum Weight Load: 7,040 lbs. (Based on Even Distribution)
Approximate Table Weight: 1,926 lbs.

Boreholes on the surface 2" x 2" grid.
Boreholes have a diameter of 16mm, Boreholes have a 5/8" Radius.
Boreholes on table side 3 rows with 1" spacing, 2 rows with 2" spacing
Height of table side is 7/16" - 1/2" - Borehole in Diagonal Grid.
INCH Scale Engraved on the Surface.
Bottom of Structure has Reinforced Ribbing.

Siegmund Welding Table Leg Options Chart

Leg Type	Item No.	Capacity Per Leg	Leg Height	Table Height
1. Standard Leg	US160853.X	2,200 lbs.	30"	36"
2. Alternative Height Leg	US160858.XX	2,200 lbs.	32"	38"
3. Height Adjustable Leg	US160877.1.XX	2,200 lbs.	22"-38"	28"-44"
4. Leg with Casters and Locking Brakes	US160860.XX	440 lbs.	30"	36"
5. Height Adjustable Leg with Casters and Locking Brakes	US160879.1.XX	440 lbs.	24"-36"	30"-42"

Select Table Legs

From $6,097.00

Original: $17,420.00

-65%

US168340.X7PL.25: Siegmund 5'x10' (60"x120") 8.7 Plus Series System 16 Imperial Welding Table 65 Piece Bundle (2026 SPECIAL PROMOTION)—

$17,420.00

$6,097.00

Select Table Legs

From $6,097.00

Original: $17,420.00

-65%

US168340.X7PL.25: Siegmund 5'x10' (60"x120") 8.7 Plus Series System 16 Imperial Welding Table 65 Piece Bundle (2026 SPECIAL PROMOTION)—

$17,420.00

$6,097.00
