HomeStore

US167342.r: System 16 Workstation with "Set B" Including 2.8'x4' (32"x48") Perforated Plate & 2 Storage Drawers (Siegmund Imperial Series)

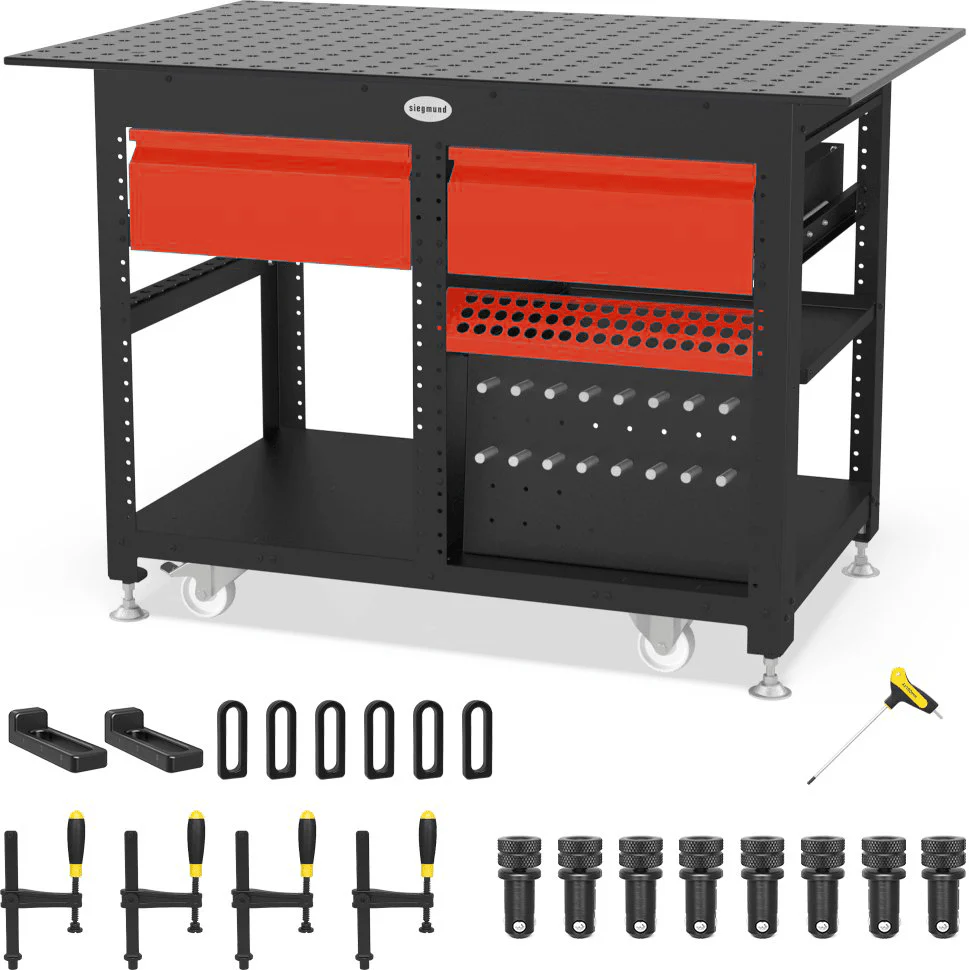

Product image 1

US167342.r: System 16 Workstation with "Set B" Including 2.8'x4' (32"x48") Perforated Plate & 2 Storage Drawers (Siegmund Imperial Series)

The Siegmund System 16 Imperial Workstation

Thanks to the intelligent concept of the Siegmund Workstation, all of your tools are always within reach at your workplace.
The Siegmund Workstation is the perfect welding platform, with more than enough space for all of your accessories.

Items Included in Bundle #US167342.r

for the Siegmund System 16 Welding Workstation

(24 Piece Bundle)

Weight of Bundle: 500 lbs.

Get started right with your new workstation, welding work bench, or easily extend the capabilities of your current setup by purchasing a Set of Tooling dedicated to 16mm (5/8") Bore Holed Siegmund Imperial Series Tables.

Accessories Included in
Set #5
for the Siegmund System 16 Welding Tables
(117 Pieces)

Total Weight of Set: 245 lbs.

Get started right with your new welding table, or easily extend the capabilities of your current welding tables by purchasing a Set of Tooling dedicated to 16mm (0.63") Bore Holed Siegmund Welding Tables.

Items Included in Bundle #US167342.r
for the Siegmund System 16
Imperial Series Workstation
(24 Piece Bundle)

Weight of Bundle: 500 lbs.

Get started right with your new workstation, welding work bench, or easily extend the capabilities of your current setup by purchasing a Set of Tooling dedicated to 16mm (5/8") Bore Holed Siegmund Imperial Series Tables.

US004002
Quantity: 1
Basic Frame for System 16 Imperial Series Workstation

US164004.X7
Quantity: 1
System 16 2.8'x4' Perforated Plate for Workstation (Plasma Nitrided)

US004100
Quantity: 1
Set of 4 Casters for
System 16 Imperial Workstation

US004230.WS.r
Quantity: 2
7-1/16" Drawer with ClIp Rail and Mounting

US004025
Quantity: 1
Tool wall with Shelf

US164035.r
Quantity: 1
Bolt and Prism Holder for System 16 Imperial Workstation

US164030
Quantity: 1
Clamp Holder for System 16 Imperial Workstation

US160852
Quantity: 1
Hex Wrench 4

US160410.N
Quantity: 6
3-3/16" L
Universal Stop
(Nitrided)

US160620.N
Quantity: 4
Basic Screw Clamp

US160108.N
Quantity: 2
1" Stop and Clamping Square (Nitrided)

US160511
Quantity: 8
Short Fast Clamping Bolt (Burnished)

PERFORATED 2.8' x 4' (32" x 48") PLATE

  • Through-Hardened X8.7 Tool Steel + Plasma Nitrided and BAR-Coated
  • 16mm (5/8") Diameter Boreholes on Surface
  • 2" x 2" Center to Center Borehole Grid Distance
  • 7/16" to 1/2" Approximate Material Thickness

WORKSTATION LEGS

  • The combined leg and caster, gives the Siegmund Workstation mobility.
  • Casters are included with this Workstation as a Standard.
  • Base Plates have a "Fine Tune Adjustment" to enable a more precise working surface.

DIRT PROTECTION

  • Two Cover Slides are below the table to protect your tools from Weld Spatter and Dirt.
  • For Cleaning, you can pull out both covers like drawers.

THE WEIGHT BEARING LOAD

  • The Siegmund Workstation with base plate is able to bear a total weight of approximately 2,200 lbs.
  • Please note that when you are using the caster wheels, the overall weight load capacity is reduced to approximately 880 lbs.

MAXIMUM STORAGE

  • The Siegmund Workstation features defined storage for tooling and accessories that can be shelved for easy reach.
  • You can customize, build or retrofit your Workstation with drawers at various height to increase your storage capability.
  • "Upgrading" your workstation with more drawers is possible at any time. On the left and right side, you have 23-5/8" spacing.
  • The maximum weight load capacity per drawer is approximately 110 lbs.

Specs and Features

of the System 16 Imperial Series Workstation

Item No. US167342.r

Specs & Features
of the System 16 Imperial Series
Workstations

Welding Table Specs and Features:

  • Overall Tabletop Size: 2.8' x 4' (32" x 48")
  • Overall Height of Workstation: 33"
  • Borehole Diameter: Ø 16mm (5/8")
  • Welding Table Series: Professional Extreme 8.7 Series
  • Welding Table Material Thickness: Approx. 7/16" to 1/2"
  • Welding Table Material Type and Finish: Through Hardened Tool Steel, Plasma Nitrided and BAR-Coated
  • Maximum Weight Load Not Using Casters: 2,200 lbs. (Based on Even Distribution)
  • Maximum Weight Load Using Casters: 880 lbs. (Based on Even Distribution)
  • Approximate Workstation Weight: 360 lbs.
  • Boreholes on the Surface: are a 2"x2" Inch Grid Configuration.
$3,949.00
US167342.r: System 16 Workstation with "Set B" Including 2.8'x4' (32"x48") Perforated Plate & 2 Storage Drawers (Siegmund Imperial Series)—
$3,949.00
