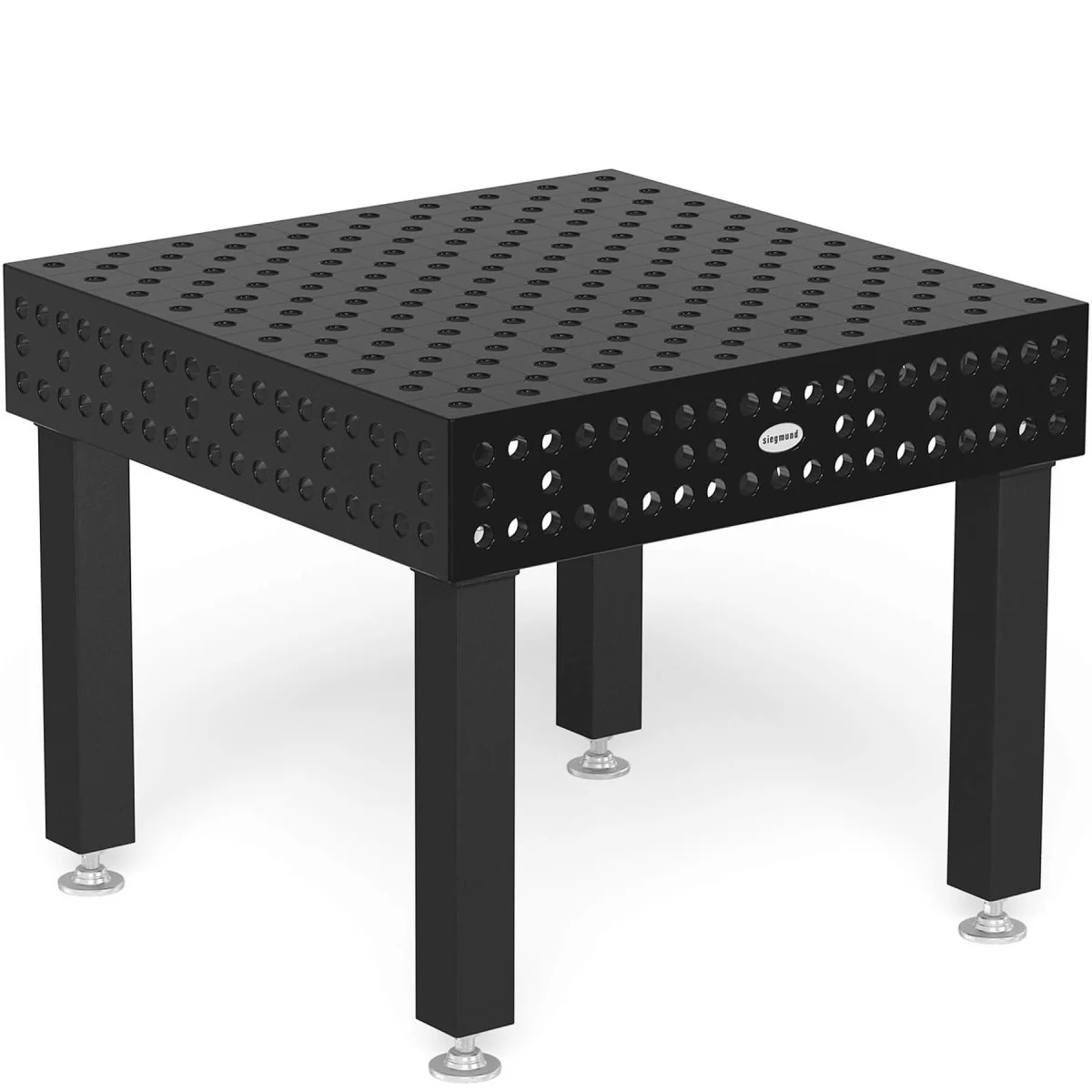

(Image is of a Siegmund System 28 8.7 Series Welding Table. This is being shown as an example.)
(Image is of a Siegmund System 28 8.7 Series Welding Table. This is being shown as an example.)
\n The System 28 Welding Table Series was created with Heavy Duty Applications in Mind.
All System 28 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.
The System 28 Welding Table Series was created with Heavy Duty Applications in Mind.
All System 28 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.
Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.
\n
\n
Specs and Features
of the System 28, 8.7 Welding Tables
\n \n
Specs & Features
of the System 28, 8.7 Metric Series
Welding Tables
\n
\n
Welding Table Specs and Features:
- Overall Tabletop Size: 1000 x 1000 x 200mm
- Borehole: Ø 28mm (1.10\")
- Welding Table Series: Professional Extreme 8.7 Series
- Welding Table Material Thickness: Approx. 24.5 – 27mm (0.96\" - 1.06\")
- Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
- Table Surface Hardness: 450-850 Vickers
- Official Siegmund Welding Table Part No.: 4-280010.XD7D
- Maximum Weight Load: 10,876 lbs. (Based on Even Distribution)
- Approximate Table Weight: 881 lbs. / 400 kg.
- Boreholes on the Surface are in a Diagonal Grid Configuration.
- Boreholes have a radius of 3mm (0.118\").
- Radius 3mm (0.118\") / 6mm (0.236\") on table edges and corners.
- Height of table side 200mm (7.87\") - Borehole spacing of table side 50mm (1.96\")
- Metric Scaling on the surface.
- Construction reinforced with ribbing.
- The materials used are fundamental to the high level of hardness and long service life.
- With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
- Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
\n
\nSiegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.\n
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.\n
\n
\n
Welding Table Leg Options
Part Numbers, Specs and Pricing
\n \n
Welding Table Leg Options
Part Numbers, Specs and Pricing
\n
\n
Siegmund Welding Table Leg Options Chart
| Leg Type | Item No. | Capacity Per Leg | Leg Height | Table Height |
| 1. Standard Leg | 2-280858.X | 4,400 lbs. | 25.6\" / 650mm | 33.4\" / 850mm |
| 2. Standard Leg | 2-280857.X | 4,400 lbs. | 29.5\" / 750mm | 37.4\" / 950mm |
| 3. Height Adjustable Leg | 4-280878.XX | 4,400 lbs. | 17.7\"-27.5\" / 450-700mm | 25.6\"-35.4\" / 650-900mm |
| 4. Height Adjustable Leg | 4-280877.XX | 4,400 lbs. | 21.65\"-35.4\" / 550-900mm | 29.5\"-43.3\" / 750-1,100mm |
| 5. Leg with Casters and | 4-280876.XX | 1,760 lbs. | 25.6\" / 650mm | 33.4\" / 850mm |
| 6. Height Adjustable Leg | 4-280879.XX | 1,760 lbs | 21.6\"-29.5\" / 550-750mm | 29.5\"-37.4\" / 750-950mm |
| 7. Floor Anchoring Leg | 4-280874.XX | 4,400 lbs. | 25.6\" / 650mm | 33.4\" / 850mm |
