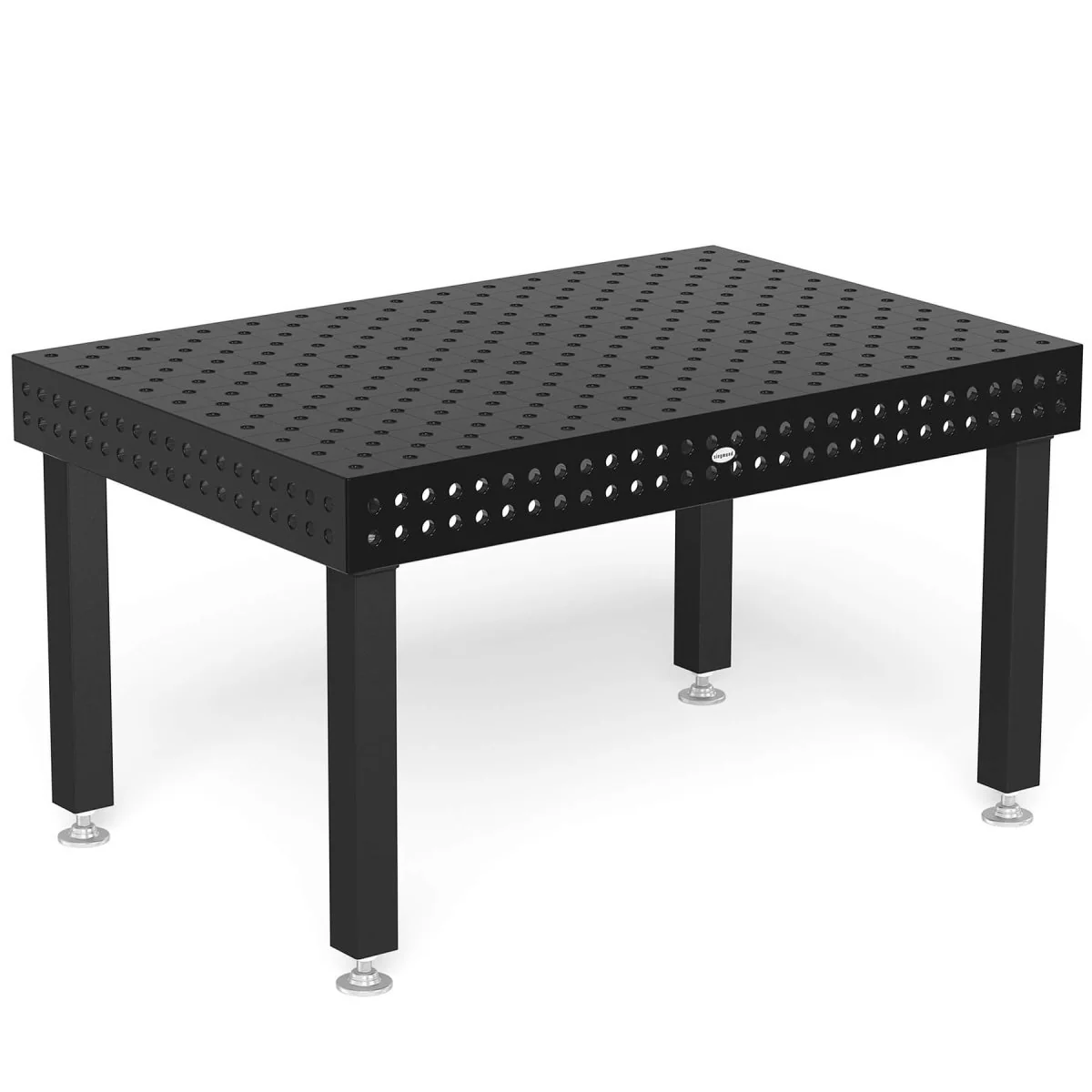

(Image is of a Siegmund System 22 Professional 8.7 Series, 3000x1500 Welding Table with a Siegmund Accessory Kit. These items are not included. This is being shown as an example.)
(Image is of a Siegmund System 22 Professional 8.7 Series, 3000x1500 Welding Table with a Siegmund Accessory Kit. These items are not included. This is being shown as an example.)
\n
The All-New System 22 Welding Table Series are more stable than the System 16 Series & More Cost-Effective than the System 28 Series Welding Tables.
All System 22 Siegmund Welding Tables feature the latest upgrades in aesthetics, versatility, and durability.
\n
Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 steel, specially made for Siegmund, has a considerably higher basic hardness as the previously used fine-grained S355J2+N (St 52/3).
The top plate achieves a hardness of about 750 vickers after the plasma nitration and the BAR-Treatment. The higher basic hardness maintains the flatness much better than the previously used steel.
Click Here to Review a Siegmund Welding Table Series Comparison
\n
\n
Specs and Features
of the System 22, Professional 750 Series Welding Tables
\n \n
Specs & Features
of the System 22, 8.7 Series Welding Tables
\n
\n
Welding Table Specs and Features:
- \nOverall Tabletop Size: 1,500x1,000mm
- \nBorehole Diameter Size: Ø 22mm (0.86\")
- \nWelding Table Series: Professional 8.7 Series
- \nWelding Table Material Thickness: Approx. 17 – 19mm (0.66\" - 0.75\")
- \nWelding Table Material Type and Finish: This Welding Table is manufactured of high quality S355J2+N Tool Steel, Plasma Nitrided and BAR-Coated.
- \nTable Surface Hardness: 280 – 340 Vickers
- \nOfficial Siegmund Welding Table Part No.: 4-220035.XD7
- \nMaximum Weight Load: 7,892 lbs. (Based on Even Distribution)
- \nApproximate Table Weight: 908 lbs. / 412 kg.

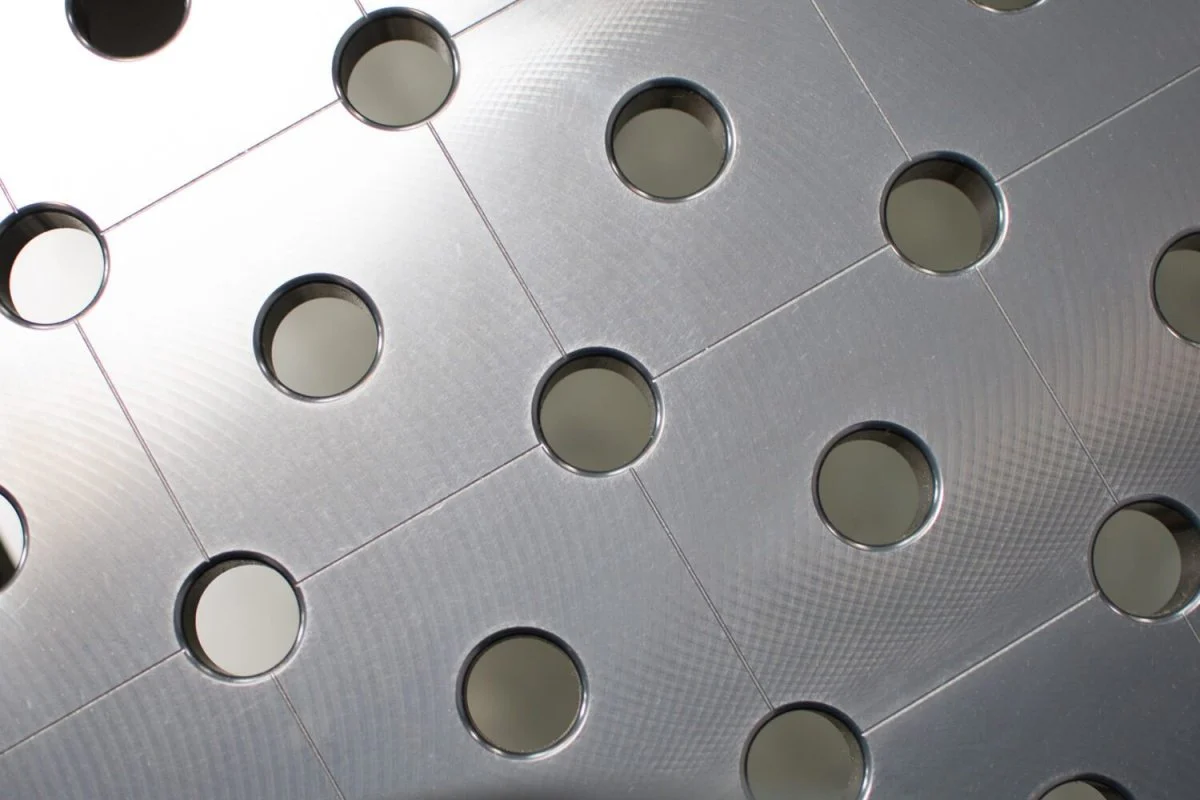

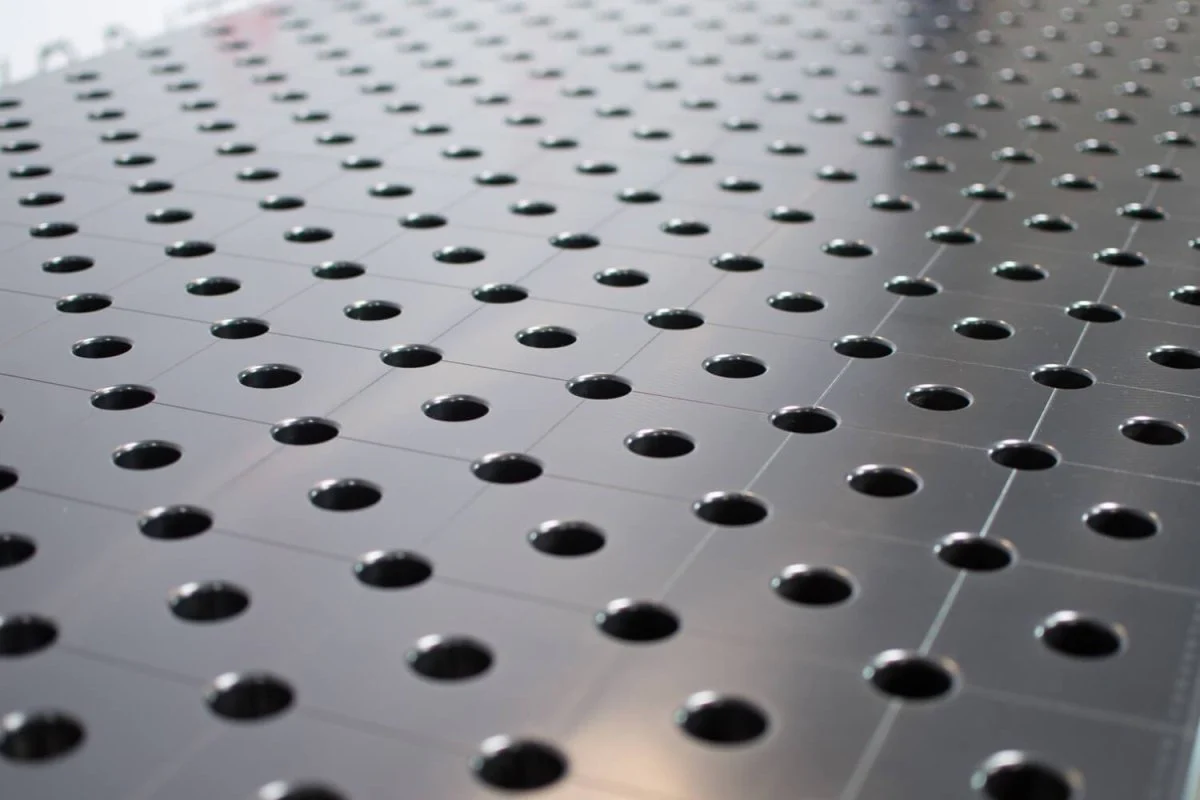

- Boreholes on the Surface are in a Diagonal Grid Configuration.
- Boreholes are Ø 22mm (0.86\") .
- Corners, edges and boreholes rounded.
- Height of table side 150mm (5.90\")

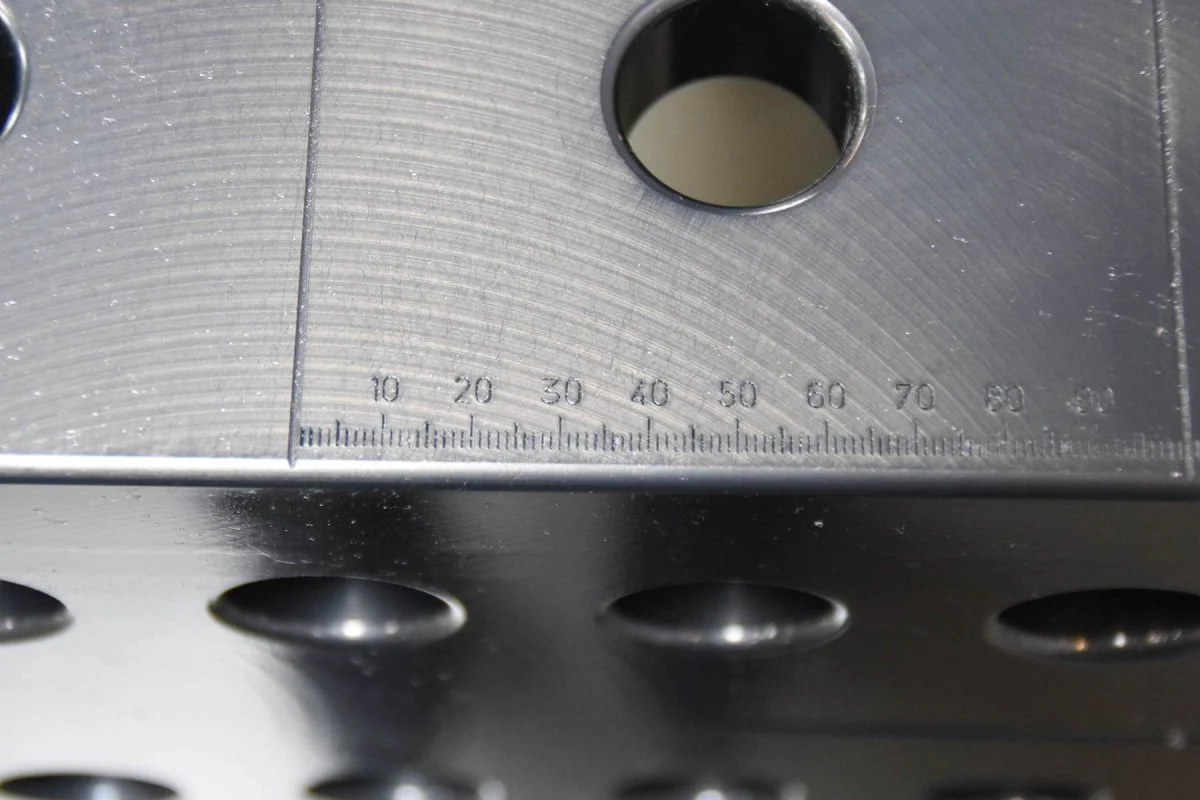

- Metric Scaling on the surface.
- Construction reinforced with ribbing.
\n
\n
Welding Table Leg Options
Part Numbers, Specs and Pricing
\n \n
Welding Table Leg Options
Part Numbers, Specs and Pricing
\n

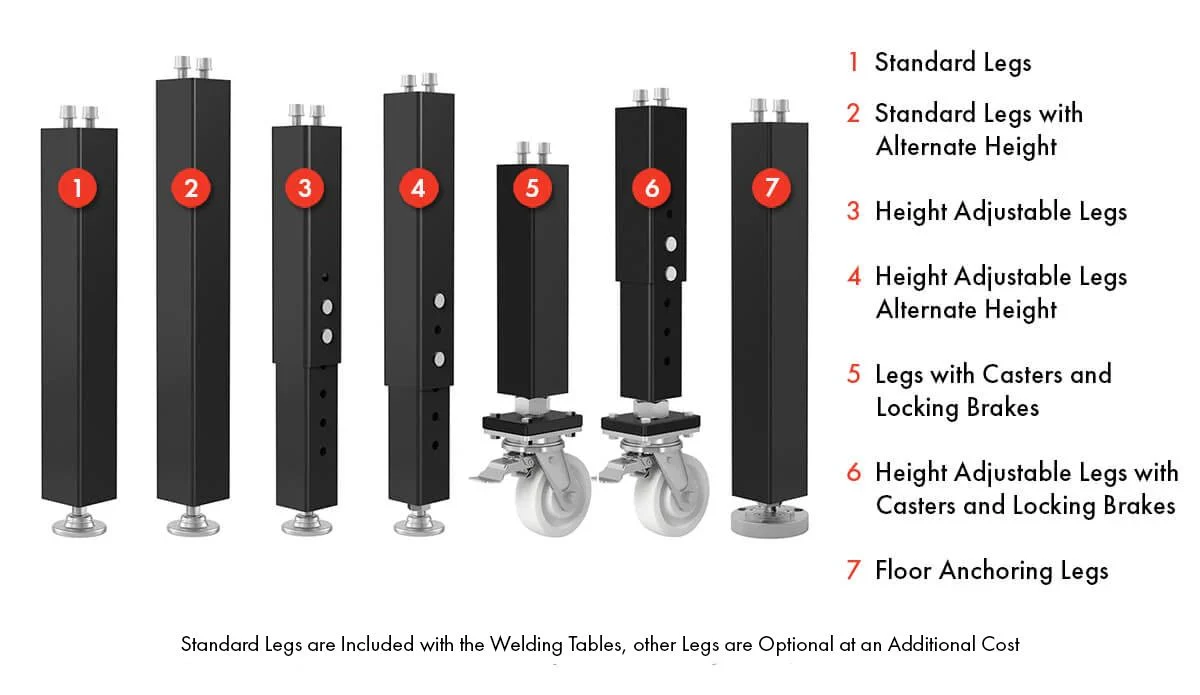

Siegmund Welding Table Leg Options Chart
| Leg Type | Item No. | Capacity Per Leg | Leg Height | Table Height | Cost Per Leg |
| 1. Standard Leg | 2-220858 | 3,300 lbs. | 27.5\" / 700mm | 33.4\" / 850mm | Included |
| 2. Standard Leg | 2-220857.X | 3,300 lbs. | 31.5\" / 800mm | 37.4\" / 950mm | $0 |
| 3. Height Adjustable Leg | 2-220878.XX | 2,200 lbs. | 19.68\"-31.5\" / 500-800mm | 25.6\"-37.4\" / 650-950mm | $125 |
| 4. Height Adjustable Leg | 2-220877.XX | 2,200 lbs. | 21.65\"-35.4\" / 550-900mm | 27.5\"-41.3\" / 700-1,050mm | $127 |
| 5. Leg with Casters and | 2-220866.XX | 1,760 lbs. | 27.5\" / 700mm | 33.4\" / 850mm | $174 |
| 6. Height Adjustable Leg | 2-220879.XX | 1,760 lbs. | 23.6\"-33.4\" / 600-850mm | 29.5\"-39.37\" / 750-1,000mm | $210 |
| 7. Floor Anchoring Leg | 2-220874.XX | 3,300 lbs. | 27.5\" / 700mm | 33.4\" / 850mm | $98 |
\n
Siegmund System 22 Welding Table Leg Options - Full Specifications
\n
\n
1. Standard Siegmund Leg(s)
- \nItem No.: 2-220858
- \nLeg Height: 27.5\" / 700mm
- \nTable Height: 33.4\" / 850mm

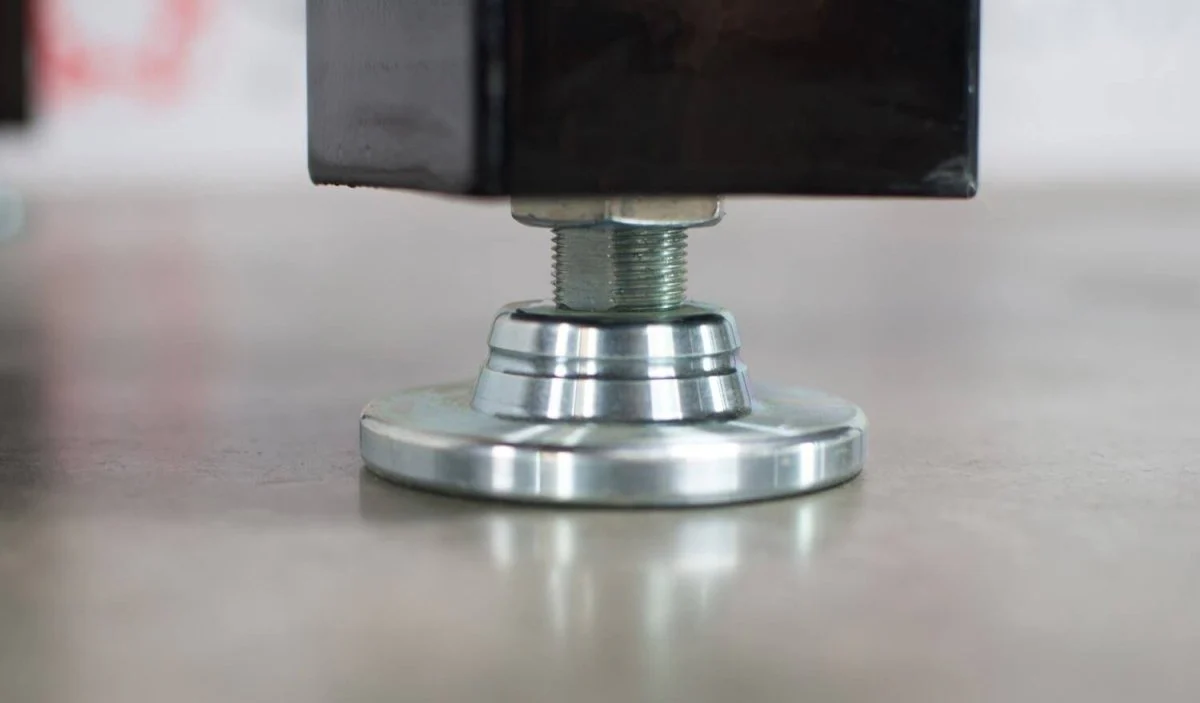

- \nFine Adjustment: 1.96\" / 50mm
- \nCapacity Per Table Leg: 3,300 lbs.
- \nCost Per Leg: $0 (Included with Welding Table as a Standard)
- \nCost Per 4 Leg Set: $0 (Included with Welding Table as a Standard)
\n
\n
2. Standard Siegmund Leg(s) \"Alternative Height\"
- \nItem No.: 2-220857.X
- \nLeg Height: 31.5\" / 800mm
- \nTable Height: 37.4\" / 950mm
- \nFine Adjustment: 1.96\" / 50mm
- \nCapacity Per Table Leg: 3,300 lbs.
- \nCost Per Leg: $0 (Can be substituted with Purchase of Table in place of the \"Standard Siegmund Legs\".)
- \nCost Per 4 Leg Set: $0
\n
\n
3. Height Adjustable Siegmund Leg(s)
- \nItem No.: 2-220878.XX
- \nLeg Height (Adjustable): 19.68\" - 31.5\" / 500mm - 800mm
- \nTable Height (Adjustable): 25.6\" - 37.4\" / 650mm - 950mm
- \nFine Adjustment: 1.96\" / 50mm
- \nCapacity Per Table Leg: 2,200 lbs.
- \nCost Per Leg: $125
- \nCost Per 4 Leg Set: $500
\n
\n
4. Height Adjustable Siegmund Leg(s) \"Alternate Height\"
- \nItem No.: 2-220877.XX
- \nLeg Height (Adjustable): 21.65\" - 35.4\" / 550mm - 900mm
- \nTable Height (Adjustable): 27.5\" - 41.3\" / 700mm - 1,050mm
- \nFine Adjustment: 1.96\" / 50mm
- \nCapacity Per Table Leg: 2,200 lbs.
- \nCost Per Leg: $127
- \nCost Per 4 Leg Set: $508
\n
\n
5. Siegmund Leg(s) with Casters and Locking Brakes
- \nItem No.: 2-220866.XX
- \nLeg Height: 27.5\" / 700mm
- \nTable Height: 33.4\" / 850mm
- \nFine Adjustment: 0.78\" / 20mm
- \nCapacity Per Table Leg: 1,760 lbs.
- \nCost Per Leg: $174
- \nCost Per 4 Leg Set: $696
- \nNote: These welding table legs that are equipped with casters and locking brakes are generally not recommended for Welding Tables with 6 or 8 Table Leg Configurations.
\n
\n
6. Height Adjustable Leg(s) with Casters and Locking Brakes
- \nItem No.: 2-220879.XX
- \nLeg Height (Adjustable): 23.6\" - 33.4\" / 600mm - 850mm
- \nTable Height (Adjustable): 29.5\" - 39.37\" / 750mm - 1,000mm
- \nFine Adjustment: 0.78\" / 20mm
- \nCapacity Per Table Leg: 1,760 lbs.
- \nCost Per Leg: $210
- \nCost Per 4 Leg Set: $840
- \nNote: These welding table legs that are equipped with casters and locking brakes are generally not recommended for Welding Tables with 6 or 8 Table Leg Configurations.
\n
\n
7. Siegmund Leg(s) for Floor Anchoring
- \nItem No.: 2-220874.XX
- \nLeg Height: 27.5\" / 700mm
- \nTable Height: 33.4\" / 850mm
- \nFine Adjustment: 1.96\" / 50mm
- \nCapacity Per Table Leg: 3,300 lbs.
- \nCost Per Leg: $98
- \nCost Per 4 Leg Set: $392
\n
