(Image is of a Siegmund System 16 Professional 750 Series, Welding Table. These items are not included. This is being shown as an example.)

\n

The All-New System 16 Welding Table Series are stable
Cost-Effective Welding Tables.

All System 16 Siegmund Welding Tables feature the latest upgrades in aesthetics, versatility, and durability.


\"\"
\n

Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.

The hardened X7 steel, specially made for Siegmund, has a considerably higher basic hardness as the previously used fine-grained S355J2+N (St 52/3).

The top plate achieves a hardness of about 750 vickers after the plasma nitration and the BAR-Treatment. The higher basic hardness maintains the flatness much better than the previously used steel.


\"\"

Click Here to Review a Siegmund Welding Table Series Comparison

\n
\n

Specs and Features

of the System 16, Professional 750 Series Welding Tables

\n
\n

Specs & Features
of the System 16, 750 Series Welding Tables


\"\"

\n
\n

Welding Table Specs and Features:

  • \nOverall Tabletop Size: 2,000x1,000mm
  • \nBorehole Diameter Size: Ø 16 mm (0.86\")
  • \nWelding Table Series: Professional 750 Series
  • \nWelding Table Material Thickness: Approx. 11.5 – 13mm
  • \nWelding Table Material Type and Finish: This Welding Table is manufactured of high quality S355J2+N Tool Steel, Plasma Nitrided and BAR-Coated.
  • \nOfficial Siegmund Welding Table Part No.: 4-160020.P
  • \nMaximum Weight Load: 3,755 lbs. (Based on Even Distribution)
  • \nApproximate Table Weight: 780 lbs. / 354 kg.
  1. Boreholes on the Surface are in a Diagonal Grid Configuration.
  2. Borehole 16mm
  3. Corners, edges and boreholes rounded
  4. Height of Table 100 mm
  5. Metric Scaling on the surface.
  6. Construction reinforced with ribbing.
\n

\n
\n

Welding Table Leg Options

Part Numbers, Specs and Pricing

\n
\n

Welding Table Leg Options
Part Numbers, Specs and Pricing

\"\"

Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height Cost Per Leg

1. Standard Leg

2-160858

2,200 lbs.

27.5\" / 700mm

33.4\" / 850mm

Included

2. Standard Leg
\"Alternate Height\"

2-160857.X

2,200 lbs.

31.5\" / 800mm

37.4\" / 950mm

$0

3. Height Adjustable Leg

2-160878.XX

2,200 lbs.

19.68\"-31.5\" / 500-800mm

25.6\"-37.4\" / 650-950mm

$102

4. Height Adjustable Leg
\"Alternate Height\"

2-160877.XX

2,200 lbs.

21.65\"-35.4\" / 550-900mm

27.5\"-41.3\" / 700-1,050mm

$112

5. Height Adjustable Leg
with Casters and Locking Brakes

2-160879.XX

1,760 lbs.

23.6\"-33.4\" / 600-850mm

29.5\"-39.37\" / 750-1,000mm

$169

6. Floor Anchoring Leg

2-160875.XX

2,200 lbs.

27.5\" / 700mm

33.4\" / 850mm

$98


Siegmund System 16 Welding Table Leg Options - Full Specifications


\n
\n

1. Standard Siegmund Leg(s)

  • \nItem No.: 2-160858
  • \nLeg Height: 27.5\" / 700mm
  • \nTable Height: 33.4\" / 850mm
  • \nFine Adjustment: 1.57\" / 40mm
  • \nCapacity Per Table Leg: 2,200 lbs.
  • \nCost Per Leg: $0 (Included with Welding Table as a Standard)
  • \nCost Per 4 Leg Set: $0 (Included with Welding Table as a Standard)
\n
\n
\n
2. Standard Siegmund Leg(s) \"Alternative Height\"
  • \nItem No.: 2-160857.X
  • \nLeg Height: 31.5\" / 800mm
  • \nTable Height: 37.4\" / 950mm
  • \nFine Adjustment: 1.57\" / 40mm
  • \nCapacity Per Table Leg: 2,200 lbs.
  • \nCost Per Leg: $0 (Can be substituted with Purchase of Table in place of the \"Standard Siegmund Legs\".)
  • \nCost Per 4 Leg Set: $0
\n
\n
\n

3. Height Adjustable Siegmund Leg(s)

  • \nItem No.: 2-160878.XX
  • \nLeg Height (Adjustable): 19.68\" - 31.5\" / 500mm - 800mm
  • \nTable Height (Adjustable): 25.6\" - 37.4\" / 650mm - 950mm
  • \nFine Adjustment: 1.57\" / 40mm
  • \nCapacity Per Table Leg: 2,200 lbs.
  • \nCost Per Leg: $102
  • \nCost Per 4 Leg Set: $408
\n
\n
\n

4. Height Adjustable Siegmund Leg(s) \"Alternate Height\"

  • \nItem No.: 2-160877.XX
  • \nLeg Height (Adjustable): 21.65\" - 35.4\" / 550mm - 900mm
  • \nTable Height (Adjustable): 27.5\" - 41.3\" / 700mm - 1,050mm
  • \nFine Adjustment: 1.18\" / 30mm
  • \nCapacity Per Table Leg: 400 lbs.
  • \nCost Per Leg: $112
  • \nCost Per 4 Leg Set: $448
\n
\n
\n

5. Height Adjustable Leg(s) with Casters and Locking Brakes

  • \nItem No.: 2-160879.XX
  • \nLeg Height (Adjustable): 23.6\" - 33.4\" / 600mm - 850mm
  • \nTable Height (Adjustable): 29.5\" - 39.37\" / 750mm - 1,000mm
  • \nFine Adjustment: 1.18\" / 30mm
  • \nCapacity Per Table Leg: 440 lbs.
  • \nCost Per Leg: $169
  • \nCost Per 4 Leg Set: $676
  • \nNote: These welding table legs that are equipped with casters and locking brakes are generally not recommended for Welding Tables with 6 or 8 Table Leg Configurations.
\n
\n
\n

6. Siegmund Leg(s) for Floor Anchoring

  • \nItem No.: 2-160875.XX
  • \nLeg Height: 27.5\" / 700mm
  • \nTable Height: 33.4\" / 850mm
  • \nFine Adjustment: 1.96\" / 50mm
  • \nCapacity Per Table Leg: 2,200 lbs.
  • \nCost Per Leg: $98
  • \nCost Per 4 Leg Set: $392
\n

\n
\n

System 16 Accessory Sets

The Most Popular Siegmund Accessory Bundles

\n
\n

System 16 Accessory Sets
The Most Popular Siegmund Accessory Bundles


\"Set

Sold out

Sold out
\"Set

Sold out

Sold out
\"Set

Sold out

\"\"

\n
\n

Featured Siegmund Videos

of the System 16 Welding Tables

\n
\n

Featured Siegmund Videos
of the System 16 Welding Tables


\n

Impact Test Standard Weld Table vs Siegmund Weld Table



\n

Why Our Welding Tables are Plasma Nitrided



\n

The Strength of a Siegmund Welding Table



\n

A Visit with Siegmund


\n
\n

This Month's

Featured Siegmund Welders

\n
\n

This Month's
Featured Siegmund Welders


Greg from Red Beard's Garage

Red Beard’s Garage is world famous and has over 440,000+ Youtube Subscribers!
Red Beard (Greg) and his team builds all types of Go-Karts and definitely have a blast doing it - so be sure to follow their channel on Youtube.
Red Beard’s Garage solely trusts Quantum Machinery and Siegmund to supply and support all of their Welding Table and Fixturing needs!
(There is bound to be something that will “tickle your fancy”! )


\n
\n


Jeff Lutz (Lutz Race Cars) from Street Outlaws

Jeff Lutz (Lutzs Race Cars) from Street Outlaws is world famous and has over 580,000+ Instagram Followers and over 583,000+ Facebook Fans and is currently filming with his Siegmund table on the Discover Channel! When he received his Siegmund Welding Table and Accessories from us, he had nothing but the best things to say, \"Wow it is amazing!\" and after spending a few weeks with it, Jeff wrote on his instagram that his Siegmund Welding Table makes fixturing everything so much easier for him and his team!


\"\"

\"\"

Here is a video of Jeff Lutz in a drag race, for your own entertainment!


\n
\n

Contact a Siegmund Expert

Feel free to contact us today to place an order or let us know
if you have any questions about any Siegmund's Products.

\n
\n
\n
Contact a Siegmund Expert
Feel free to contact us today to place an order or let us know if you have any questions about any Siegmund's Products.
\n

Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.

Phone: (909)476-8007
Email: [email protected]

Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.

Phone: (704)703-9400      Email: [email protected]


If you would like for us to contact you, simply fill out the form below and one of our Siegmund Experts will be in contact with you shortly.

Thanks!
This field is required
This field is required
This field is required
This field is required
This field is required
This field is required
","image":["/images/weldingtablesandfixturesgear.shop/images/product/4-160020-p-siegmund-2-000x1-000mm-750-series-system-16-welding-table-1.png"],"sku":"4-160020-p-siegmund-2-000x1-000mm-750-series-system-16-welding-table","brand":{"@type":"Brand","name":"Siegmund Welding Tables"},"offers":{"@type":"AggregateOffer","lowPrice":5539,"highPrice":6247,"priceCurrency":"USD","availability":"https://schema.org/InStock","url":"https://weldingtablesandfixturesgear.shop/products/4-160020-p-siegmund-2-000x1-000mm-750-series-system-16-welding-table","offerCount":6}}
HomeStore

4-160020.P: Siegmund 2,000x1,000mm 750 Series System 16 Welding Table

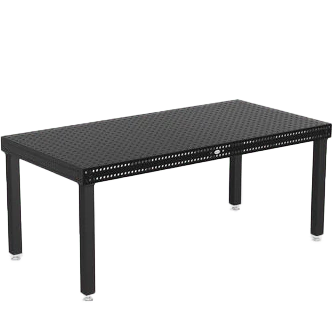

Product image 1
