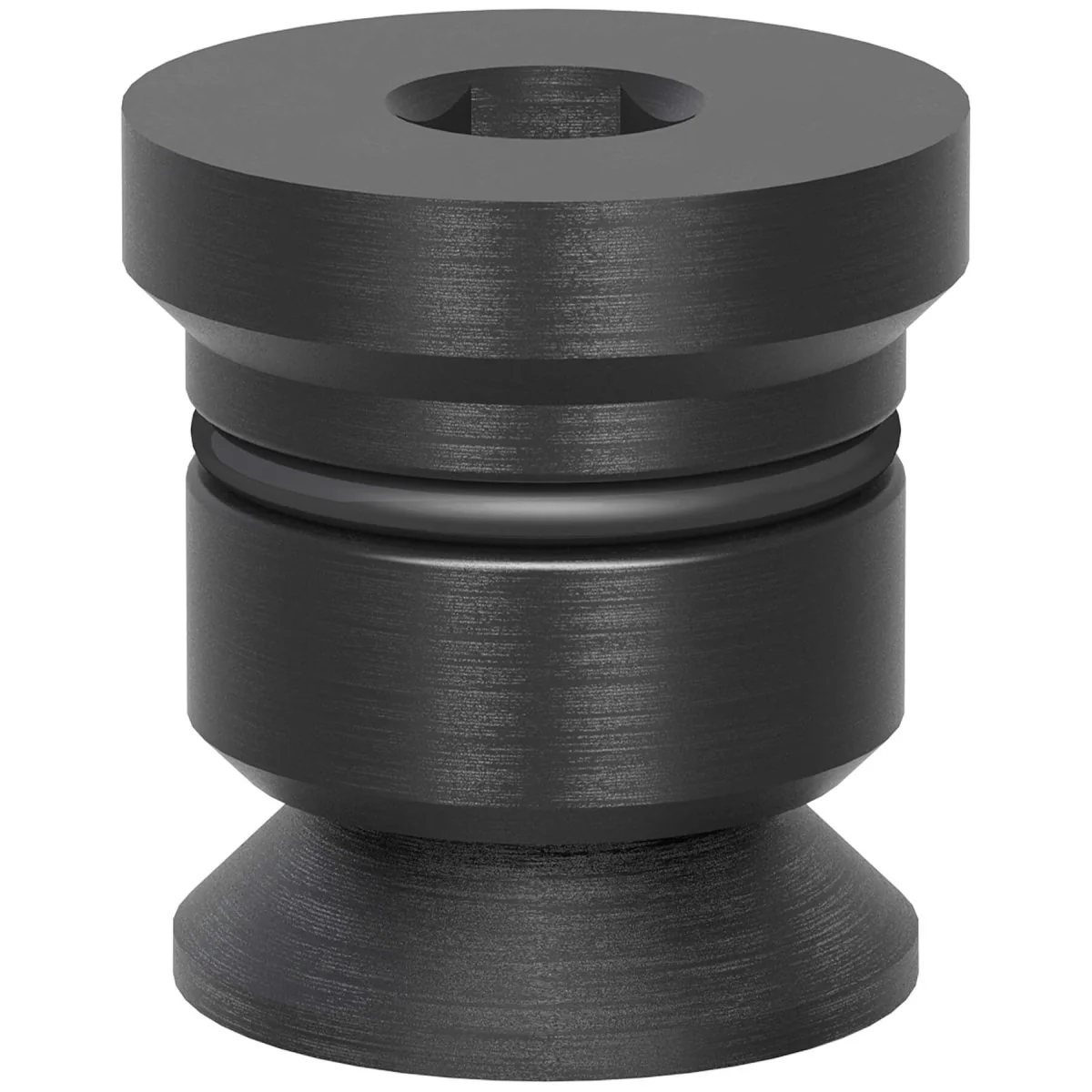

2-800560: Siegmund Light Connecting Bolt (Burnished)

The Siegmund Light Connecting Bolt, especially designed especially designed to connect Siegmund Premium Light tables and components (Material thickness 15 mm) using the system boreholes.

Specs and Features:
- Item No. 2-800560
- Burnished
- With Hexagon Socket (At The Top / At The Bottom Size 10)
- Length: 26mm (1.02'')
- Diameter: 28mm (1.10'')
- Shearing Force: 200kN
- Tightening Torque Steel: 25Nm
- Tensile Force: 10kN
- Weight: 0.33 Ibs. (0.15kg)
