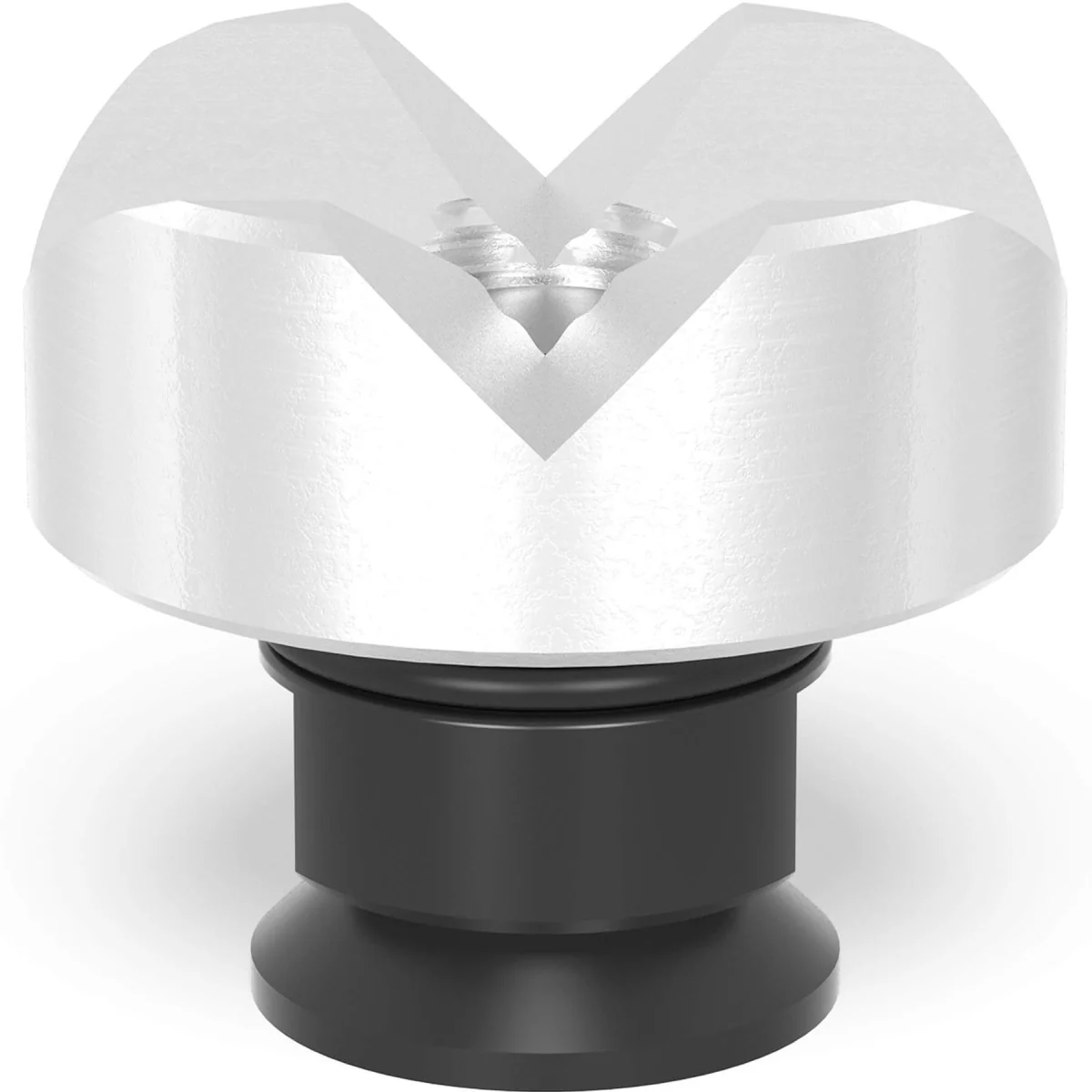

The 2-280645.1.A Vario Prism Ø50 90°/120° with screwed-in collar is a lightweight, corrosion-resistant clamping prism designed for Siegmund System 28 setups. Constructed from aluminum, it reduces handling weight while maintaining secure and precise positioning for pipes and profiles. Its dual-angle geometry increases versatility for different clamping applications.
- The 50mm (1.97" Inches) diameter base delivers solid positioning.
- Its 20mm (0.79" Inches) height provides compact, stable alignment.
- Weighing just 0.15 lbs. (0.07 kg.), it minimizes operator fatigue.
- Dual 90°/120° angles secure both pipes and 45° twisted square profiles up to 50mm (1.97" Inches).
- The M16 screwed-in collar allows fastening in boreholes or quick repositioning.
- Working height can be adjusted with prism extensions for added flexibility.
Key Features:
- Lightweight aluminum design reduces handling effort.
- Rust-resistant finish ensures long-term durability.
- Dual-angle geometry supports both pipes and twisted profiles.
- M16 collar thread allows adjustable fastening and height extension.
- Fully compatible with Siegmund System 28 boreholes and clamps.
Specifications:
- Item No.: 2-280645.1.A
- System: Siegmund System 28 Metric Series
- Height: 20mm (0.79" Inches)
- Diameter: 50mm (1.97" Inches)
- Weight: 0.15 lbs. (0.07 kg.)
- Material: Aluminum
- Thread: M16 (for use with prism extensions, e.g., Item No. 280649)
Common Uses:
The 2-280645.1.A Vario Prism Ø50 Aluminum is used for clamping both round pipes and twisted square profiles where lightweight handling and corrosion resistance are essential. Its dual-angle geometry ensures adaptability, while the M16 collar thread provides flexible positioning in Siegmund System 28 setups.
