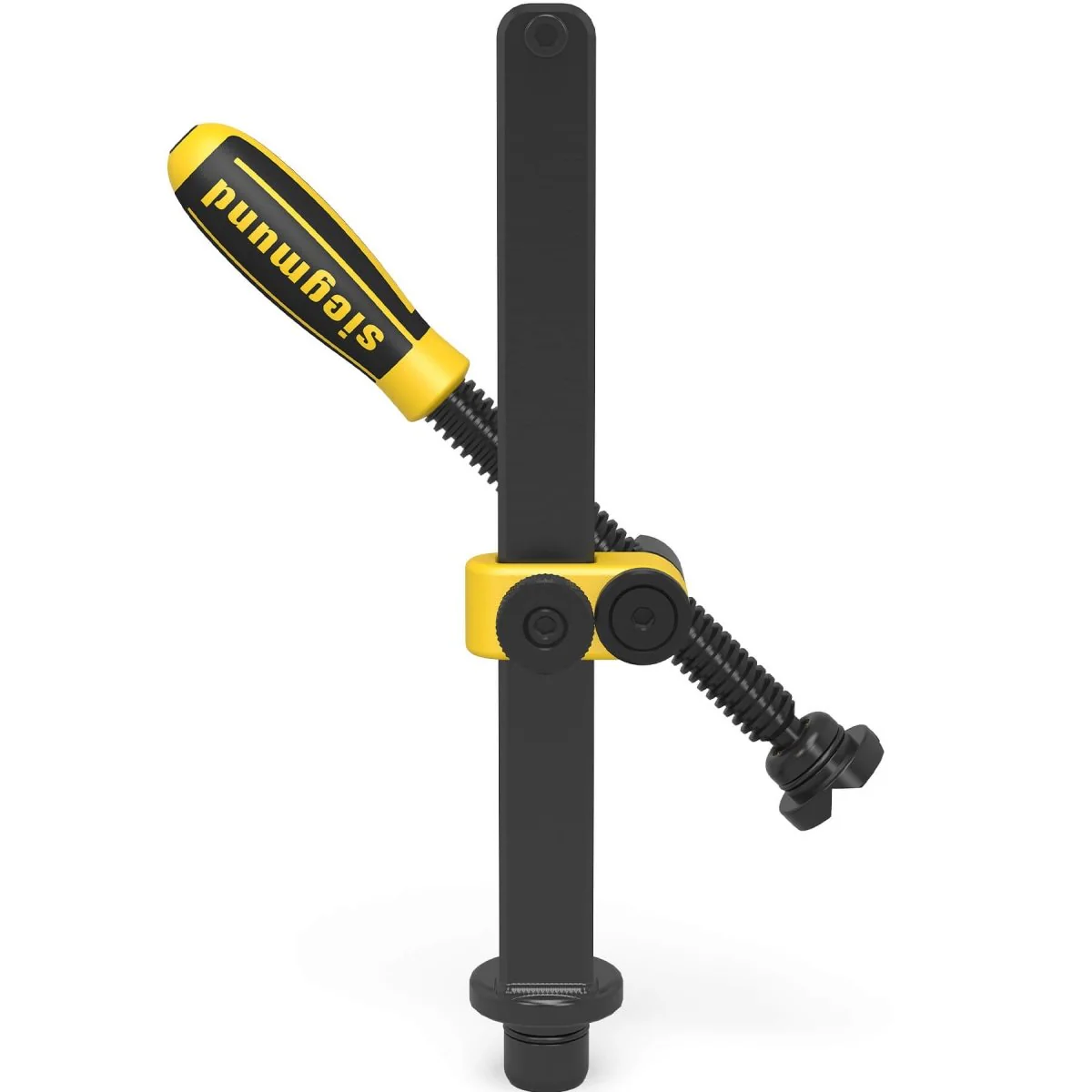

The Siegmund Professional Screw Clamp 45°/90° offers precise clamping with full rotational flexibility from 0°–360°. Replacing conventional 45° or 90° clamps, it provides unmatched adaptability and secure positioning for complex welding assemblies.
- Height of 310mm (12.20" Inches) supports a wide range of applications.
- Delivers up to 5 kN (1124.0 lbf.) of clamping force for strong holding power.
- Flat bar dimensions of 30x14mm provide stability and rigidity.
- Nitrided finish enhances durability and resists wear over time.
- Torque-adjustable handle allows controlled clamping pressure.
- Weighs 6.26 lbs. (2.84 kg.), built for reliable shop use.
Key Features:
- Infinitely variable 0°–360° positioning replaces multiple clamp types.
- Nitrided finish improves wear resistance and extends service life.
- Reinforced vertical bar adds strength and reliability.
- Torque wrench compatibility ensures repeatable precision.
Specifications:
- Item No.: 2-280630.N
- System: Siegmund System 28 Metric Series
- Height: 310mm (12.20" Inches)
- Weight: 6.26 lbs. (2.84 kg.)
- Max. Clamping Force: 5 kN (1124.0 lbf.)
- Bar Dimensions: 30x14mm
- Finish: Nitrided Steel
Common Uses:

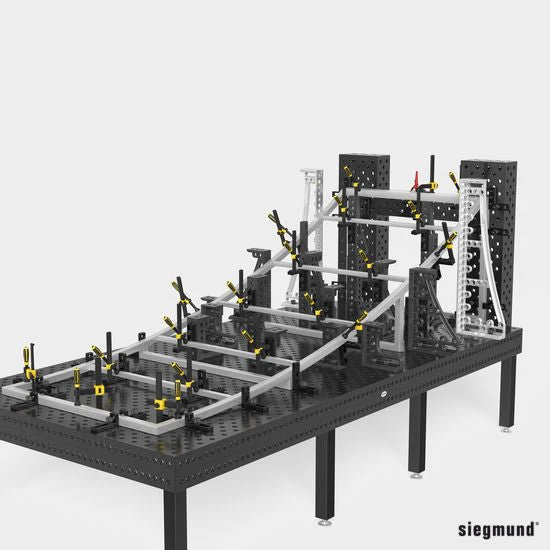

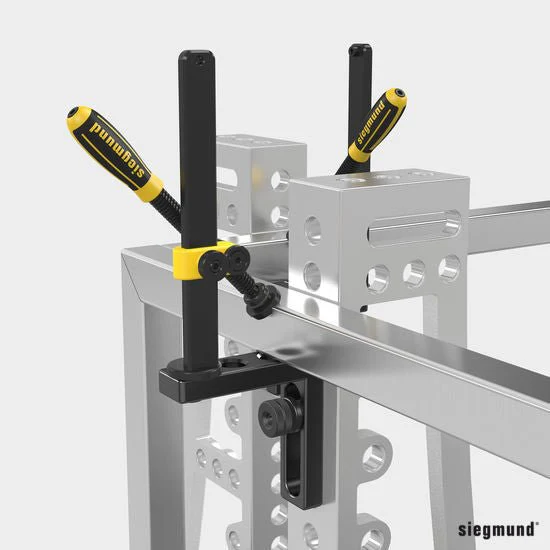

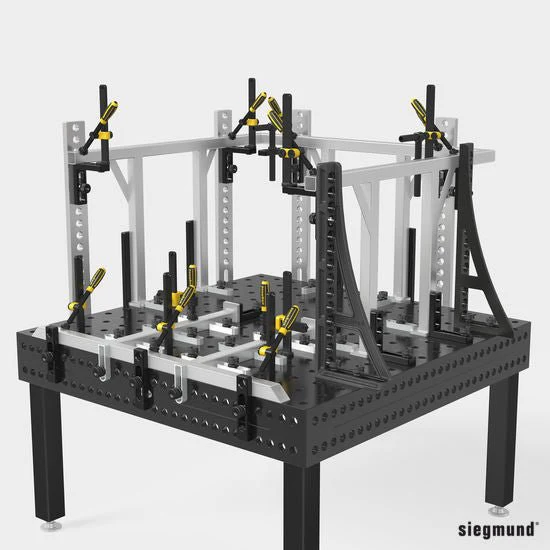

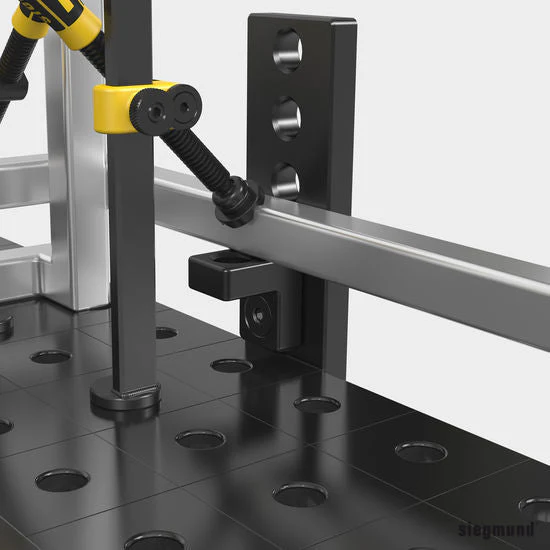

The Professional Screw Clamp 45°/90° provides unmatched versatility in Siegmund System 28 fixturing setups. Its 360° movement allows positioning at any angle, replacing fixed-angle clamps and saving space in the shop. With reinforced construction and nitrided finish, it ensures precise, repeatable, and durable clamping in demanding fabrication tasks.
Parts Used to Create the Siegmund Item No. 2-280630.N:
(x1) 2-280633.N
(x1) 2-280617.2
(x1) 2-280662.2
(x1) 2-289109.N
(x1) 2-289108.N
(x1) 2-280634.2.N
(x1) 2-280657.1.N
