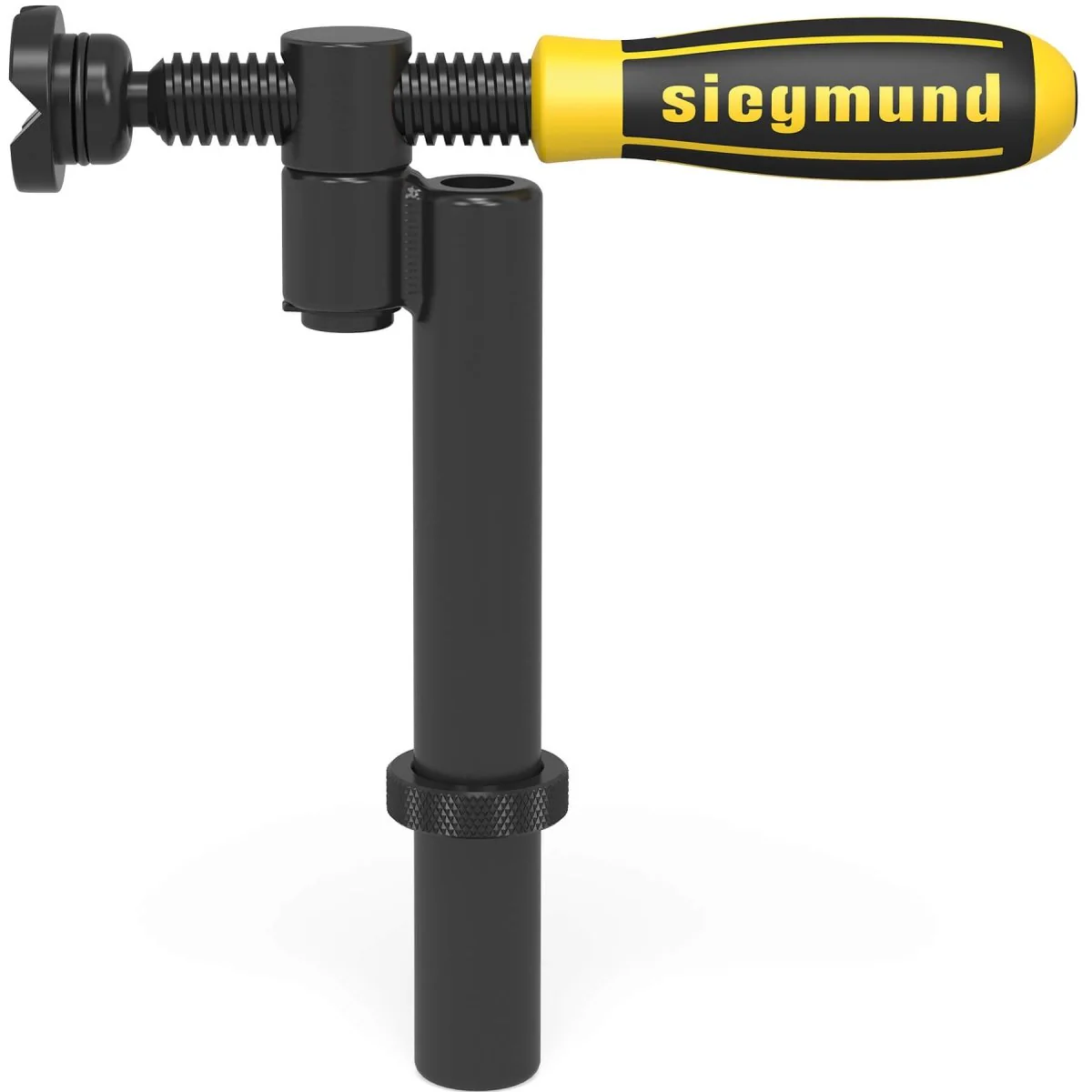

The Siegmund Basic Pipe Clamp 90° provides reliable clamping of components at a 90° angle within Siegmund System 28 setups. With full 360° rotation capability, it allows flexible and precise positioning while maintaining strong holding power.
- Provides 230mm (9.06" Inches) clamping height for a wide range of applications.
- Delivers up to 3 kN (674.4 lbf.) clamping force for secure positioning.
- Nitrided finish ensures high durability and resistance to wear.
- Smooth 360° rotation allows flexible, repeatable alignment.
- Lightweight at 3.13 lbs. (1.42 kg.), easy to handle without sacrificing strength.
Key Features:
- 90° design enables consistent right-angle clamping.
- Full 360° rotation provides positioning flexibility.
- Nitrided finish extends service life under heavy use.
- Compact, durable design delivers efficiency in shop workflows.
Specifications:
- Item No.: 2-280608.N
- System: Siegmund System 28 Metric Series
- Height: 230mm (9.06" Inches)
- Weight: 3.13 lbs. (1.42 kg.)
- Max. Clamping Force: 3 kN (674.4 lbf.)
- Finish: Nitrided Steel
Common Uses:
The Basic Pipe Clamp 90° is ideal for fixturing components at precise right angles in System 28 welding setups. Its smooth 360° rotation ensures flexible alignment, while its nitrided finish provides the durability needed for repetitive, demanding shop applications.
