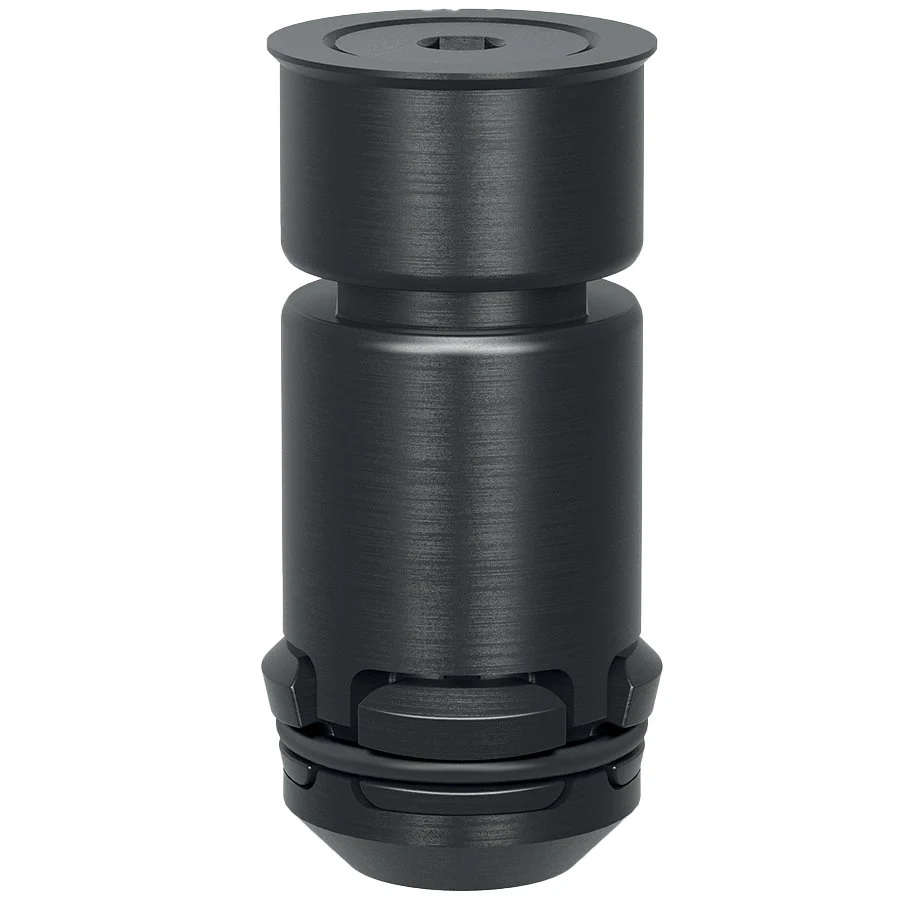

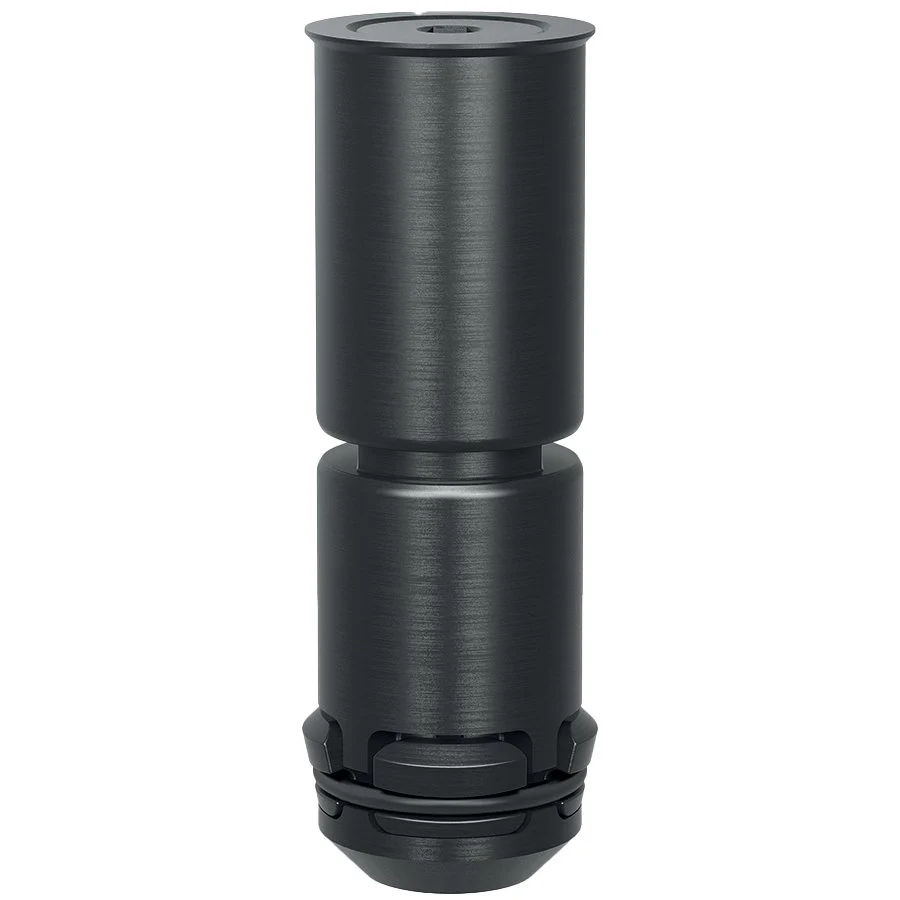

The Areal Clamping Flush Mount Bolt Triple (Burnished) is a compact, high-strength fastener for Siegmund System 28 Metric Series setups. Designed for connecting three components with a countersunk fit, it ensures a smooth, flush finish while delivering strong clamping performance.
- Measures 90mm (3.54" Inches) in length with a burnished finish.
- Supports clamping ranges of 72–78mm (2.83"–3.07" Inches).
- Generates shear force of 200kN (44,961 lbf.) for secure load handling.
- Provides tensile strength of 10kN (2,248 lbf.) in steel and 6kN (1,349 lbf.) in aluminum.
- Hexagon socket (Size 6) enables precise tightening in confined spaces.
- Weighs 0.90 lbs. (0.41 kg.) for light, efficient handling.
Key Features:
- Flush countersunk connection for three components.
- Durable burnished surface ensures long-lasting reliability.
- Smooth clamping surface protects aluminum profiles.
- High shear and tensile strength for demanding welding environments.
- Compatible with Siegmund System 28 Metric setups.
Specifications:
- Series: Siegmund System 28 Metric Series
- Item No.: 2-280595.3
- Length: 90mm (3.54" Inches)
- Weight: 0.90 lbs. (0.41 kg.)
- Clamping Range: 72–78mm (2.83"–3.07" Inches)
- Shearing Force: 200kN (44,961 lbf.)
- Tightening Torque Steel: 50Nm
- Tightening Torque Aluminum: 20Nm
- Tensile Force Steel: 10kN (2,248 lbf.)
- Tensile Force Aluminum: 6kN (1,349 lbf.)
Common Uses:

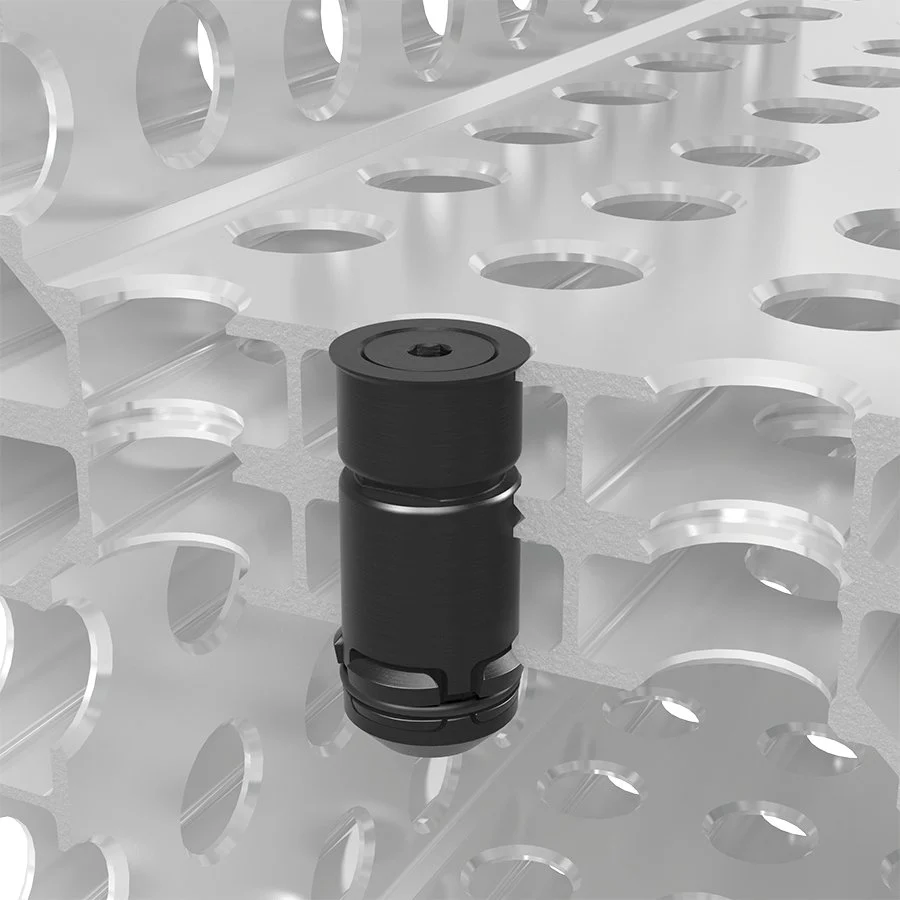

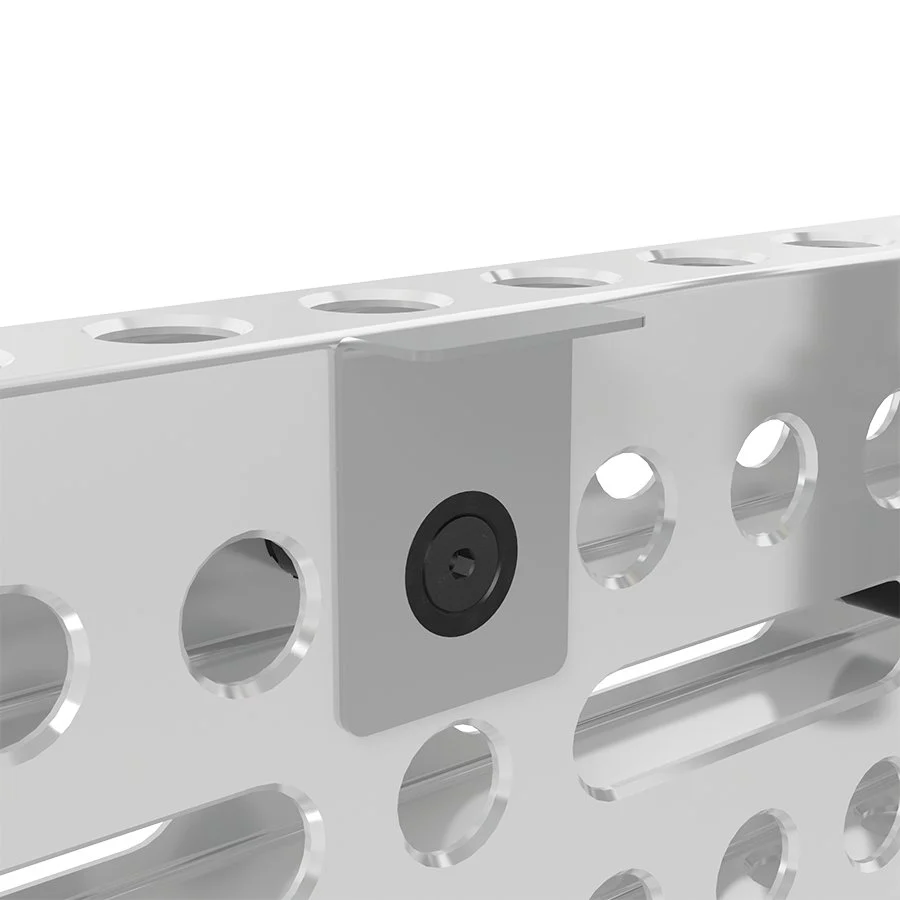

This flush mount bolt is used to connect three components in Siegmund System 28 setups with a secure, countersunk fit. It is especially valuable in aluminum profile applications where smooth clamping without surface damage is required. Fabricators rely on it for high-strength fastening that maintains surface precision in welding and fixturing.
