The System 28 Fast Flat Clamping Bolt Enables Fast, Powerful, and Effortless Clamping.

The Siegmund Fast Flat Clamping Bolt without Slot Ensures a Smooth Surface of the Bolt Body. The Bolt Without Slot Is Particularly Suitable for Clamping Aluminum Profiles.

\"\"
\n
\n

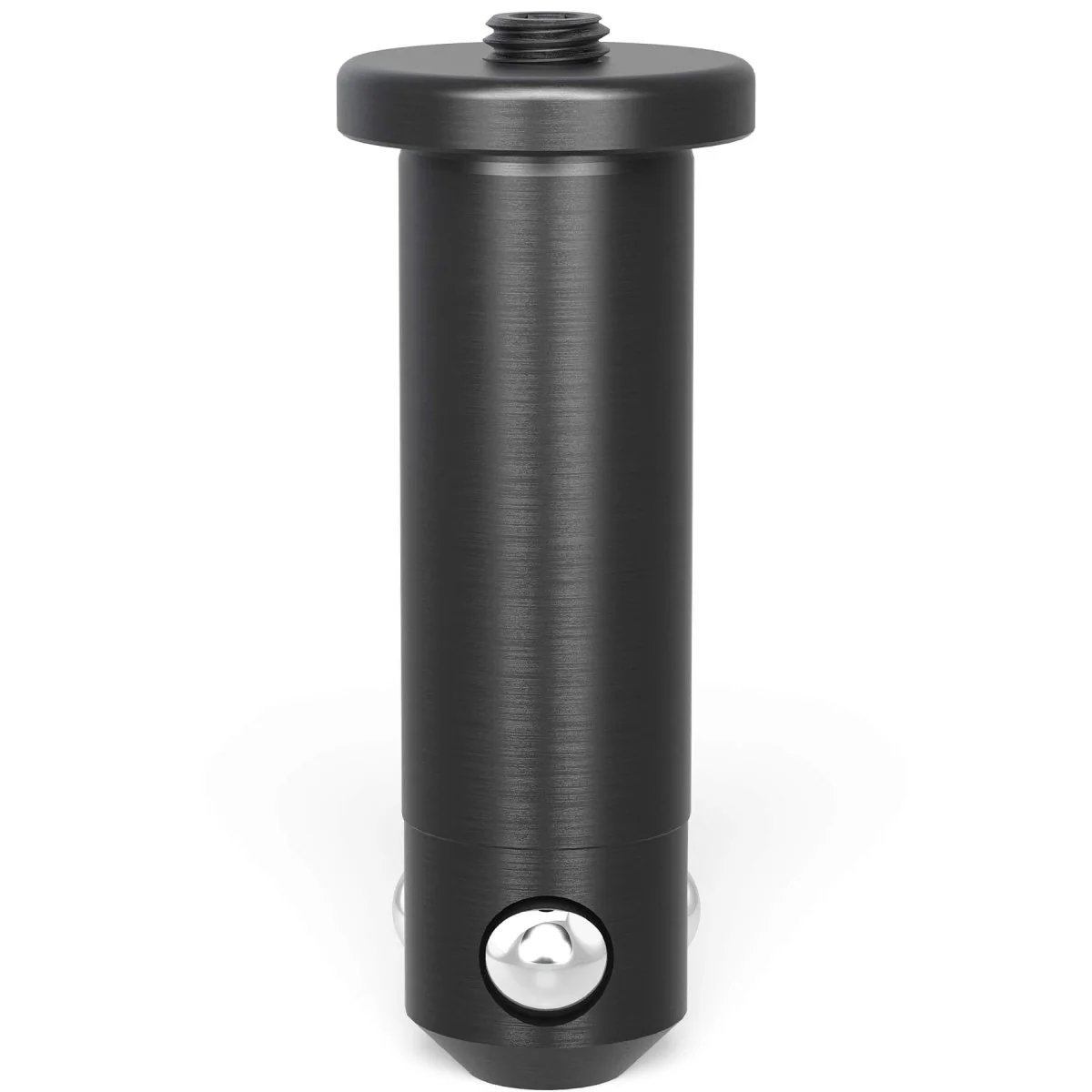

The Fast Clamping Bolt flat without slot triple burnished provides a low-profile fastening solution for Siegmund System 28 setups. Its flat head design reduces protrusion, making it especially useful in elongated hole applications where flush alignment and clearance are required.

- The 99mm (3.90\" Inches) length supports clamping of up to three components.
- Triple burnished finish provides enhanced durability and smooth operation.
- Flat head design minimizes obstruction on fixture surfaces.
- Handles high shear and tensile force loads for demanding applications.
- Torque settings optimized for both steel and aluminum use.
- Hexagon socket (Size 6) ensures consistent and reliable tightening.

\n
\n

Specs and Features
of the System 28 Metric Series
Triple Fast Flat Clamping Bolt without Slot
Item No. 2-280525

\n

Specs and Features
of the System 28 Metric Series
Triple Fast Flat Clamping Bolt without Slot
Item No. 2-280525

Key Features:
- Flat design reduces protrusion and maintains smooth work surfaces.
- Triple burnished surface improves longevity under heavy use.
- Handles 220 kN (49,458.8 lbf.) shear force.
- Delivers 25 kN (5,620.0 lbf.) tensile force in steel setups.
- Compatible with Siegmund System 28 Metric Series for multi-component fastening.

Specifications:
- Item No.: 2-280525
- System: Siegmund System 28 Metric Series
- Length: 99mm (3.90\" Inches)
- Weight: 0.93 lbs. (0.42 kg.)
- Shearing Force: 220 kN (49,458.8 lbf.)
- Tensile Force Steel: 25 kN (5,620.0 lbf.)
- Tightening Torque Steel: 25 Nm (221.2 lbf·in.)
- Tightening Torque Aluminum: 10 Nm (88.5 lbf·in.)
- Connection Type: Hexagon Socket (Size 6), Flat Top
