The System 28 Fast Flat Clamping Bolt Enables Fast, Powerful, and Effortless Clamping.

The Siegmund Fast Flat Clamping Bolt without Slot Ensures a Smooth Surface of the Bolt Body. The Bolt Without Slot Is Particularly Suitable for Clamping Aluminum Profiles.

\"\"
\n
\n

The Fast Clamping Bolt flat without slot double burnished provides a low-profile fastening solution for Siegmund System 28 setups. With its flat design, it minimizes protrusion while delivering strong, secure connections, making it especially effective for elongated hole applications.

- The 74mm (2.91\" Inches) length supports clamping of two components.
- Double burnished finish provides durability and smooth engagement.
- Flat head design reduces protrusion and maintains clear surfaces.
- Handles high shear and tensile forces for demanding setups.
- Material-dependent torque ensures safe use with both steel and aluminum.
- Hexagon socket (Size 6) allows precise and repeatable tightening.

\n
\n

Specs and Features
of the System 28 Metric Series
Double Fast Flat Clamping Bolt without Slot
Item No. 2-280524

\n

Specs and Features
of the System 28 Metric Series
Double Fast Flat Clamping Bolt without Slot
Item No. 2-280524

Key Features:
- Flat head design minimizes obstruction on work surfaces.
- Double burnished finish increases resistance to wear.
- Handles 220 kN (49,458.8 lbf.) shear force.
- Delivers 25 kN (5,620.0 lbf.) tensile force in steel.
- Compatible with Siegmund System 28 Metric Series.

Specifications:
- tem No.: 2-280524
- System: Siegmund System 28 Metric Series
- Length: 74mm (2.91\" Inches)
- Weight: 0.79 lbs. (0.36 kg.)
- Shearing Force: 220 kN (49,458.8 lbf.)
- Tensile Force Steel: 25 kN (5,620.0 lbf.)
- Tightening Torque Steel: 25 Nm (221.2 lbf·in.)
- Tightening Torque Aluminum: 10 Nm (88.5 lbf·in.)
- Connection Type: Hexagon Socket (Size 6), Flat Top

\n

System 28 Metric Series Accessory Sets

\n
\n
\n

System 28 Metric Series
Accessory Sets

The Most Popular Siegmund Accessory Bundles

\n
\"Set

Sold out

Sold out

Sold out

Sold out

Sold out
","image":["/images/weldingtablesandfixturesgear.shop/images/product/2-280524-double-fast-flat-clamping-bolt-without-slot-burnished-1.jpg","/images/weldingtablesandfixturesgear.shop/images/product/2-280524-double-fast-flat-clamping-bolt-without-slot-burnished-2.jpg","/images/weldingtablesandfixturesgear.shop/images/product/2-280524-double-fast-flat-clamping-bolt-without-slot-burnished-3.jpg","/images/weldingtablesandfixturesgear.shop/images/product/2-280524-double-fast-flat-clamping-bolt-without-slot-burnished-4.jpg"],"sku":"2-280524-double-fast-flat-clamping-bolt-without-slot-burnished","brand":{"@type":"Brand","name":"Siegmund Welding Tables"},"offers":{"@type":"AggregateOffer","lowPrice":87,"highPrice":87,"priceCurrency":"USD","availability":"https://schema.org/InStock","url":"https://weldingtablesandfixturesgear.shop/products/2-280524-double-fast-flat-clamping-bolt-without-slot-burnished","offerCount":1}}
HomeStore

2-280524: Double Fast Flat Clamping Bolt without Slot (Burnished)

Product image 1

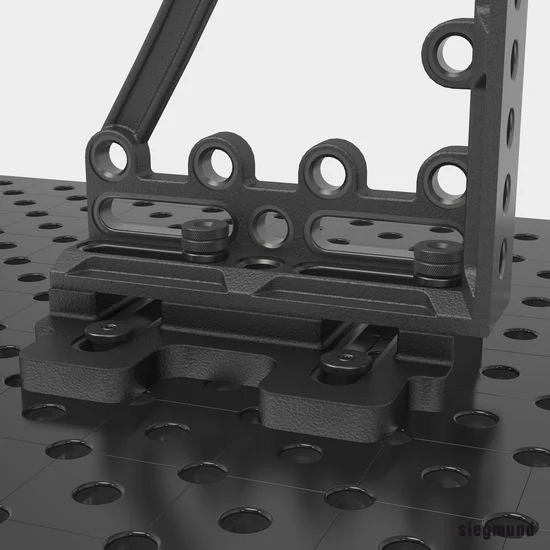

Product image 2
