- Provides rapid, tool-free clamping for faster workflow.
- Handle adjustment offers versatility for multiple setups.
- Burnished surface resists wear under heavy use.
- Handles 220 kN (49,440.0 lbf.) shear force for secure stability.
- Delivers 25 kN (5,620.0 lbf.) tensile force in steel connections.

Specifications:
- Item No.: 2-280516
- System: Siegmund System 28 Metric Series
- Length: 235mm (9.25\" Inches)
- Weight: 1.39 lbs. (0.63 kg.)
- Shearing Force: 220 kN (49,440.0 lbf.)
- Tensile Force Steel: 25 kN (5,620.0 lbf.)
- Handle Adjustment Range: 33mm–60mm (1.30\"–2.36\" Inches)
- Finish: Burnished

\n
\"\"
\"\"
\n
\n
Tensile Force
\nMax. ZK of 280516: ≤ 25 kN
The tensile force is the force created when pulling on fixed bolts.\n

Shearing Force
\nMax. SK of 280516: ≤ 220 kN
The shearing force is the force which reacts laterally to the cross-sectional area of the bolt.\n
\n
\n

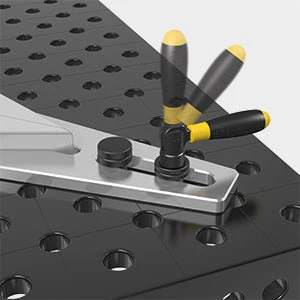

Variable Clamping Stroke
The position of the handle is adjustable between 1.3\" & 2.3\" (33mm & 60mm).
\n
\n
Customized
Ideal for use with custom-built components.
\n
\nEasy Handling
Due to its well-engineered mechanism it can be fixed and released by hand within seconds.\n
\n
\n
\n

System 28 Accessory Sets

The Most Popular Siegmund Accessory Bundles

\n
\n

System 28
Series Accessory Sets
The Most Popular Siegmund Accessory Bundles

\"Set

Sold out

Sold out

Sold out

Sold out

Sold out
","image":["/images/weldingtablesandfixturesgear.shop/images/product/2-280516-fast-clamping-bolt-with-handle-for-system-28-1.jpg","/images/weldingtablesandfixturesgear.shop/images/product/2-280516-fast-clamping-bolt-with-handle-for-system-28-2.jpg","/images/weldingtablesandfixturesgear.shop/images/product/2-280516-fast-clamping-bolt-with-handle-for-system-28-3.jpg","/images/weldingtablesandfixturesgear.shop/images/product/2-280516-fast-clamping-bolt-with-handle-for-system-28-4.jpg"],"sku":"2-280516-fast-clamping-bolt-with-handle-for-system-28","brand":{"@type":"Brand","name":"Siegmund Welding Tables"},"offers":{"@type":"AggregateOffer","lowPrice":44.8,"highPrice":44.8,"priceCurrency":"USD","availability":"https://schema.org/InStock","url":"https://weldingtablesandfixturesgear.shop/products/2-280516-fast-clamping-bolt-with-handle-for-system-28","offerCount":1}}
HomeStore

2-280516: Fast Clamping Bolt with Handle for System 28

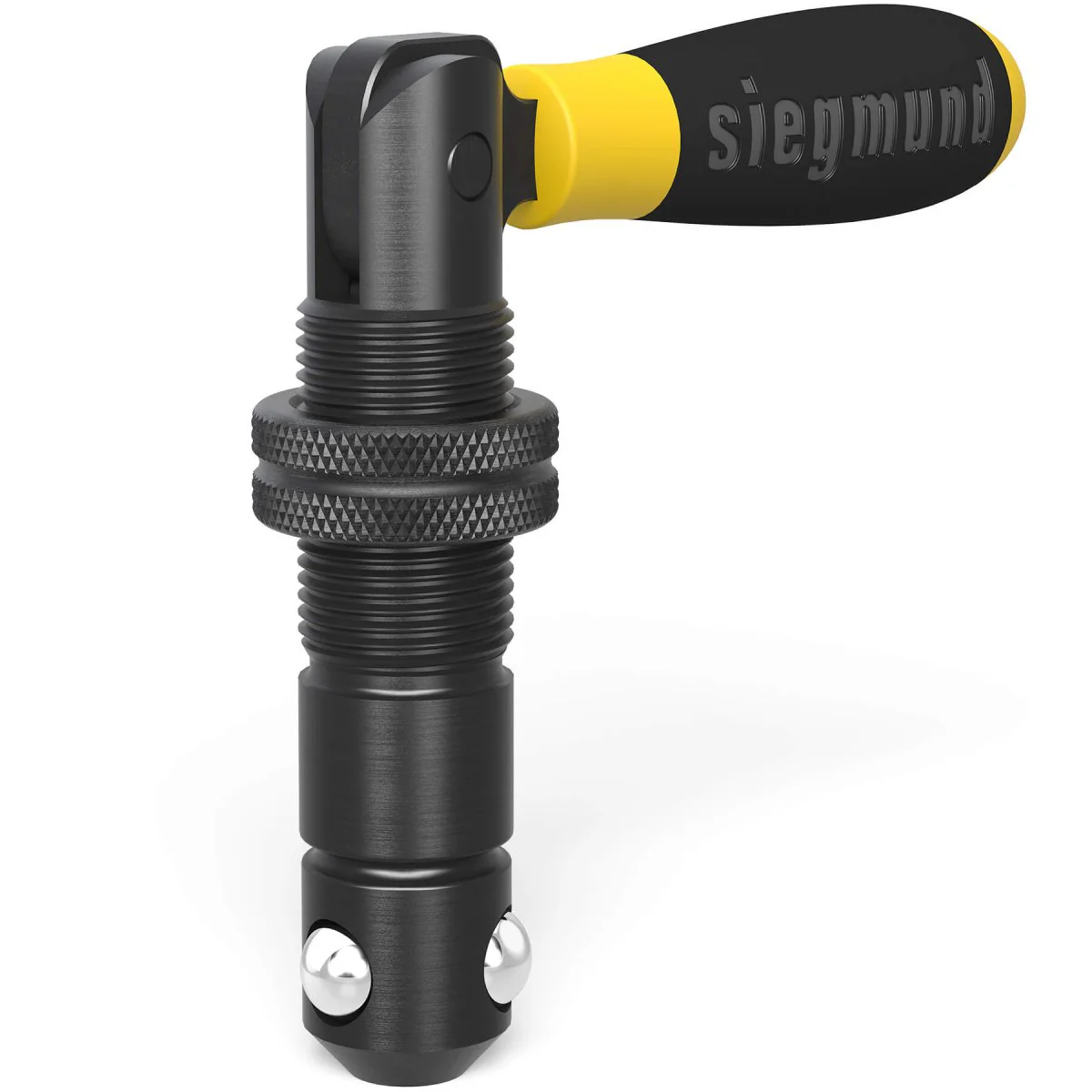

Product image 1
