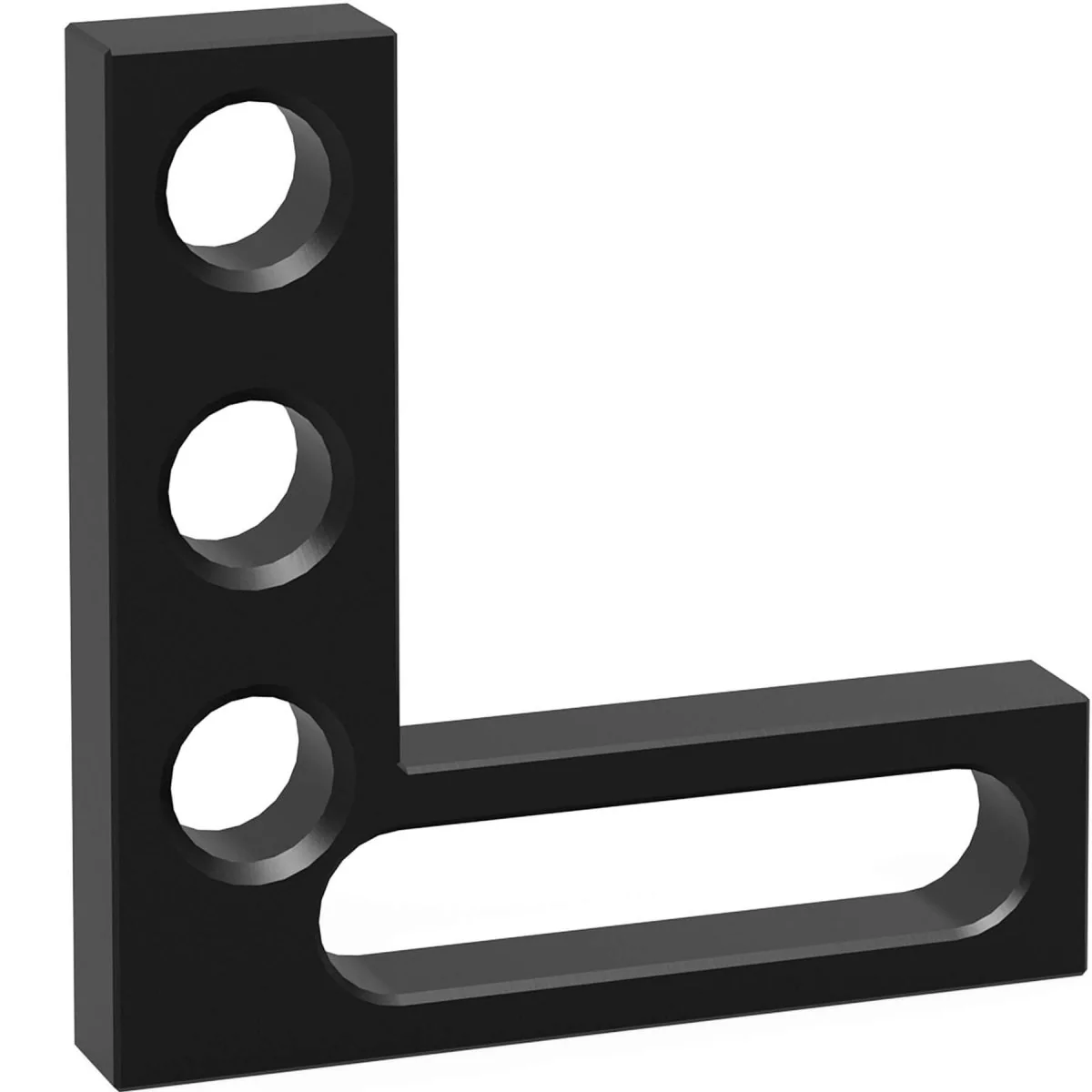

The Siegmund Flat Square 175 Small Burnished is designed for compact and precise setups on System 28 Metric welding tables. With dimensions of 175mm x 175mm, it combines system boreholes and an elongated slot to provide both fixed and variable positioning, offering an adjustment range of up to 100mm. Constructed from 25mm thick steel, it delivers strength and durability, while the burnished finish ensures smooth handling and long-term wear resistance.
Key Features:
The Flat Square 175 offers precise squaring and alignment capabilities in a compact form. Its elongated slot allows flexible adjustments, while the boreholes provide secure clamping. The burnished finish adds durability, and the 25mm material thickness ensures rigidity during demanding fabrication work.
Specifications:
- Item No.: 2-280445
- System: Siegmund System 28 Metric Series
- Length: 175mm (6.89")
- Width: 175mm (6.89")
- Height: 50mm (1.97")
- Material Thickness: 25mm (0.98")
- Adjustment Range: 100mm (3.94")
- Weight: 4.08 lbs. (1.85 kg.)
- Finish: Burnished
Common Uses:

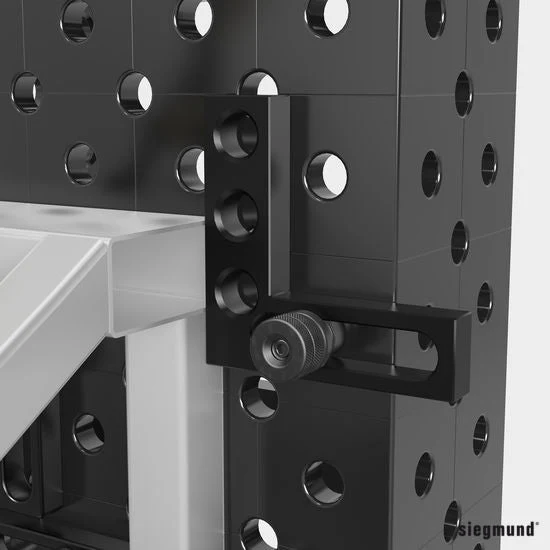

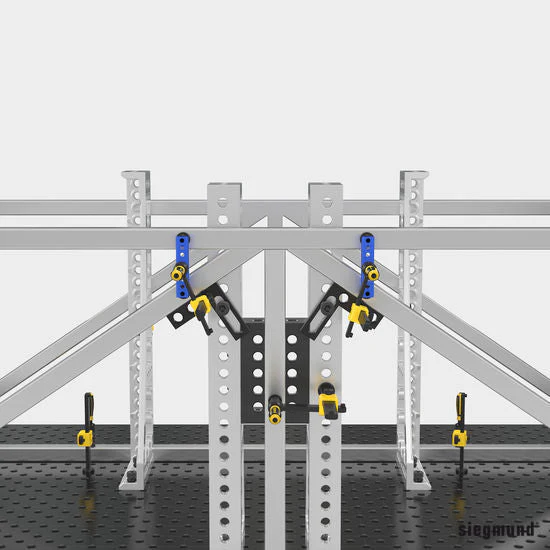

The Flat Square 175 is commonly used for accurate squaring, alignment, and clamping of small to medium-sized parts in welding and fabrication. It is particularly suited for repeat setups and precision applications where compact size and variable adjustment are required.
