2-280420.A: 225mm L Universal Stop (Aluminum)

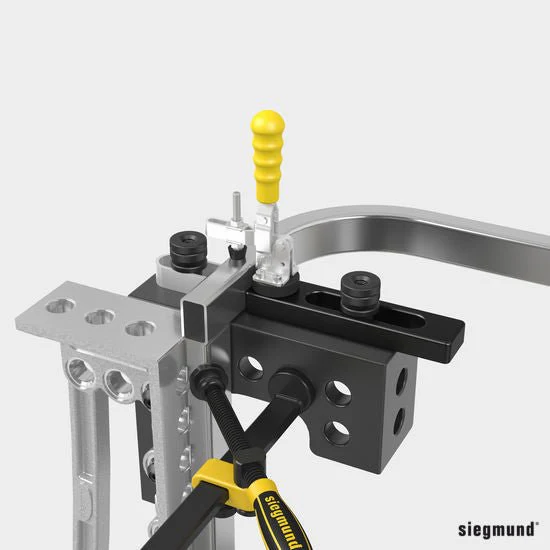

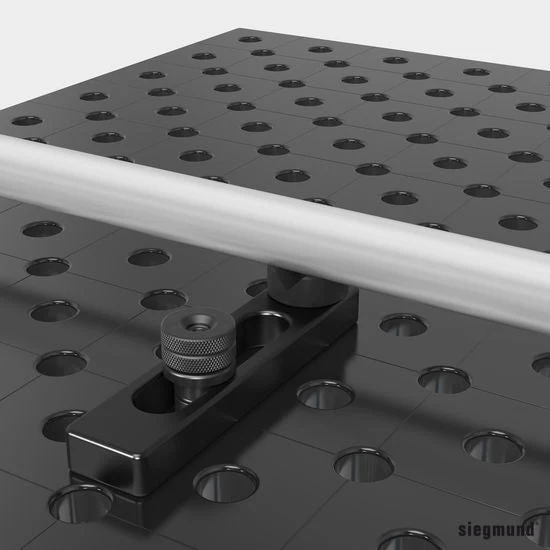

The 2-280420.A: 225mm L Universal Stop (Aluminum) enables precise adjustment range of 0-100mm (0"-3.93") for every element through the oblong slot. Standard with fine scaling on both sides. By combining elongated hole (0-100 mm adjustable range) and system boreholes, it can be firmly fastened or variably adjusted. In addition, it can be used with prisms and adapters. Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
Specs and Features:
- Item No.: 2-280420.A
- Length (a): 225mm (8.85")
- Width (b): 50mm (1.96")
- Material Thickness (d): 25mm (0.98")
- Adjusting Range (f): 100mm (3.93")
- Weight: 1.21 lbs. / 0.55 kg.
Original: $164.00
-65%$164.00
$57.40Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The 2-280420.A: 225mm L Universal Stop (Aluminum) enables precise adjustment range of 0-100mm (0"-3.93") for every element through the oblong slot. Standard with fine scaling on both sides. By combining elongated hole (0-100 mm adjustable range) and system boreholes, it can be firmly fastened or variably adjusted. In addition, it can be used with prisms and adapters. Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
Specs and Features:
- Item No.: 2-280420.A
- Length (a): 225mm (8.85")
- Width (b): 50mm (1.96")
- Material Thickness (d): 25mm (0.98")
- Adjusting Range (f): 100mm (3.93")
- Weight: 1.21 lbs. / 0.55 kg.
