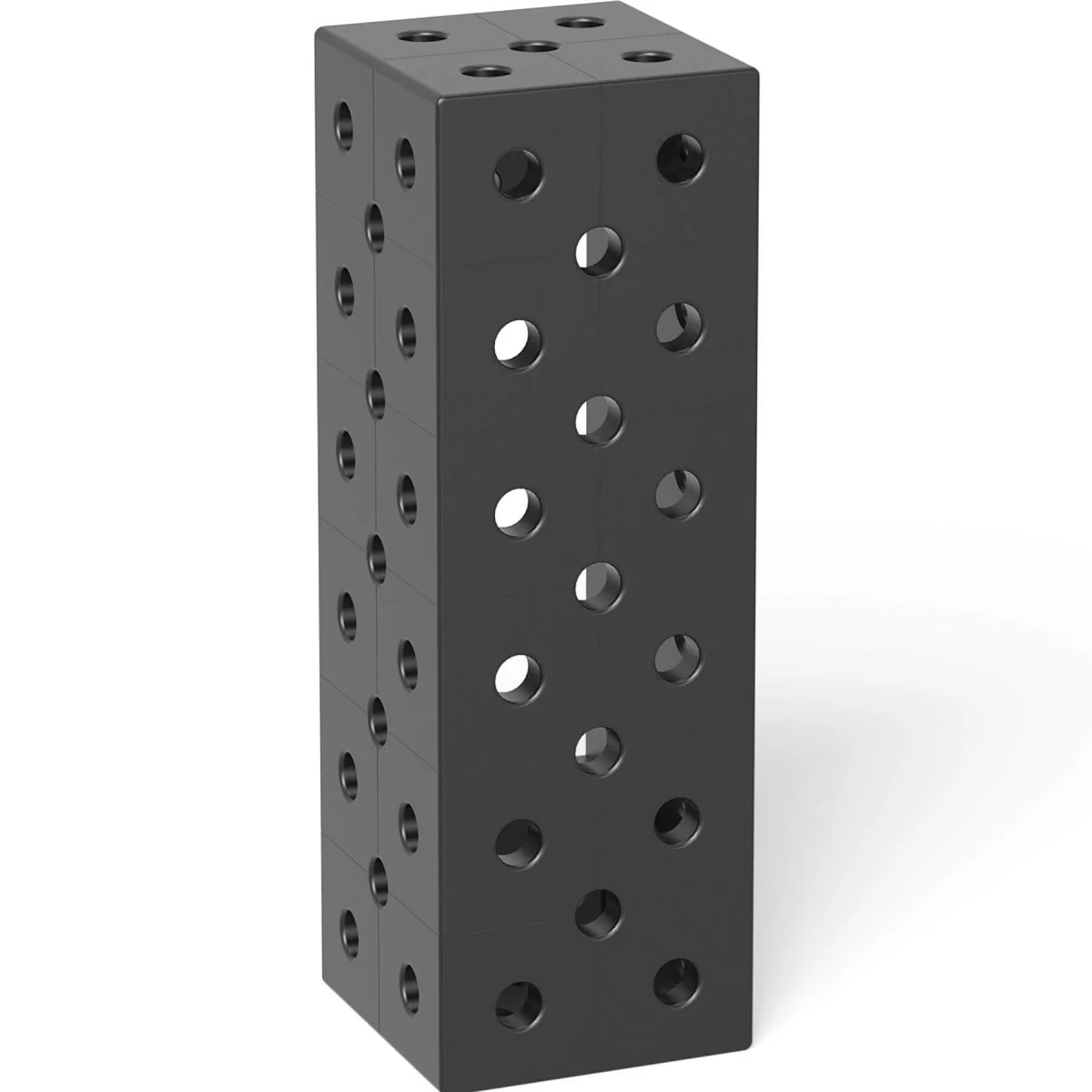

The Siegmund Square U-shape riser block provides the strength and stability required for long extensions, vertical positioning, and heavy-duty welding setups. Built with a plasma nitrided surface, it resists wear and spatter while maintaining precise alignment across extended applications.
- Measures 600x200x200mm (23.62"x7.87"x7.87" Inches) for maximum reach in welding layouts.
- Plasma nitrided finish ensures durability against spatter, wear, and corrosion.
- 25mm (0.98" Inches) wall thickness delivers high rigidity and load capacity.
- 100mm (3.94" Inches) grid spacing supports accurate and repeatable alignment.
- Five-sided borehole system with optional diagonal holes expands clamping options.
- Equipped with mounting holes on the back for attaching table legs.
Key Features:
- Provides long reach and stable vertical extensions for Siegmund welding tables.
- Hardened plasma nitrided surface delivers exceptional service life.
- Compatible with table legs and connector bolts for strong integration.
- Five-sided boreholes with 100mm (3.94" Inches) spacing increase flexibility.
- Fully compatible with Siegmund System 28 Metric Series setups.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 600mm (23.62" Inches)
- Width: 200mm (7.87" Inches)
- Height: 200mm (7.87" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 169.8 lbs. (77 kg.)
Common Uses:
This riser block enables secure long-span extensions and vertical positioning in heavy-duty welding applications. It delivers precise orientation and strong support for large workpieces while integrating seamlessly with Siegmund tables and accessories. Its nitrided surface and rigid construction ensure long-term accuracy and durability in demanding shop conditions.
