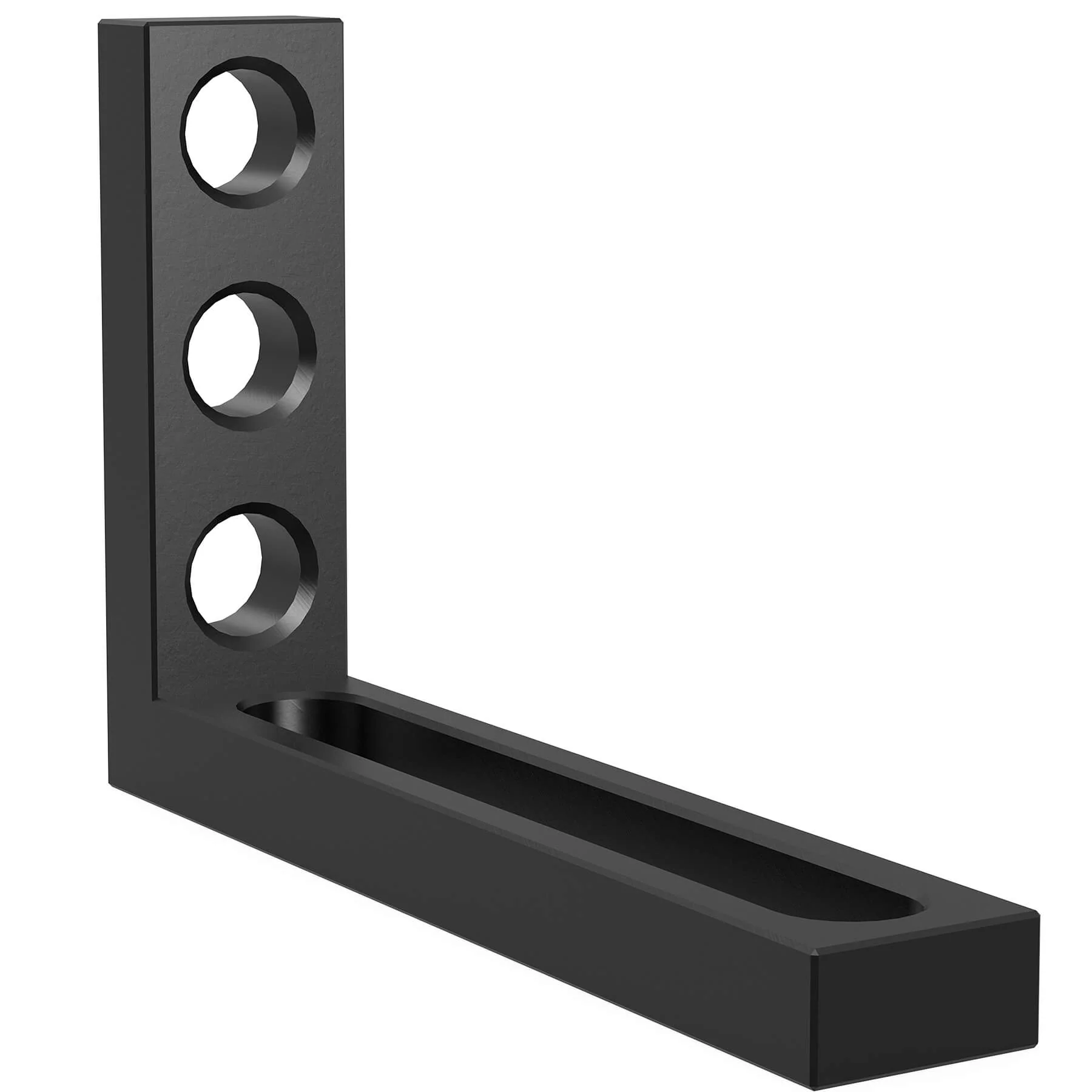

The 275x175mm Stop and Clamping Square WL Nitrided provides a multifunctional solution for welding and fabrication. Its combination of boreholes and an elongated slot allows both fixed clamping and flexible adjustment. With a 200mm elongated slot, it is especially effective as a stop for large components, delivering precision and strength in demanding setups.
- Elongated slot provides 200mm (7.87" Inches) of adjustment range.
- Functions as a fixed square, adjustable stop, or angle fixture.
- 25mm (0.98" Inches) material thickness ensures rigidity under load.
- Durable nitrided finish resists weld spatter, wear, and corrosion.
- Weight of 5.51 lbs. (2.5 kg.) offers stability without excessive bulk.
Key Features:
- Delivers multifunctional use for alignment, stopping, and support.
- 200mm elongated slot expands positioning flexibility.
- Nitrided finish ensures long-lasting performance.
- Strong 25mm (0.98" Inches) construction resists deformation.
- Compatible with Siegmund System 28 Metric Series tables.
Specifications:
- Series: Siegmund System 28 Metric Series
- Length: 275mm (10.83" Inches)
- Width: 50mm (1.97" Inches)
- Height: 175mm (6.89" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 5.51 lbs. (2.5 kg.)
Common Uses:
This stop and clamping square provides accurate right-angle alignment, height adjustment, and secure positioning for large workpieces. The 200mm elongated slot allows flexible clamping configurations, making it an essential fixture for professional welding and fabrication environments.
