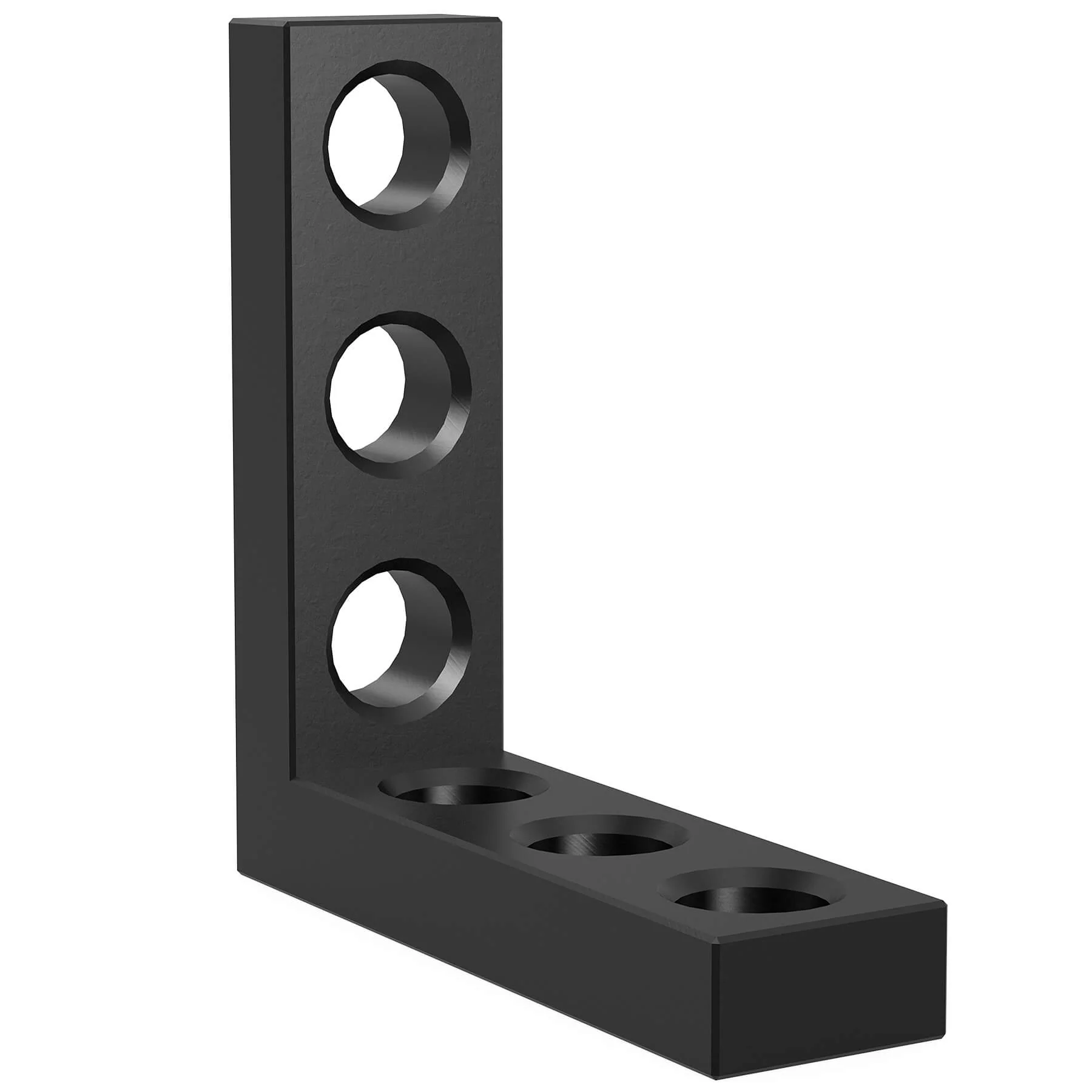

The 175x175mm Stop and Clamping Square VL Nitrided is a versatile fixture for welding and fabrication, offering precise alignment and strong support. With boreholes on both sides, it functions as a fixed square or as a support bracket. When combined with other Siegmund clamping squares, it can also be used as a height-adjustable support.
- Boreholes on both sides expand setup possibilities.
- Can function as a fixed square or support bracket.
- Compatible with additional Siegmund clamping squares for adjustable setups.
- 25mm (0.98" Inches) thickness provides strength and rigidity.
- Nitrided finish increases wear and spatter resistance.
- Weight of 5.29 lbs. (2.4 kg.) ensures stability without bulk.
Key Features:
- Provides dual functionality as square or support.
- Nitrided finish ensures durability under heavy use.
- Strong 25mm (0.98" Inches) construction maintains accuracy.
- Fully compatible with Siegmund System 28 Metric Series tables.
- Expandable with other Siegmund clamping squares for height adjustment.
Specifications:
- Series: Siegmund System 28 Metric Series
- Length: 175mm (6.89" Inches)
- Width: 50mm (1.97" Inches)
- Height: 175mm (6.89" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 5.29 lbs. (2.4 kg.)
Common Uses:

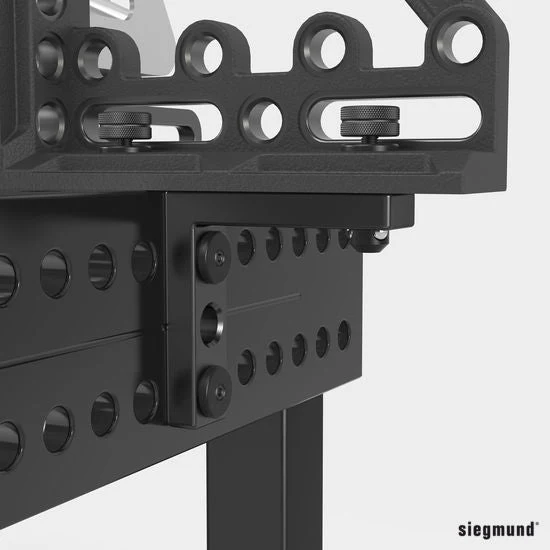

This stop and clamping square delivers reliable 90° alignment and can be used as a support bracket for larger setups. In combination with other Siegmund clamping squares, it provides adjustable support heights, enhancing flexibility in welding and fabrication applications.
