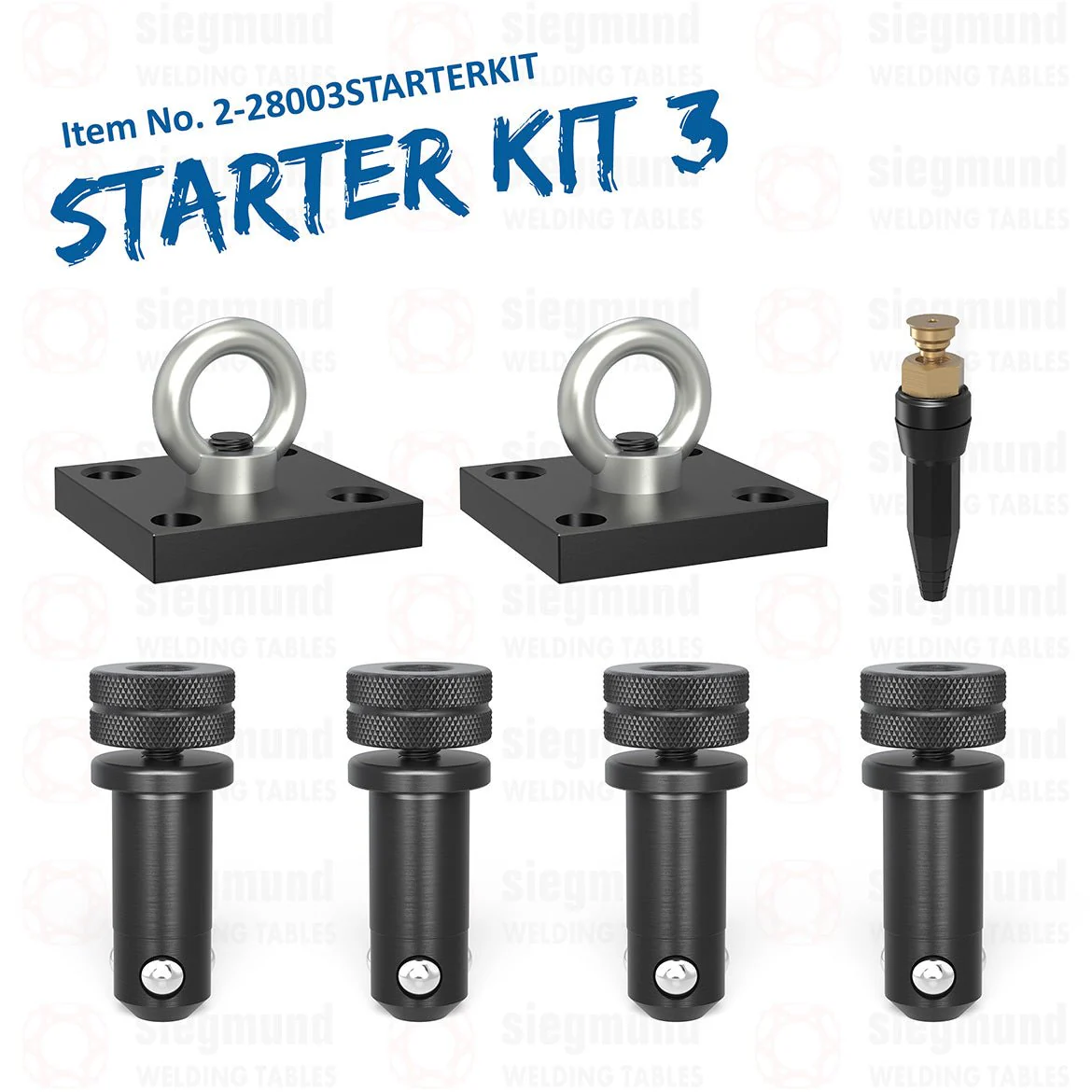

The Metric System 28 Dual Bracket
Starter Kit for the
3,000 x 1,500mm Welding Tables
(7 Pieces)
Item no.: 2-28003STARTERKIT
\n
\n
2-000830.N
Quantity: 2
Comfort Shipping Bracket with Fastening Plate
\n
\n
Shipping Bracket with Mounting Plate, used to transport Siegmund welding tables and other heavy components safely and easily. It is fastened quickly and simply, using at least 2 clamping bolts. Depending on the specific application, the load-bearing capacity can be substantially reduced. During transport, the table must not be raised more than 100 mm, and no one is allowed below the table In addition, the Shipping Bracket can be used as a simple attachment for shipping straps.
Please consider following safety instructions:
1. Ring nuts should be completely bolted.
2. Ring nuts should bear flat and completely on support surface.
3. Length of mating thread has to be sufficient.
4. Lateral pull should be avoided.
- Item No. 2-000830.N
- Length: 150mm (5.90'')
- Width: 150mm (5.90'')
- Height: 25mm (0.98'')
- Weight: 10.36 Ibs.
\n
\n
2-280511
Quantity: 4
Fast Clamping Bolt without Double Slot (Burnished)
\n
\n
This bolt comes without the slot for O-rings. This ensures a smooth surface of the bolt body. The bolt without slot is particularly suitable for clamping aluminum profiles and is also still compatible with the entire Siegmund range. The fast clamping bolt with twist-lock is the ideal connecting element between Siegmund components. This bolt CANNOT be used for connecting tables and U-shaped squares! Our recommendation when working with aluminum profiles. Clamping torque dependent on material. When clamping aluminum parts, the bolts must only be tightened hand-tight.
- With Screw Top, with Hexagon Socket (Size 6)
- Length: 95 mm (3.74\")
- Diameter: 28 mm (1.10\")
- Shearing Force: 220 kN
- Tightening Torque Steel: 215 Nm (158.58 ft-.lb)
- Tightening Torque Aluminum: 10 Nm
- Tensile Force: 25 kN
- Weight 1.2 lbs.
\n
\n
\n
2-000810
Quantity: 1
Ground Connection Comfort
\n
\n
Ground Connection, guarantees 100% contact to the welding table, therefore no overheating is possible. Simple installation by fastening it in a system borehole. This Ground Connection is for structural welding only. Not recommended for thin materials (i.e. Sheet Metal).
This may not work for all applications.
- Load up to 500 ampere
- Cable cross section: 70-95 mm²
- Weigh: 1.45 Ibs.
