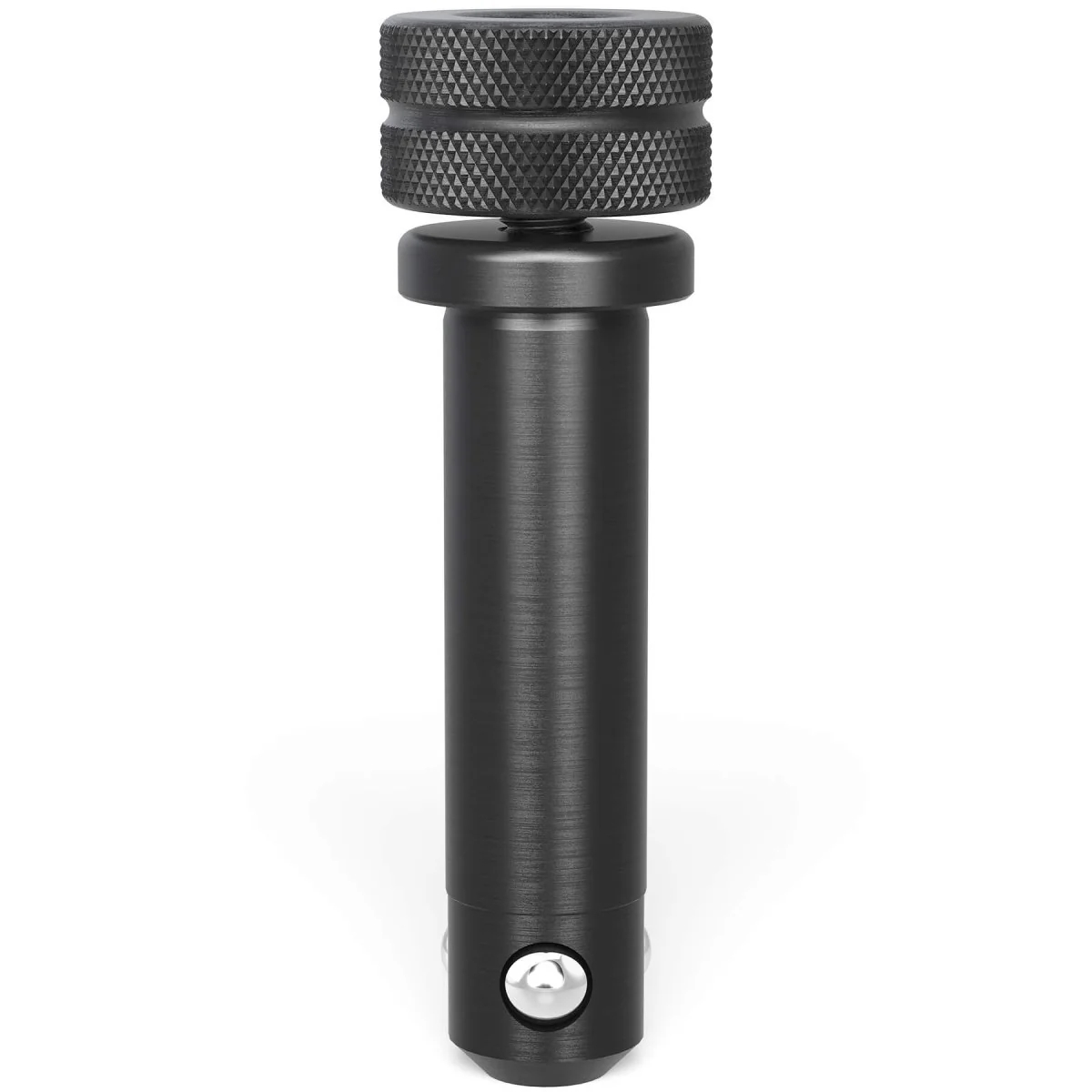

The Siegmund Fast Clamping Bolt without Slot Quadruple Burnished (2-220515) delivers superior precision, speed, and reliability for advanced Siegmund System 22 setups. Designed to clamp four components simultaneously, this bolt features a smooth, O-ring-free body that minimizes friction and prevents debris buildup — ensuring consistent performance and easy maintenance even in demanding environments.
- The quadruple burnished finish provides exceptional surface hardness, corrosion resistance, and a premium aesthetic. Equipped with a knurled screw top and Size 5 hex socket, it enables efficient torque application and secure fastening.
- Crafted from hardened steel and optimized for strength and durability, this bolt is a high-performance solution for professional welding, assembly, and fixture systems requiring quick and precise component alignment.
Key Features:
- Smooth body without O-ring slot for fast, clean operation.
- Twistlock mechanism for rapid engagement and high accuracy.
- Clamps up to four components simultaneously with consistent pressure.
- Rated for up to 130 kN (29,225.9 lbf.) shearing force and 15 kN (3,372.6 lbf.) tensile strength.
- Not suitable for connecting tables or U-shaped squares.
Specifications:
- Series: Siegmund System 22 Metric Series
- Length: 119mm (4.69" Inches)
- Weight: 0.82 lbs. (0.37 kg.)
- Shearing Force: 130 kN (29,225.9 lbf.)
- Tightening Torque Steel: 15 Nm (11.1 lbf-ft)
- Tightening Torque Aluminum: 6 Nm (4.4 lbf-ft)
- Tensile Force Steel: 15 kN (3,372.6 lbf.)
- Material: Hardened, Quadruple Burnished Steel
- Socket Size: 5mm Hex
Common Uses:
The Siegmund 2-220515 Fast Clamping Bolt without Slot Quadruple Burnished is ideal for modular welding tables, assembly fixtures, and high-precision clamping systems. Its twistlock design and smooth burnished finish make it the professional’s choice for fast, secure, and repeatable connections within the Siegmund System 22 series.
