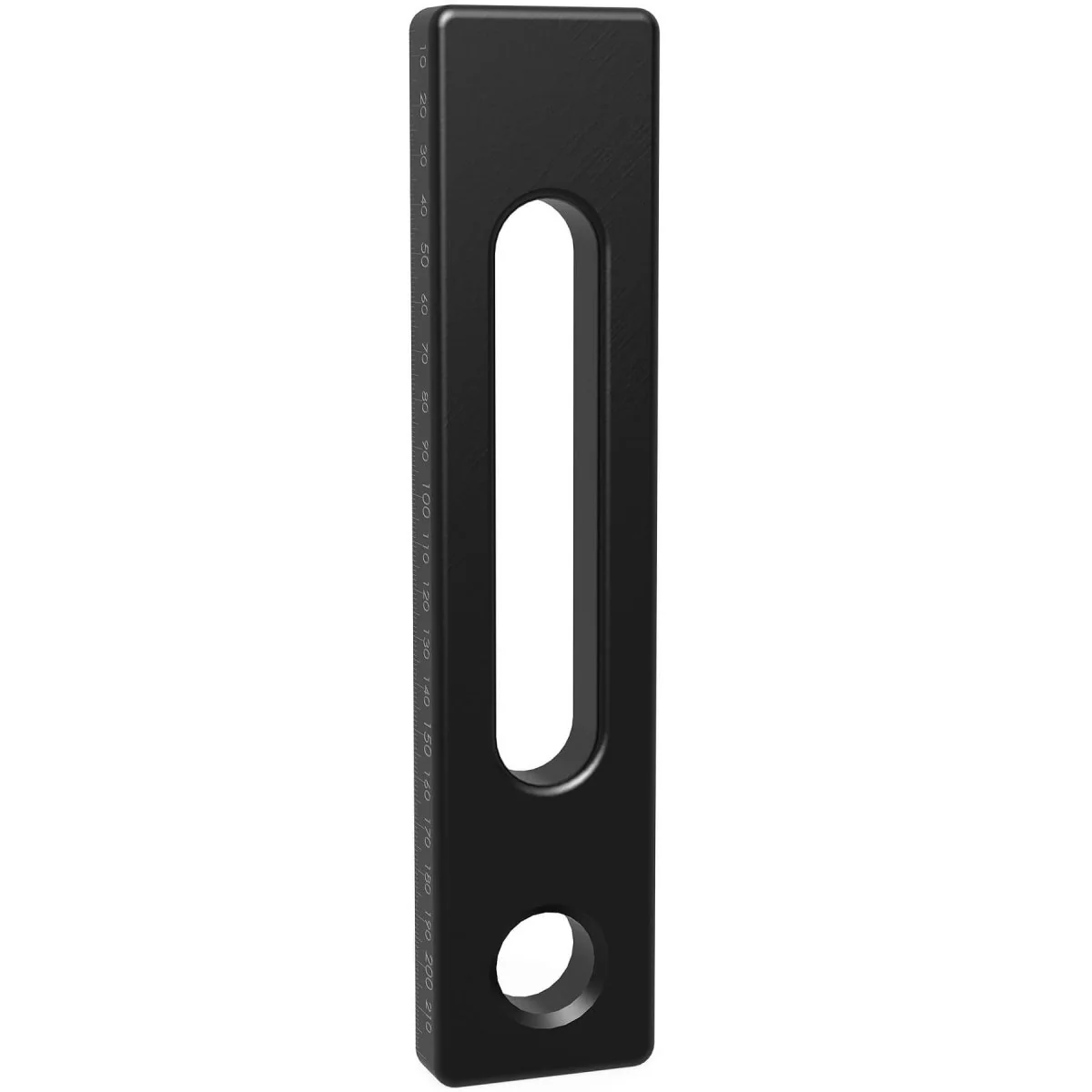

The Siegmund Universal Stop 225 L combines a 0–100mm (0–3.94" Inches) elongated slot with a system borehole, providing precise, adjustable positioning and firm clamping options. Designed for the Siegmund System 22 Metric Series, this stop enables flexible setup changes and accurate alignment when used with prisms, adapters, or clamping elements. The plasma-nitrided surface ensures lasting durability and dimensional accuracy under heavy use.
- Provides fine adjustment range of 0–100mm for precision alignment.
- Features both elongated slot and system borehole for flexible mounting.
- Standard fine scaling on both sides supports quick, repeatable setups.
- Made from hardened, plasma-nitrided tool steel for wear resistance.
- Compatible with Siegmund prisms, adapters, and clamping tools.
- Ensures consistent accuracy in production or prototype applications.
Key Features:
- Combines linear adjustment and fixed positioning in one compact stop.
- Dual-side scale enables accurate measurement and repeatability.
- Nitrided finish delivers high surface hardness and corrosion protection.
- Fully compatible with Siegmund System 22 Metric Series tables.
- Ideal for modular, precision-oriented welding and fixturing setups.
Specifications:
- Item No.: 2-220420.N
- Series: Siegmund System 22 Metric Series
- Length: 225mm (8.86" Inches)
- Width: 50mm (1.97" Inches)
- Material Thickness: 18mm (0.71" Inches)
- Adjusting Range: 100mm (3.94" Inches)
- Weight: 2.51 lbs. (1.14 kg.)
- Material: Plasma Nitrided Steel
- Finish: Burnished / Nitrided Hardened Surface
Common Uses:

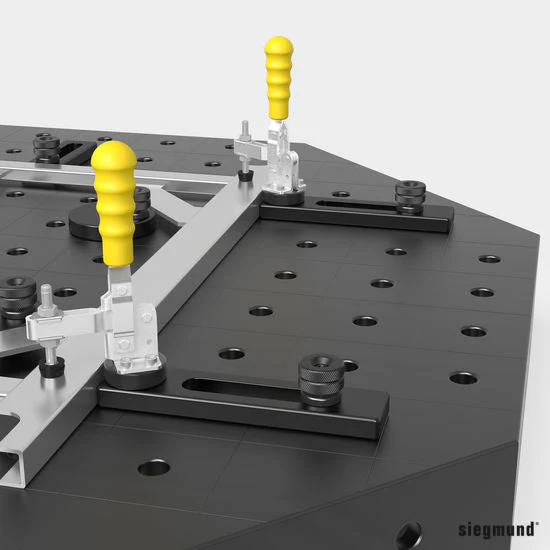

The Universal Stop 225 L is used for precise, variable positioning of workpieces on Siegmund System 22 tables. Its elongated slot allows quick adjustment, while the fixed borehole provides secure clamping when repeatability is required. Perfect for welding, assembly, or inspection setups where stability and flexibility are both essential.
