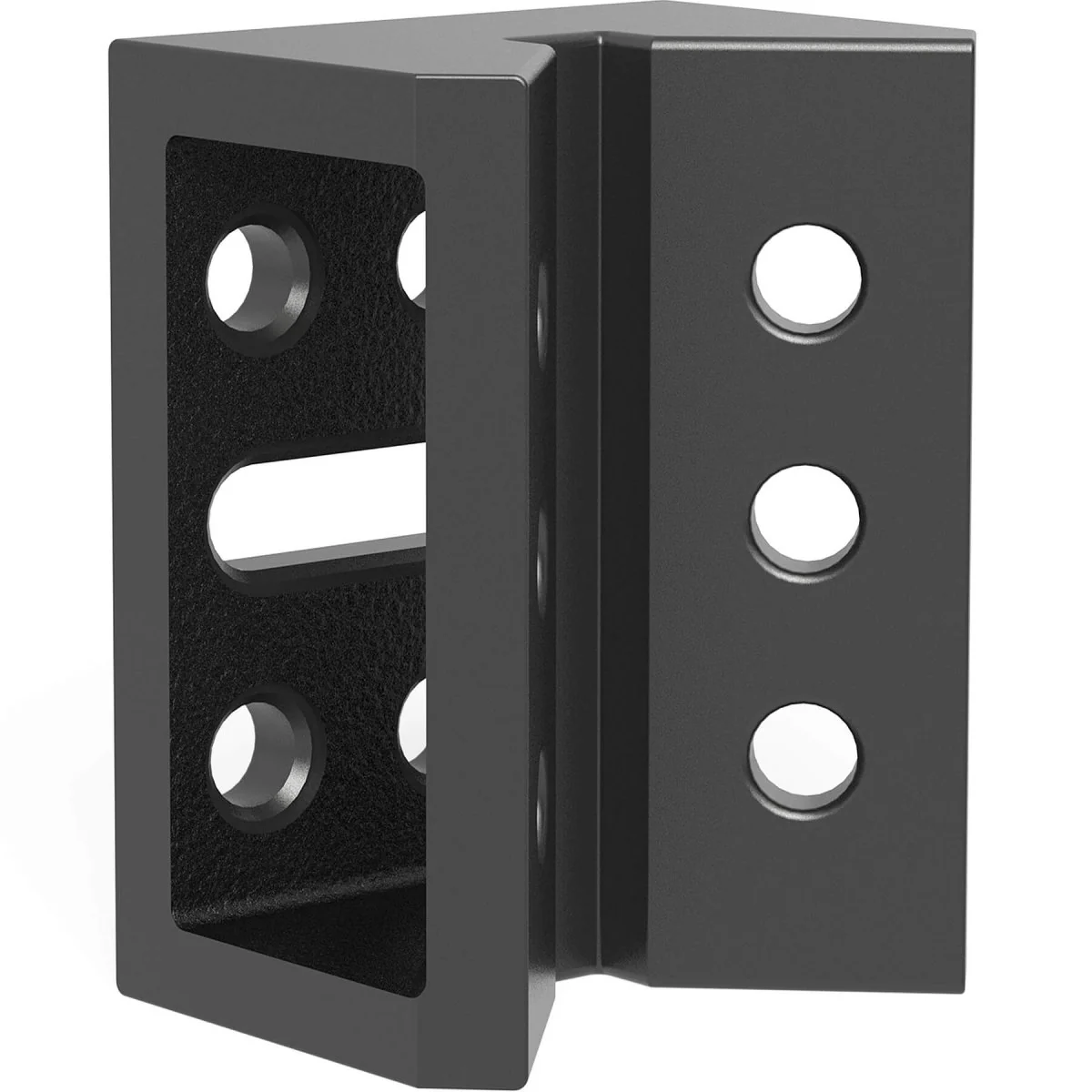

The Siegmund Corner Connection Small, Cast Iron Nitrided, expands workspace versatility by allowing precise diagonal or angular extensions on Siegmund System 22 tables. Compact yet robust, it delivers reliable 45° connections for complex welding, assembly, and fixturing setups.
- Manufactured from high-quality GGG40 ductile cast iron for superior strength and long service life.
- Provides a secure and stable method for extending tables or joining components.
- Acts as a prism, stop, or connector for multiple setup configurations.Nitrided surface resists corrosion, impact, and weld spatter.
- Compatible with all Siegmund System 22 clamping squares and accessories.
- Compact size enhances flexibility in tight workspaces.
Key Features:
- GGG40 ductile cast iron ensures rigidity and lasting durability.
- Nitrided finish prevents corrosion and surface damage.
- Provides reliable 45° diagonal connection capability.
- Compatible with all System 22 fixtures and accessories.
- Serves multiple roles: prism, stop, or connection piece.
- Compact, heavy-duty design ideal for modular setups.
Specifications:
- Series: Siegmund System 22 Metric Series
- Length: 200mm (7.87" Inches)
- Width: 150mm (5.91" Inches)
- Height: 115mm (4.53" Inches)
- Material: GGG40 Ductile Cast Iron, Plasma Nitrided
- Weight: 22.05 lbs. (10 kg.)
Common Uses:

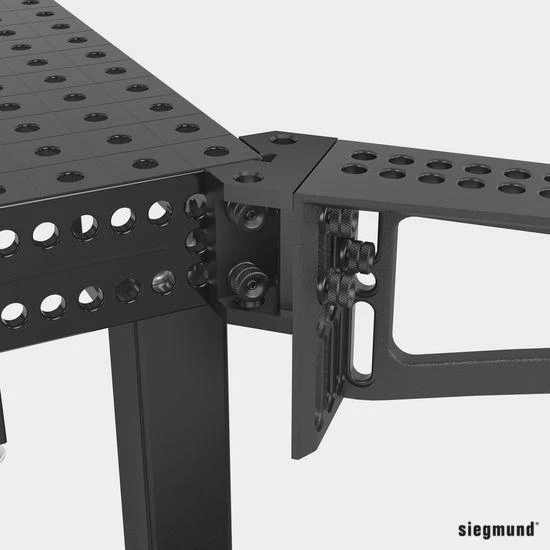

The Siegmund 2-220190.N Corner Connection Small provides stable angular and diagonal extensions for precision fixturing. It enables the assembly of complex workholding configurations while maintaining high rigidity and alignment accuracy. Ideal for use as a corner prism, right-angle connector, or structural stop in modular System 22 setups where space and precision are critical.
