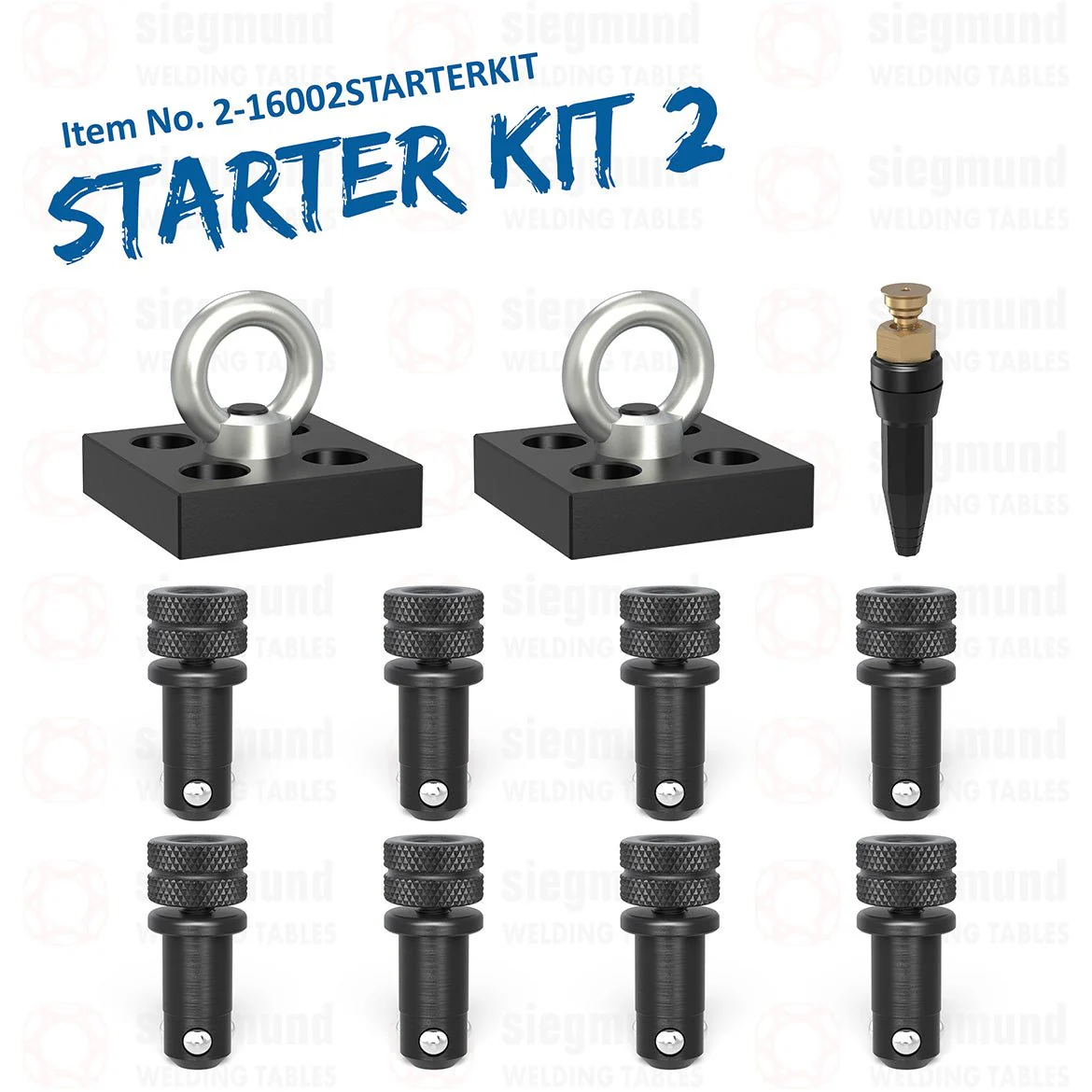

2-16002STARTERKIT: The Metric System 16 Dual
Bracket Starter Kit for 2,400 x 1,200mm Welding Tables
(11 Pieces)
Item no.: 2-16002STARTERKIT
\n
\n
2-160830
Quantity: 2
Comfort Shipping Bracket with Fastening Plate
\n
\n
The Shipping Bracket with fastening plate has a load capacity of 700 kg. It is used to move welding tables and other heavy Siegmund elements safely and easily. During transport, the table may not be raised more than 100 mm, and no one is permitted underneath the table.
Please consider following safety instructions:
1. Ring nuts should be completely bolted.
2. Ring nuts should bear flat and completely on support surface.
3. Length of mating thread has to be sufficient.
4. Lateral pull should be avoided.
- Item No. 2-160830
- Length: 100mm (3.93'')
- Width: 100mm (3.93'')
- Height: 25mm (0.98'')
- Weight: 5.8 Ibs.
\n
\n
2-160511
Quantity: 8
Fast Clamping Bolt without Double Slot (Burnished)
\n
This bolt comes without the slot for O-rings. This ensures a smooth surface of the bolt body. The fast clamping bolt with twistlock is the ideal connecting element between Siegmund components.
- Length: 53 mm (2.09\")
- Diameter: 16 mm (.63\")
- Shearing Force: 55 kN
- Tightening Torque Steel: 10 Nm
- Tightening Torque Aluminum: 2.5 Nm
- Tensile Force: 10 kN
- Weight: 0.18 lbs.
\n
\n
2-000810
Quantity: 1
Ground Connection Comfort
\n
\n
Ground Connection, guarantees 100% contact to the welding table, therefore no overheating is possible. Simple installation by fastening it in a system borehole. This Ground Connection is for structural welding only. Not recommended for thin materials (i.e. Sheet Metal).
This may not work for all applications.
- Load up to 500 ampere
- Cable cross section: 70-95 mm²
- Weigh: 1.45 Ibs.
2-16002STARTERKIT: The Metric System 16 Dual Lifting Bracket Starter Kit for 2,400 x 1,200mm Welding Tables
The Metric System 16 Single Bracket
Dual Kit for 2,400 x 1,200mm
System 16 Welding Tables
(11 Pieces)
Item no.: 2-16002STARTERKIT
2-160830
Quantity: 2
Comfort Shipping Bracket with Fastening Plate
The Shipping Bracket with fastening plate has a load capacity of 700 kg. It is used to move welding tables and other heavy Siegmund elements safely and easily. During transport, the table may not be raised more than 100 mm, and no one is permitted underneath the table.
Please consider following safety instructions:
1. Ring nuts should be completely bolted.
2. Ring nuts should bear flat and completely on support surface.
3. Length of mating thread has to be sufficient.
4. Lateral pull should be avoided.
- Item No. 2-160830
- Length: 100mm (3.93'')
- Width: 100mm (3.93'')
- Height: 25mm (0.98'')
- Weight: 5.8 Ibs.
2-160511
Quantity: 8
Fast Clamping Bolt without Double Slot (Burnished)
This bolt comes without the slot for O-rings. This ensures a smooth surface of the bolt body. The fast clamping bolt with twistlock is the ideal connecting element between Siegmund components.
- Length: 53 mm (2.09")
- Diameter: 16 mm (.63")
- Shearing Force: 55 kN
- Tightening Torque Steel: 10 Nm
- Tightening Torque Aluminum: 2.5 Nm
- Tensile Force: 10 kN
- Weight: 0.18 lbs.
2-000810
Quantity: 1
Ground Connection Comfort
Ground Connection, guarantees 100% contact to the welding table, therefore no overheating is possible. Simple installation by fastening it in a system borehole. This Ground Connection is for structural welding only. Not recommended for thin materials (i.e. Sheet Metal).
This may not work for all applications.
- Load up to 500 ampere
- Cable cross section: 70-95 mm²
- Weigh: 1.45 Ibs.
$311.50
Original: $890.00
-65%2-16002STARTERKIT: The Metric System 16 Dual Lifting Bracket Starter Kit for 2,400 x 1,200mm Welding Tables—
$890.00
$311.50Product Information
